Here you will find all available parts and drawings of the 'Bosch 0603944660 ( PSR960 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

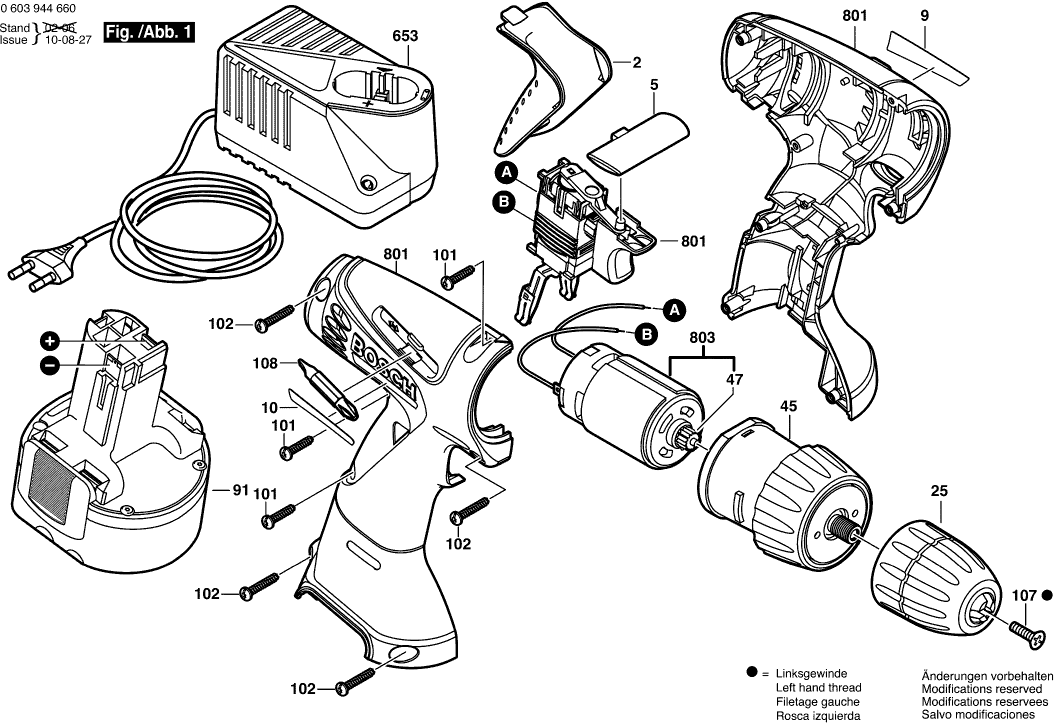

Technical drawing of model Bosch 0603944660 ( PSR960 )
Spare parts list of model Bosch 0603944660 ( PSR960 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cap-Handle | ||||
| 2 | 2609100162 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 4 | 2607200425 | |||
| Reverse-Transfer Lever | ||||
| 5 | 2609100634 | 1.18 | 1.43 | |
| Reference Plate | ||||
| 9 | 2609130451 | 2.71 | 3.28 | |
| Nameplate | ||||
| 10 | 2609130454 | 2.71 | 3.28 | |
| Keyless Chuck | ||||
| 25 | 2609110278 | 40.61 | 49.14 | |
| Gear Box | ||||
| 45 | 2609199215 | 13.93 | 16.86 | |
| Pinion | ||||
| 47 | 2609110097 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 91 | 2607335461 | |||
| Torx Oval-Head Screw | ||||
| 101 | 2609110190 | 0.83 | 1.00 | |
| Torx Oval-Head Screw | ||||
| 102 | 2609110080 | 1.18 | 1.43 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Screwdriver Blade 6 MM | ||||
| 108 | 1609200147 | 2.71 | 3.28 | |
| Fast Charger USA 120/7,2-14,4V, 1h | ||||
| 653 | 2607224397 | 73.72 | 89.20 | |
| Fast Charger J 100/7,2-14,4V, 1h | ||||
| 653 | 2607224399 | 55.25 | 66.85 | |
| Charger AUS 240/14,4V, 3-5h | ||||
| 653 | 2607225015 | 12.41 | 15.02 | |
| Housing | ||||
| 801 | 2609199242 | 18.19 | 22.01 | |
| No longer available, no replacement | ||||
| 803 | 2609120152 | |||
