Here you will find all available parts and drawings of the 'Bosch 3603J51300 ( PSR18-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

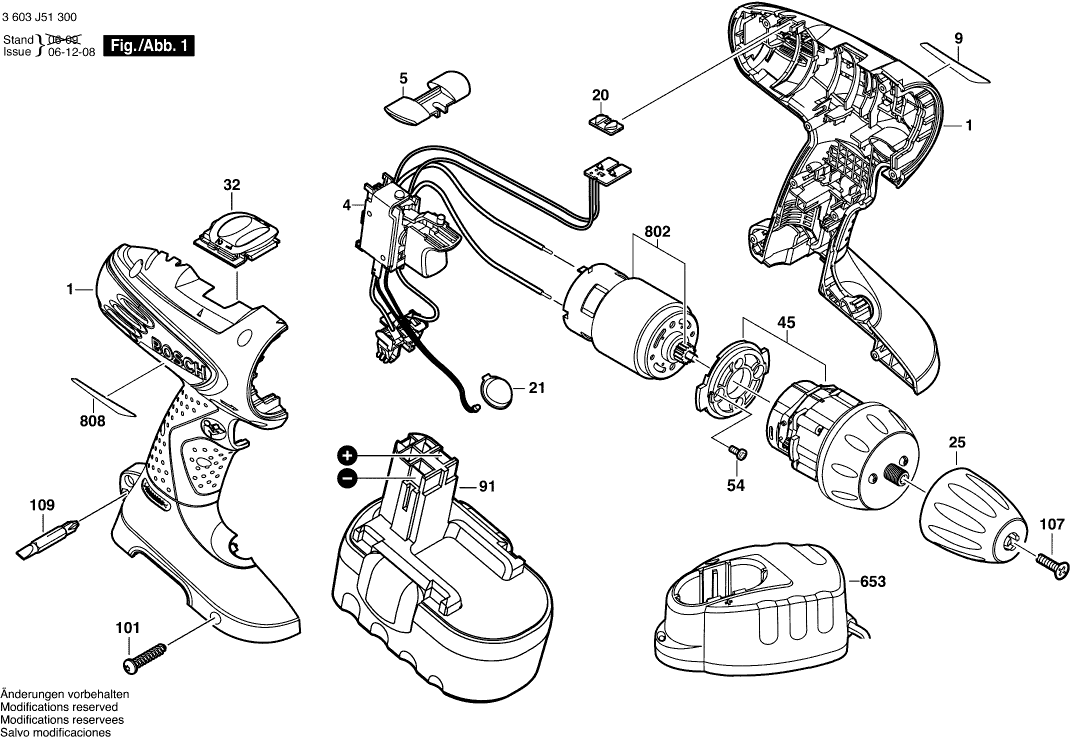

Technical drawing of model Bosch 3603J51300 ( PSR18-2 )
Spare parts list of model Bosch 3603J51300 ( PSR18-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100510 | 20.42 | 24.71 | |
| On-Off Switch | ||||
| 4 | 2609120272 | 26.84 | 32.48 | |
| Adjusting Slide RED | ||||
| 5 | 2601099096 | 1.70 | 2.06 | |
| Manufacturer's nameplate PSR 18-2 | ||||
| 9 | 2609131358 | 0.83 | 1.00 | |
| Lens PLEXIGLASS 8N | ||||
| 20 | 2609100257 | 1.18 | 1.43 | |
| Lens | ||||
| 21 | 2609100513 | 1.70 | 2.06 | |
| Keyless Chuck | ||||
| 25 | 2609110686 | 40.61 | 49.14 | |
| Change-Over Switch | ||||
| 32 | 2609199124 | 1.70 | 2.06 | |
| Planetary Gear Train | ||||
| 45 | 2606200488 | 44.82 | 54.23 | |
| Torx SH cap screw M4x8-4,8-Z | ||||
| 54 | 2603414049 | 1.18 | 1.43 | |
| Slide-In Accu Package 18V, 1,5Ah, NiCd | ||||
| 91 | 2607335535 | 130.32 | 157.69 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 653 | 2607224427 | 91.56 | 110.79 | |
| DC motor 18V | ||||
| 802 | 2609199139 | 36.85 | 44.59 | |
| Nameplate | ||||
| 808 | 2609131352 | 0.83 | 1.00 | |
