Here you will find all available parts and drawings of the 'Bosch 0603944460 (PSR1440)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

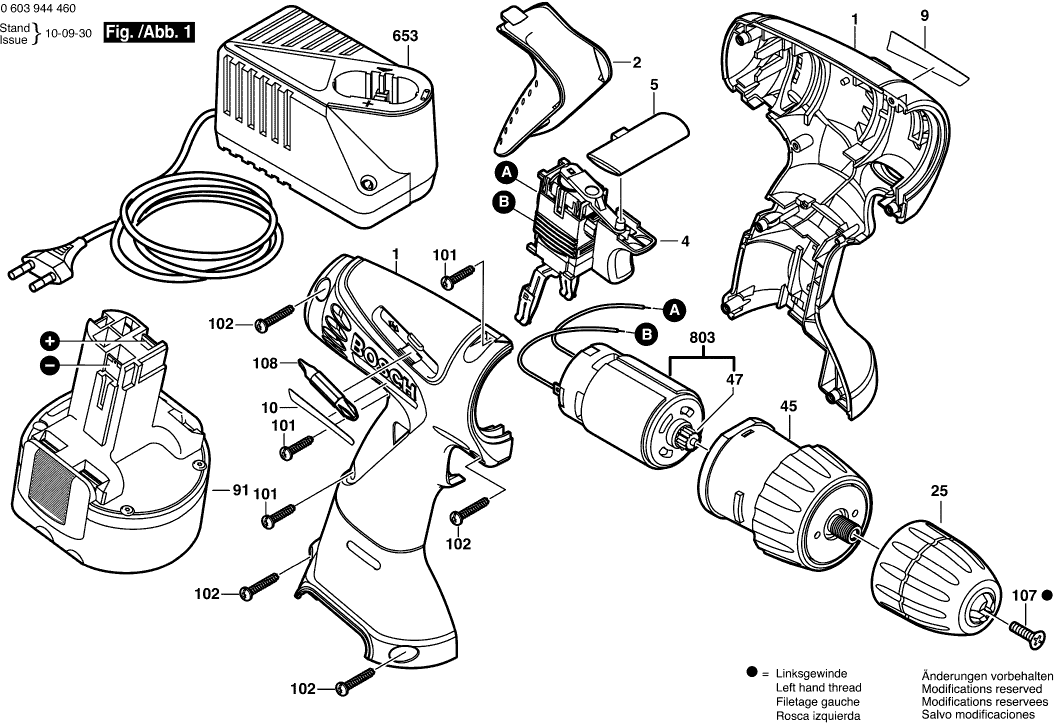

Technical drawing of model Bosch 0603944460 (PSR1440)
Spare parts list of model Bosch 0603944460 (PSR1440)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2609100154 | |||
| Cap-Handle | ||||
| 2 | 2609100162 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 4 | 2607200425 | |||
| Reverse-Transfer Lever | ||||
| 5 | 2609100634 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 9 | 2609130453 | 3.44 | 4.16 | |
| Nameplate | ||||
| 10 | 2609130456 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 25 | 2609110278 | |||
| Gear Box | ||||
| 45 | 2609199215 | 16.79 | 20.32 | |
| Pinion | ||||
| 47 | 2609110097 | 2.08 | 2.52 | |
| Slide-In Accu Package | ||||
| 91 | 2607335275 | 122.80 | 148.59 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110190 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 102 | 2609110080 | 1.49 | 1.80 | |
| Countersunk-Head Screw | ||||
| 107 | 2609110721 | 2.08 | 2.52 | |
| Screwdriver Blade | ||||
| 108 | 1609200147 | 3.44 | 4.16 | |
| Fast Charger | ||||
| 653 | 2607224395 | 98.18 | 118.80 | |
| Fast Charger | ||||
| 653 | 2607224397 | 88.83 | 107.48 | |
| Fast Charger | ||||
| 653 | 2607224399 | 64.67 | 78.25 | |
| Charger | ||||
| 653 | 2607225015 | 14.94 | 18.08 | |
| DC motor | ||||
| 803 | 2609120084 | 21.30 | 25.77 | |
