Here you will find all available parts and drawings of the 'Bosch 0603937403 (PSR14,4VE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

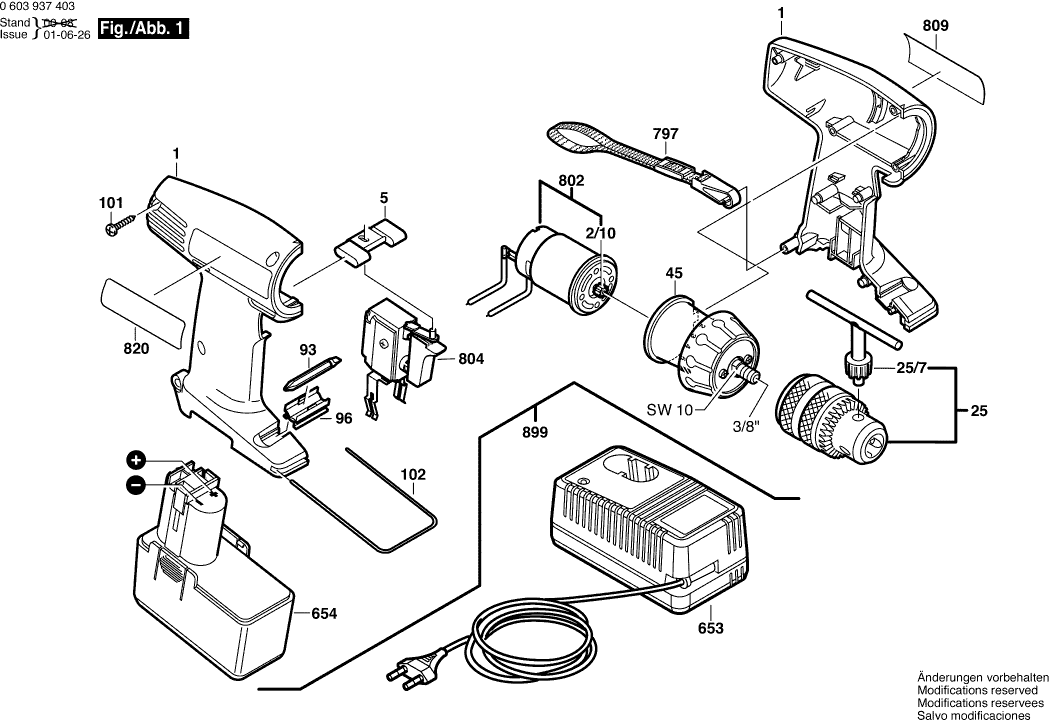

Technical drawing of model Bosch 0603937403 (PSR14,4VE)
Spare parts list of model Bosch 0603937403 (PSR14,4VE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104578 | 12.82 | 15.51 | |
| Pinion | ||||
| 2/10 | 2606316164 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 5 | 2601099055 | |||
| No longer available, no replacement | ||||
| 25 | 1608571047 | |||
| Chuck Wrench | ||||
| 25/7 | 2607950007 | 6.73 | 8.14 | |
| Planetary Gear Train | ||||
| 45 | 2606200054 | 27.81 | 33.65 | |
| Screwdriver Blade | ||||
| 93 | 1609200147 | 3.44 | 4.16 | |
| Support | ||||
| 96 | 2608040079 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 101 | 2603490018 | 1.00 | 1.21 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 653 | 2607225011 | |||
| Slide-In Accu Package | ||||
| 654 | 2607335173 | 98.18 | 118.80 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| No longer available, no replacement | ||||
| 802 | 2607022952 | |||
| On-Off Switch | ||||
| 804 | 2607200353 | 58.03 | 70.22 | |
| Manufacturer's nameplate | ||||
| 809 | 2601119154 | 3.44 | 4.16 | |
| Reference Plate | ||||
| 820 | 2601119155 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 899 | 0603937420 | |||
