Here you will find all available parts and drawings of the 'Bosch 3603J54300 ( PSR14,4LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

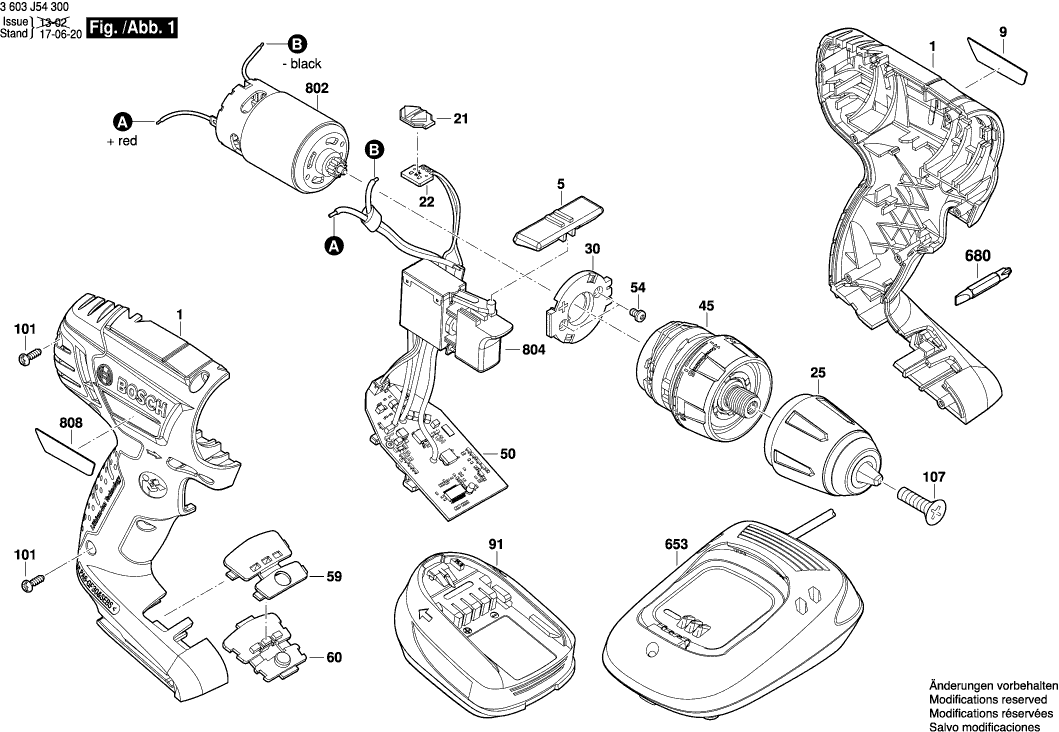

Technical drawing of model Bosch 3603J54300 ( PSR14,4LI )
Spare parts list of model Bosch 3603J54300 ( PSR14,4LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609004982 | 23.75 | 28.74 | |
| Lever | ||||
| 5 | 2609004983 | 1.18 | 1.43 | |
| Manufacturer's nameplate X144 SR | ||||
| 9 | 161111C04S | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 14,4 LI | ||||
| 9 | 2609005173 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 1400 LI | ||||
| 9 | 2609007438 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 1440 LI | ||||
| 9 | 2609007643 | 1.94 | 2.35 | |
| Lens | ||||
| 21 | 2609002598 | 0.83 | 1.00 | |
| Electronic Assembly | ||||
| 22 | 2609005142 | 4.10 | 4.96 | |
| Keyless Chuck | ||||
| 25 | 2609004498 | 33.45 | 40.47 | |
| Flange | ||||
| 30 | 2609005196 | 1.18 | 1.43 | |
| Gear Box | ||||
| 45 | 1600A00Y69 | 29.75 | 36.00 | |
| Electronic Assembly | ||||
| 50 | 1600A009B5 | 44.82 | 54.23 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Cover | ||||
| 59 | 2609004985 | 1.94 | 2.35 | |
| Lens | ||||
| 60 | 2609004984 | 1.94 | 2.35 | |
| Battery Pack PBA 14,4V 1,5Ah W-A SCM | ||||
| 91 | 2607337181 | 60.65 | 73.39 | |
| Torx Oval-Head Screw 3x10 | ||||
| 101 | 2603490017 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Fast Charger EU AL 2215 CV 230/14,4-18V, 1h | ||||
| 653 | 2607225471 | 55.25 | 66.85 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Screwdriver Bit | ||||
| 680 | 2609160063 | 2.71 | 3.28 | |
| DC motor 14,4V - 18V | ||||
| 802 | 2609005257 | 29.75 | 36.00 | |
| Switch | ||||
| 804 | 2609005666 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 160111A2CM | 1.70 | 2.06 | |
