Here you will find all available parts and drawings of the 'Bosch 3603J73400 ( PSR14,4LI-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

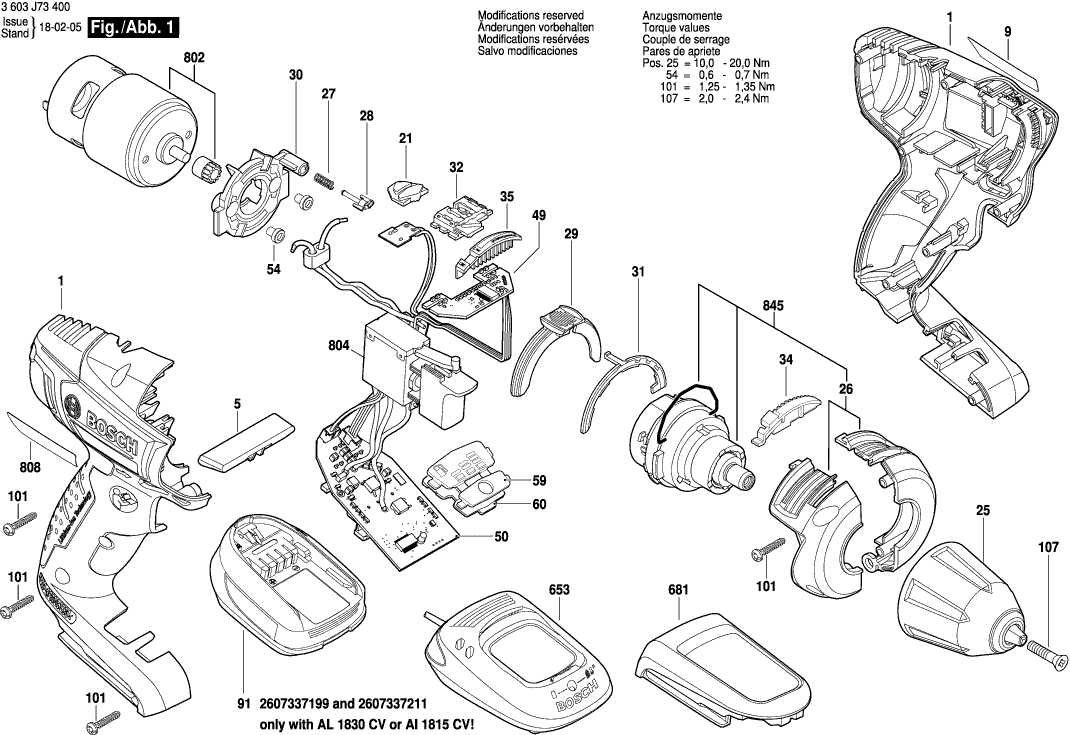

Technical drawing of model Bosch 3603J73400 ( PSR14,4LI-2 )
Spare parts list of model Bosch 3603J73400 ( PSR14,4LI-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing GREEN | ||||
| 1 | 2609004253 | 20.42 | 24.71 | |
| Lever | ||||
| 5 | 2609004264 | 1.70 | 2.06 | |
| Manufacturer's nameplate PSR 14,4 LI-2 | ||||
| 9 | 2609004627 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 1440 LI-2 | ||||
| 9 | 2609006137 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 144 LI-2 | ||||
| 9 | 2609007114 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR Universal+LI-2 | ||||
| 9 | 160111C0J0 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 144 LI-8 | ||||
| 9 | 2609007570 | 1.94 | 2.35 | |
| Lens | ||||
| 21 | 2609004270 | 1.18 | 1.43 | |
| Keyless Chuck | ||||
| 25 | 2609006385 | 33.45 | 40.47 | |
| Housing Cover | ||||
| 26 | 2609004255 | 3.31 | 4.01 | |
| Spring | ||||
| 27 | 2609004265 | 1.70 | 2.06 | |
| Lever | ||||
| 28 | 2609004275 | 1.18 | 1.43 | |
| Slider | ||||
| 29 | 2609004262 | 1.94 | 2.35 | |
| Flange | ||||
| 30 | 2609004266 | 1.70 | 2.06 | |
| Adjusting Disc | ||||
| 31 | 2609004263 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 32 | 2609004485 | 5.83 | 7.05 | |
| Cover | ||||
| 34 | 2609004613 | 1.18 | 1.43 | |
| Display | ||||
| 35 | 2609004273 | 1.70 | 2.06 | |
| Electronic Assembly | ||||
| 49 | 2609003876 | 36.85 | 44.59 | |
| Electronic Assembly | ||||
| 50 | 2609003873 | 40.61 | 49.14 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Cover | ||||
| 59 | 2609004272 | 1.18 | 1.43 | |
| Lens | ||||
| 60 | 2609004271 | 0.83 | 1.00 | |
| Battery Pack PBA 14,4 V 2,5 Ah | ||||
| 91 | 2607337193 | 81.47 | 98.58 | |
| Battery Pack PBA 14,4V 1,5Ah W-A SCM | ||||
| 91 | 2607337181 | 60.65 | 73.39 | |
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Fast Charger EU AL 2215 CV 230/14,4-18V, 1h | ||||
| 653 | 2607225471 | 55.25 | 66.85 | |
| Charger AUS AL 2215 CV 240/14,4-18V, 1h | ||||
| 653 | 2607225475 | 44.82 | 54.23 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Battery Holder für 14,4/18V | ||||
| 681 | 1600A007ST | 49.56 | 59.97 | |
| DC motor 14,4V | ||||
| 802 | 2609004486 | 33.45 | 40.47 | |
| Switch | ||||
| 804 | 2609005122 | 20.42 | 24.71 | |
| Nameplate | ||||
| 808 | 160111A2CP | 1.94 | 2.35 | |
| Planetary Gear Train | ||||
| 845 | 2609007548 | 29.75 | 36.00 | |
