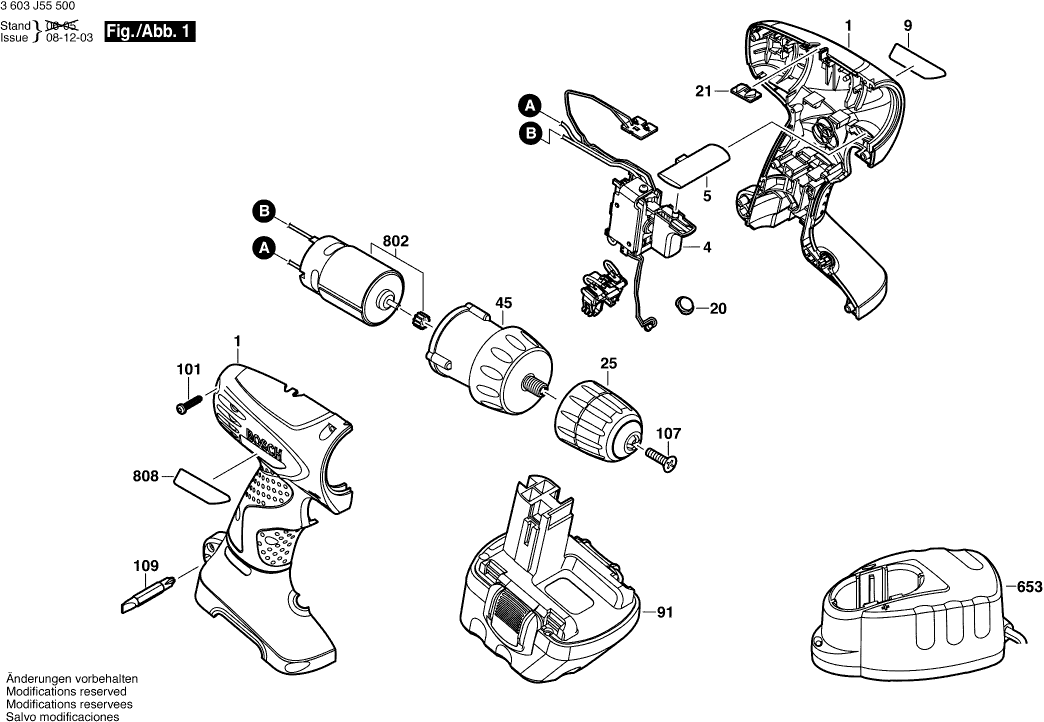

Technical drawing of model Bosch 3603J55500 ( PSR12 )
Spare parts list of model Bosch 3603J55500 ( PSR12 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100464 | 18.19 | 22.01 | |
| On-Off Switch | ||||
| 4 | 2609120455 | 23.75 | 28.74 | |
| Change-Over Switch | ||||
| 5 | 2609100482 | 1.18 | 1.43 | |
| Manufacturer's nameplate PSR 1-12 | ||||
| 9 | 2609131507 | 1.94 | 2.35 | |
| Lens | ||||
| 20 | 2609100471 | 0.83 | 1.00 | |
| Lens PLEXIGLASS 8N | ||||
| 21 | 2609100257 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 25 | 2609110565 | |||
| Planetary Gear Train | ||||
| 45 | 2609110564 | 33.45 | 40.47 | |
| Slide-In Accu Package 12V, 1,2Ah, NiCd | ||||
| 91 | 2607335273 | 101.94 | 123.35 | |
| Torx Oval-Head Screw | ||||
| 101 | 2609110236 | 0.83 | 1.00 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 1h | ||||
| 653 | 2607224395 | 81.47 | 98.58 | |
| No longer available, no replacement | ||||
| 802 | 1619X07801 | |||
| Nameplate | ||||
| 808 | 2609135937 | 1.94 | 2.35 | |
