Here you will find all available parts and drawings of the 'Bosch 0603943520 ( PSR12VE-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

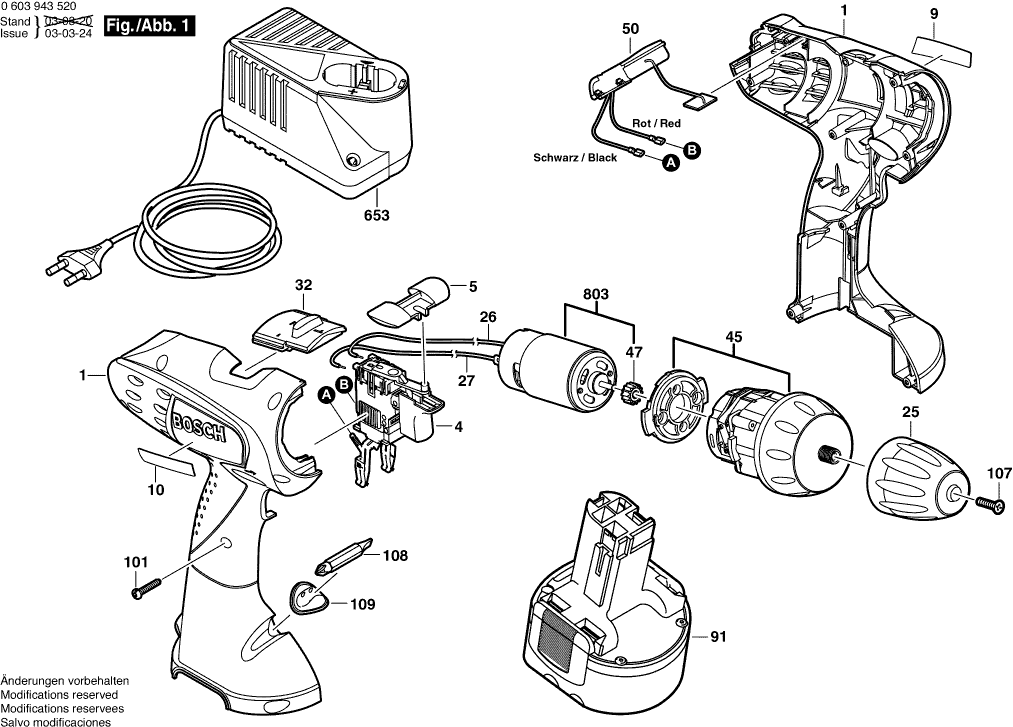

Technical drawing of model Bosch 0603943520 ( PSR12VE-2 )
Spare parts list of model Bosch 0603943520 ( PSR12VE-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2609100205 | |||
| No longer available, no replacement | ||||
| 4 | 2607200474 | |||
| Adjusting Slide RED | ||||
| 5 | 2601099096 | 1.70 | 2.06 | |
| Reference Plate PSR 12 VE-2 | ||||
| 9 | 2609130567 | 2.71 | 3.28 | |
| Nameplate | ||||
| 10 | 2609130569 | 2.71 | 3.28 | |
| Keyless Chuck | ||||
| 25 | 2608572197 | 33.45 | 40.47 | |
| Connecting Cable | ||||
| 26 | 2609120086 | 1.18 | 1.43 | |
| Connecting Cable | ||||
| 27 | 2609120108 | 1.18 | 1.43 | |
| Servo Unit | ||||
| 32 | 2608040212 | 2.24 | 2.71 | |
| Gear Box | ||||
| 45 | 2606200166 | 40.61 | 49.14 | |
| No longer available, no replacement | ||||
| 47 | 2606316161 | |||
| Indicator Unit | ||||
| 50 | 2607230090 | 33.45 | 40.47 | |
| Slide-In Accu Package 12V, 1,5Ah, NiCd | ||||
| 91 | 1617S00N7F | 101.94 | 123.35 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Toolholder | ||||
| 108 | 2607001443 | 1.70 | 2.06 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224705 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224703 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-24V, 1h | ||||
| 653 | 2607224427 | 91.56 | 110.79 | |
| DC motor 12V | ||||
| 803 | 2609120106 | 23.75 | 28.74 | |
