Here you will find all available parts and drawings of the 'Bosch 3603J51501 ( PSR12-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

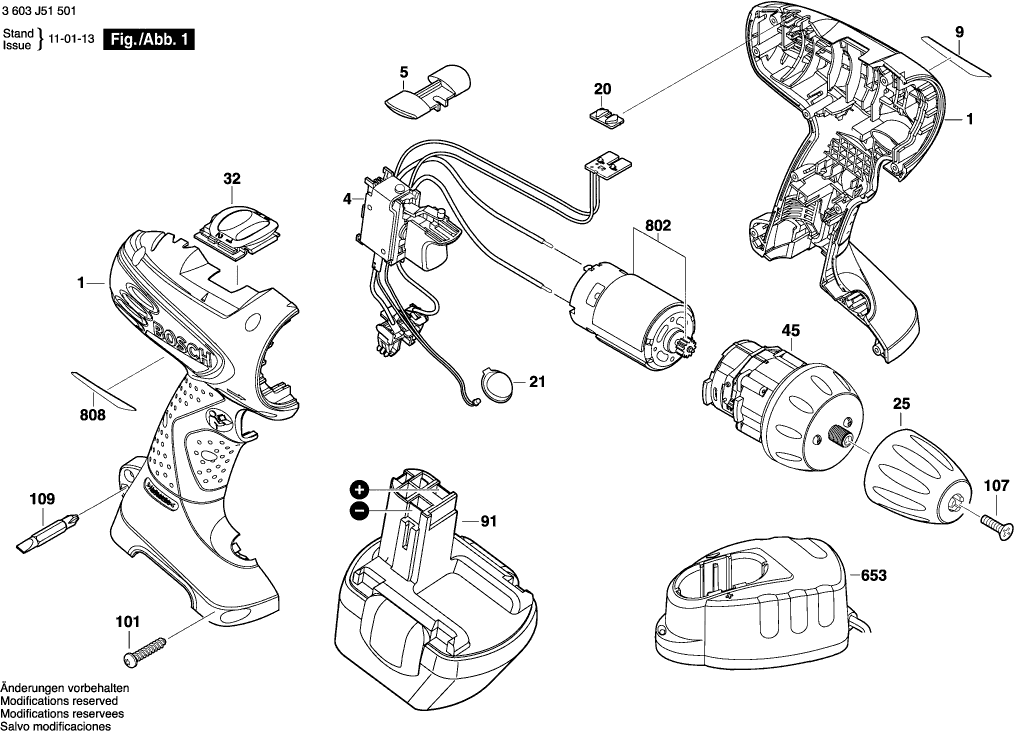

Technical drawing of model Bosch 3603J51501 ( PSR12-2 )
Spare parts list of model Bosch 3603J51501 ( PSR12-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609100508 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 4 | 2609120270 | |||
| Adjusting Slide RED | ||||
| 5 | 2601099096 | 1.70 | 2.06 | |
| Manufacturer's nameplate PSR 12-2 | ||||
| 9 | 2609131356 | 0.83 | 1.00 | |
| Lens PLEXIGLASS 8N | ||||
| 20 | 2609100257 | 1.18 | 1.43 | |
| Lens | ||||
| 21 | 2609100513 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 25 | 2609110668 | |||
| Change-Over Switch | ||||
| 32 | 2609199124 | 1.70 | 2.06 | |
| Gear Box | ||||
| 45 | 2606200166 | 40.61 | 49.14 | |
| Slide-In Accu Package 12V, 1,5Ah, NiCd | ||||
| 91 | 1617S00N7F | 101.94 | 123.35 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Screwdriver Bit | ||||
| 109 | 2609160063 | 2.71 | 3.28 | |
| Fast Charger GB 230/7,2-14,4V, 1h | ||||
| 653 | 2607224393 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224705 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 1h | ||||
| 653 | 2607224391 | 55.25 | 66.85 | |
| No longer available, no replacement | ||||
| 802 | 2609199137 | |||
| Nameplate | ||||
| 808 | 2609004569 | 1.94 | 2.35 | |
