Here you will find all available parts and drawings of the 'Bosch 3603JA2100 ( PSR1080LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

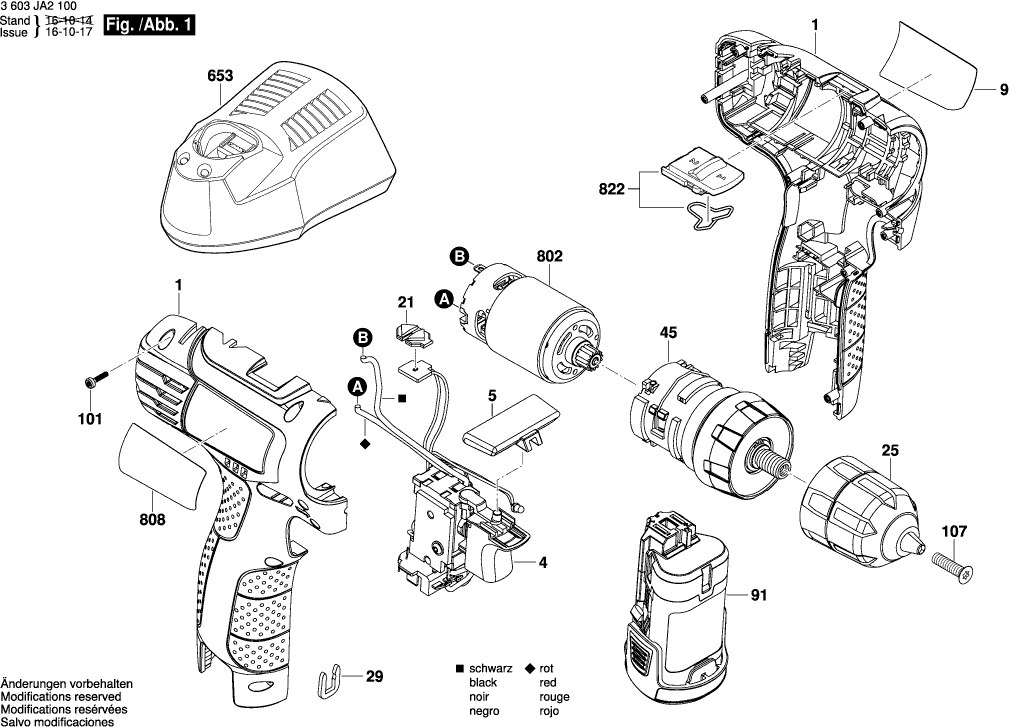

Technical drawing of model Bosch 3603JA2100 ( PSR1080LI )
Spare parts list of model Bosch 3603JA2100 ( PSR1080LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 160580658Y | 12.41 | 15.02 | |
| Electronics Module | ||||
| 4 | 1600A00A4A | 49.56 | 59.97 | |
| Changeover Lever | ||||
| 5 | 1600A00729 | 1.18 | 1.43 | |
| Manufacturer's nameplate PSR 1080 LI | ||||
| 9 | 160111C0AK | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR Easy LI-2 | ||||
| 9 | 160111C0SU | 1.94 | 2.35 | |
| Manufacturer's nameplate PSR 1200 LI-2 | ||||
| 9 | 160111C110 | 1.94 | 2.35 | |
| Lens | ||||
| 21 | 2609002598 | 0.83 | 1.00 | |
| Keyless Chuck | ||||
| 25 | 1600A00B72 | 19.23 | 23.27 | |
| Keyless Chuck | ||||
| 25 | 1600A0103P | 18.19 | 22.01 | |
| Clip | ||||
| 29 | 2609004706 | 0.83 | 1.00 | |
| Gear Box | ||||
| 45 | 1600A008WF | 26.84 | 32.48 | |
| Battery Pack PBA 10,8V 2 Ah O-A LI | ||||
| 91 | 1607A3503R | 73.72 | 89.20 | |
| Battery Pack PBA 12V, 2,0Ah O-A | ||||
| 91 | 1607A3507N | 60.65 | 73.39 | |
| Screw | ||||
| 101 | 2609110361 | 0.83 | 1.00 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Fast Charger Korea GAL 12V-20 | ||||
| 653 | 2607226409 | 26.84 | 32.48 | |
| Fast Charger GB 230V/12V | ||||
| 653 | 1600A00M6R | 26.84 | 32.48 | |
| Fast Charger EU GAL 1210 CV 230/12V 1A | ||||
| 653 | 1600A00HR1 | 23.75 | 28.74 | |
| Motor assembly | ||||
| 802 | 1600A00JN9 | 18.19 | 22.01 | |
| Nameplate | ||||
| 808 | 160111A56C | 1.94 | 2.35 | |
| Switchover Unit | ||||
| 822 | 1600A00R9E | 4.10 | 4.96 | |
