Here you will find all available parts and drawings of the 'Bosch 3603JA2000 ( PSR1080LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

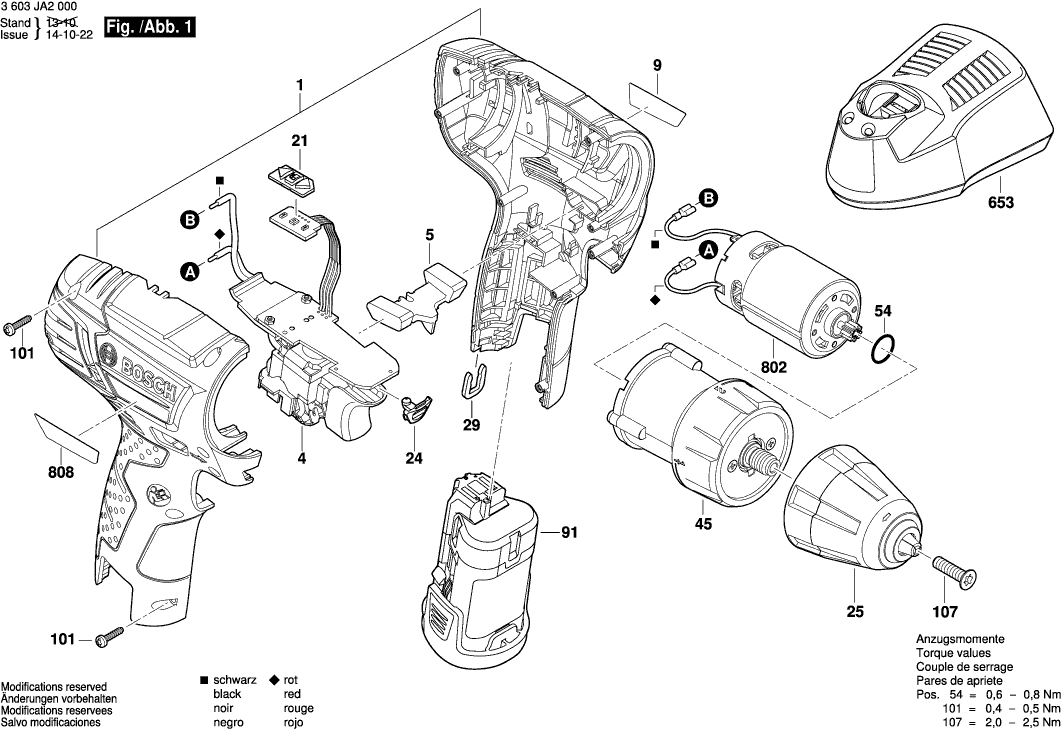

Technical drawing of model Bosch 3603JA2000 ( PSR1080LI )
Spare parts list of model Bosch 3603JA2000 ( PSR1080LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609006766 | 11.88 | 14.37 | |
| Electronic Module | ||||
| 4 | 1607233537 | 44.82 | 54.23 | |
| Changeover Lever | ||||
| 5 | 2609007021 | 1.70 | 2.06 | |
| Manufacturer's nameplate PSR 1080 LI | ||||
| 9 | 2609007231 | 1.94 | 2.35 | |
| Manufacturer's nameplate X108 SR | ||||
| 9 | 161111C04P | 1.94 | 2.35 | |
| Lens | ||||
| 21 | 2609002864 | 1.18 | 1.43 | |
| Lens | ||||
| 24 | 2609004497 | 0.83 | 1.00 | |
| Keyless Chuck | ||||
| 25 | 2609007166 | 23.75 | 28.74 | |
| Clip | ||||
| 29 | 2609004706 | 0.83 | 1.00 | |
| Gear Box | ||||
| 45 | 2609007583 | 26.84 | 32.48 | |
| O-Ring 12,0x2,0 MM | ||||
| 54 | 1610210135 | 2.24 | 2.71 | |
| Battery Pack PBA 12V, 2,0Ah O-A | ||||
| 91 | 1607A3507N | 60.65 | 73.39 | |
| Screw | ||||
| 101 | 2609110361 | 0.83 | 1.00 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Fast Charger | ||||
| 653 | 2607225517 | 42.20 | 51.06 | |
| Charger EU AL1105CV | ||||
| 653 | 2607225649 | 40.61 | 49.14 | |
| Charger GB 230V 3,6-10,8V 3h | ||||
| 653 | 2607225651 | 40.61 | 49.14 | |
| Fast Charger AUS GAL 12V-20 240/3,6-12V 2A | ||||
| 653 | 2607226191 | 26.84 | 32.48 | |
| DC motor 10,8V | ||||
| 802 | 2609007228 | 18.19 | 22.01 | |
| Nameplate | ||||
| 808 | 2609007232 | 1.94 | 2.35 | |
