Here you will find all available parts and drawings of the 'Bosch 3603J54000 ( PSR10,8LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

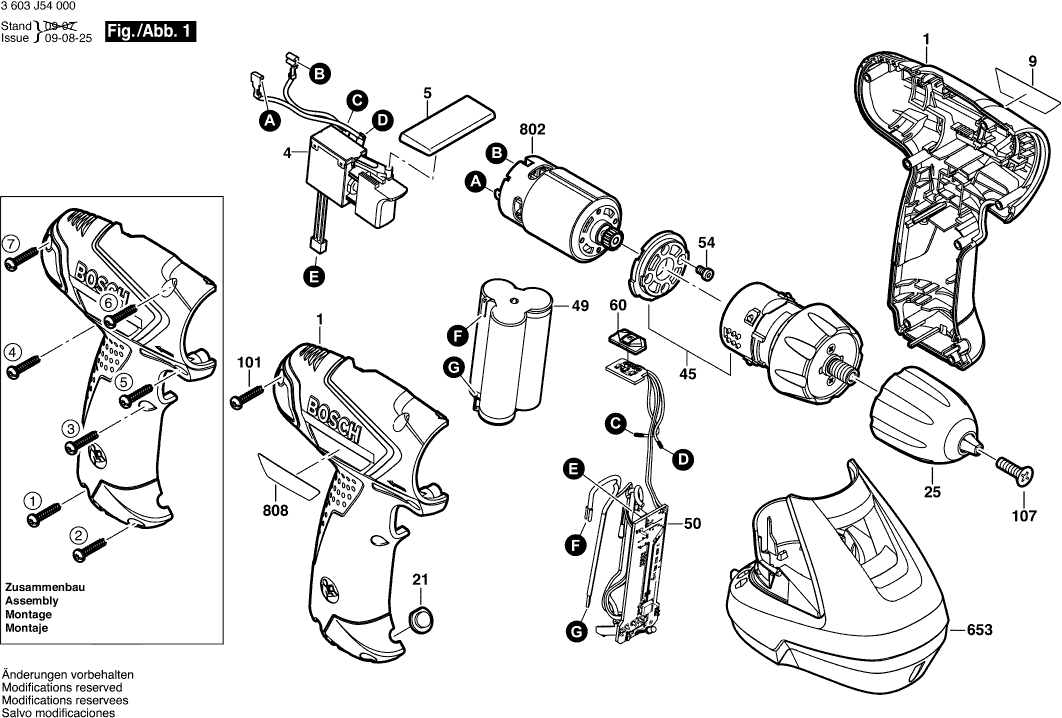

Technical drawing of model Bosch 3603J54000 ( PSR10,8LI )
Spare parts list of model Bosch 3603J54000 ( PSR10,8LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2609002541 | |||
| On-Off Switch | ||||
| 4 | 2607202050 | 9.53 | 11.53 | |
| Adjusting Slide | ||||
| 5 | 2609002542 | 0.83 | 1.00 | |
| Manufacturer's nameplate PSR 10,8 LI | ||||
| 9 | 2609002546 | 1.94 | 2.35 | |
| Lens | ||||
| 21 | 2609002543 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 25 | 2609002460 | |||
| Gear Box | ||||
| 45 | 2609002461 | 36.85 | 44.59 | |
| Battery Set 10,8V | ||||
| 49 | 2609002571 | 55.25 | 66.85 | |
| Electronic Assembly | ||||
| 50 | 2609003137 | 44.82 | 54.23 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Lens | ||||
| 60 | 2609002864 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 3x18 | ||||
| 101 | 2603490018 | 0.83 | 1.00 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 653 | 2607225489 | |||
| DC motor 10,8V | ||||
| 802 | 2609002620 | 23.75 | 28.74 | |
| Nameplate | ||||
| 808 | 2609002545 | 1.94 | 2.35 | |
