Here you will find all available parts and drawings of the 'Bosch 0603266003 ( PSP70 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

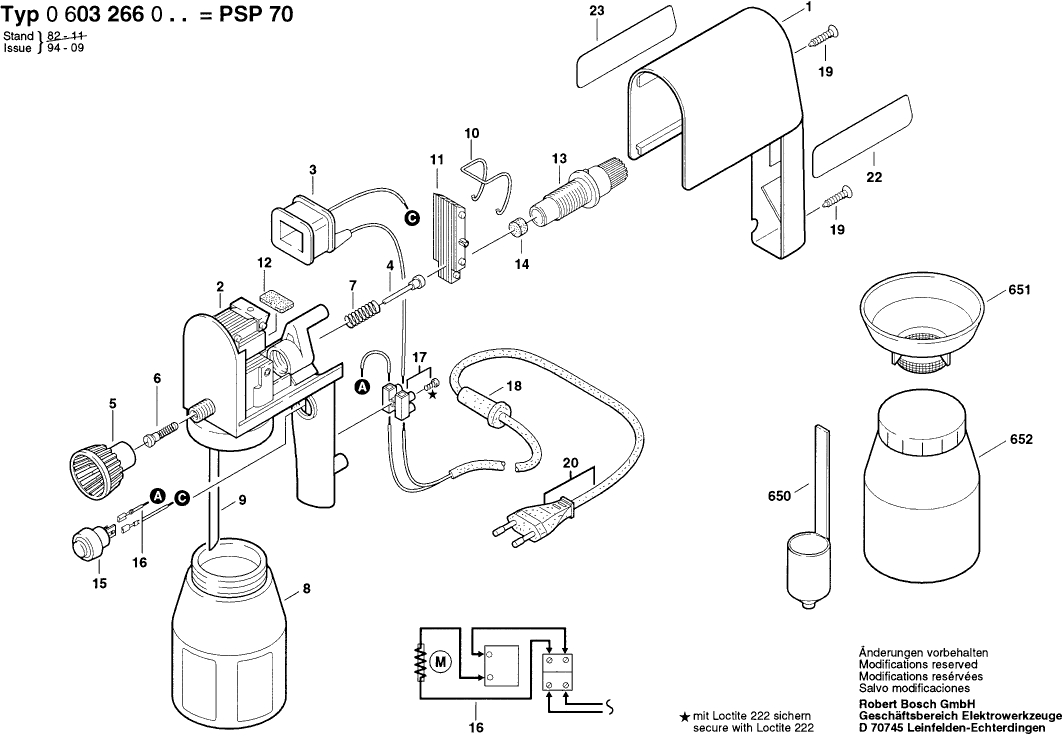

Technical drawing of model Bosch 0603266003 ( PSP70 )
Spare parts list of model Bosch 0603266003 ( PSP70 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1609390362 | |||
| Pump Housing | ||||
| 2 | 1609390361 | 40.61 | 49.14 | |
| No longer available, no replacement | ||||
| 3 | 1609390363 | |||
| Pump piston | ||||
| 4 | 1609390364 | 5.83 | 7.05 | |
| Cylindrical-Spray Nozzle | ||||
| 5 | 1609390365 | 10.73 | 12.98 | |
| Vacuum/Pressure Valve | ||||
| 6 | 1609390366 | 5.83 | 7.05 | |
| Compression Spring | ||||
| 7 | 1609390367 | 2.24 | 2.71 | |
| Paint Beaker | ||||
| 8 | 1609390368 | 6.54 | 7.91 | |
| Suction Pipe | ||||
| 9 | 1609390369 | 1.94 | 2.35 | |
| Holding Spring | ||||
| 10 | 1609390370 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 11 | 1609390371 | |||
| No longer available, no replacement | ||||
| 12 | 1609390372 | |||
| Adjusting Screw | ||||
| 13 | 1609390373 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 14 | 1609390044 | |||
| On-Off Switch | ||||
| 15 | 1609390374 | 15.71 | 19.01 | |
| Cable | ||||
| 16 | 1609390360 | 3.31 | 4.01 | |
| connecting terminal 2-POLE | ||||
| 17 | 1609390042 | 1.18 | 1.43 | |
| Grommet | ||||
| 18 | 1609390048 | 1.94 | 2.35 | |
| Tapping Screw DIN 7972-BZ3,9x16 | ||||
| 19 | 2910601119 | 0.83 | 1.00 | |
| Power supply cord | ||||
| 20 | 1609390043 | 13.93 | 16.86 | |
| Reference Plate | ||||
| 22 | 1601110237 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 650 | 1609390375 | |||
| No longer available, no replacement | ||||
| 651 | 1609390376 | |||
| No longer available, no replacement | ||||
| 652 | 1609390378 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
