Here you will find all available parts and drawings of the 'Bosch 0603260903 (PSP250)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

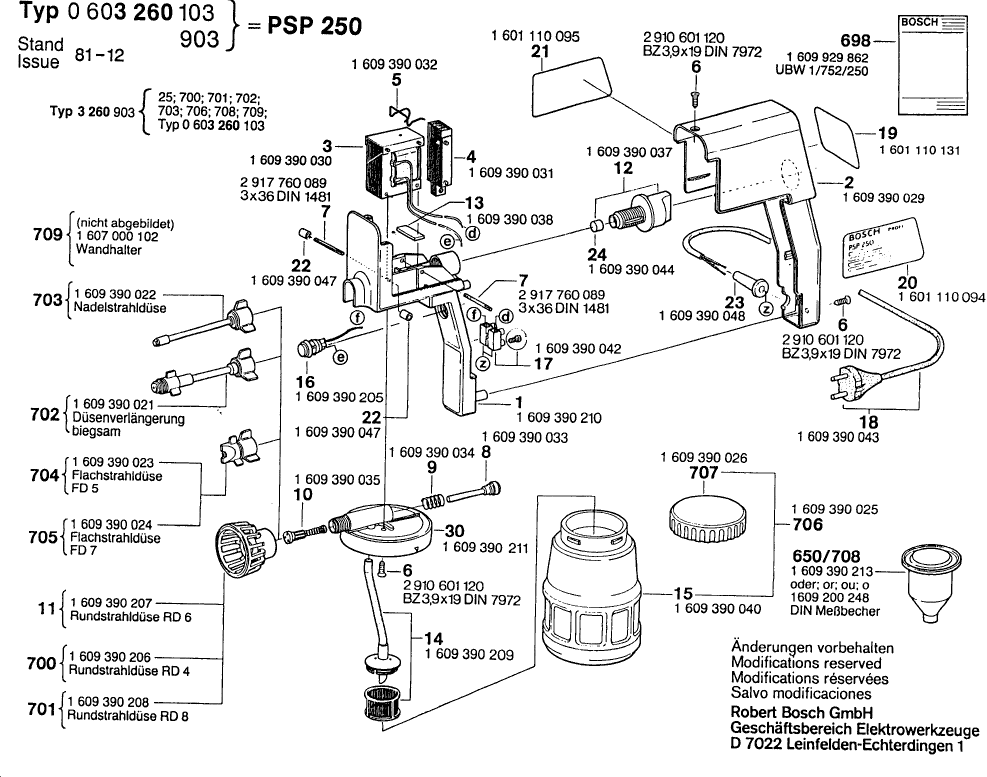

Technical drawing of model Bosch 0603260903 (PSP250)
Spare parts list of model Bosch 0603260903 (PSP250)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1609390210 | |||
| No longer available, no replacement | ||||
| 2 | 1609390204 | |||
| No longer available, no replacement | ||||
| 3 | 1609390030 | |||
| No longer available, no replacement | ||||
| 4 | 1609390031 | |||
| No longer available, no replacement | ||||
| 5 | 1609390032 | |||
| Tapping Screw | ||||
| 6 | 2910601120 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 7 | 2917760089 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 8 | 1609390033 | |||
| No longer available, no replacement | ||||
| 9 | 1609390034 | |||
| No longer available, no replacement | ||||
| 10 | 1609390035 | |||
| No longer available, no replacement | ||||
| 11 | 1609390541 | |||
| No longer available, no replacement | ||||
| 12 | 1609390037 | |||
| No longer available, no replacement | ||||
| 13 | 1609390038 | |||
| Suction Pipe | ||||
| 14 | 1609390209 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 15 | 1609390040 | |||
| No longer available, no replacement | ||||
| 16 | 1609390205 | |||
| connecting terminal | ||||
| 17 | 1609390042 | 1.49 | 1.80 | |
| Power supply cord | ||||
| 18 | 1609390562 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 18 | 1609390043 | 16.79 | 20.32 | |
| Nameplate | ||||
| 19 | 1601110131 | 1.00 | 1.21 | |
| Nameplate | ||||
| 19 | 1601110132 | 1.00 | 1.21 | |
| Sticker | ||||
| 20 | 1601110094 | 1.00 | 1.21 | |
| Sticker | ||||
| 21 | 1601110095 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 22 | 1609390047 | |||
| Grommet | ||||
| 23 | 1609390048 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 24 | 1609390044 | |||
| No longer available, no replacement | ||||
| 30 | 1609390211 | |||
| No longer available, no replacement | ||||
| 650 | 1609200248 | |||
| No longer available, no replacement | ||||
| 700 | 1609390206 | |||
| No longer available, no replacement | ||||
| 701 | 1609390542 | |||
| No longer available, no replacement | ||||
| 702 | 1609390021 | |||
| No longer available, no replacement | ||||
| 703 | 1609390022 | |||
| No longer available, no replacement | ||||
| 704 | 1609390358 | |||
| No longer available, no replacement | ||||
| 705 | 1609390359 | |||
| No longer available, no replacement | ||||
| 706 | 1609390025 | |||
| No longer available, no replacement | ||||
| 707 | 1609390026 | |||
| No longer available, no replacement | ||||
| 708 | 1609390045 | |||
| Mounting Piece | ||||
| 709 | 1607000167 | 27.81 | 33.65 | |
