Here you will find all available parts and drawings of the 'Bosch 3603C77001 (PSM160A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

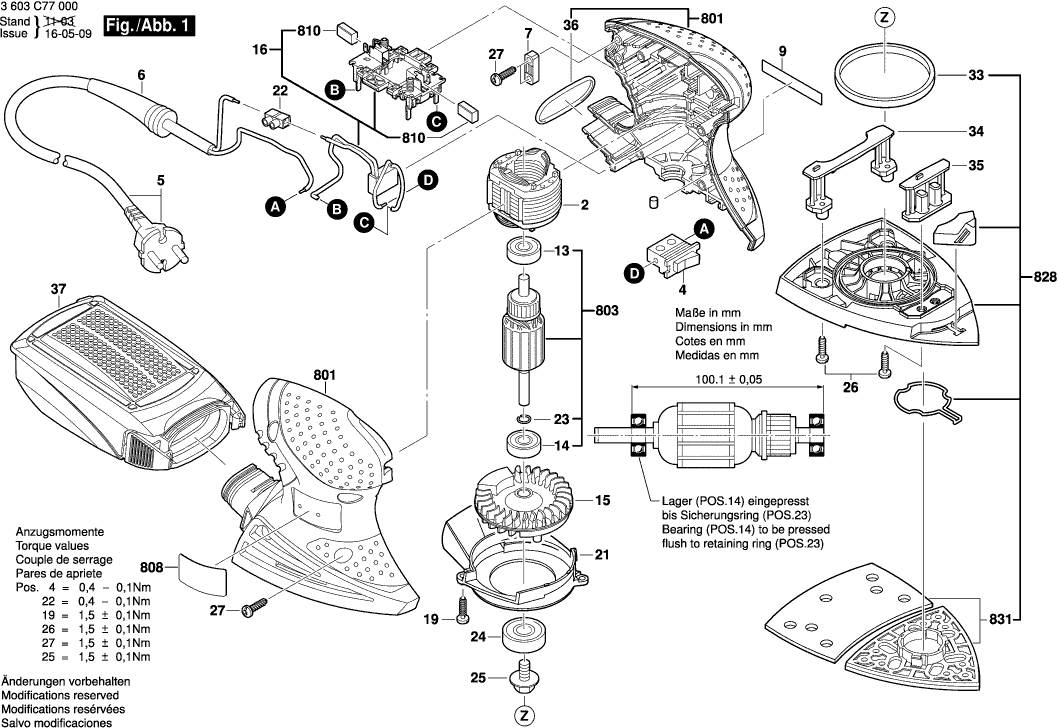

Technical drawing of model Bosch 3603C77001 (PSM160A)
Spare parts list of model Bosch 3603C77001 (PSM160A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230-240V "JAPAN" | ||||
| 2 | 2609001806 | 16.79 | 20.32 | |
| Switch | ||||
| 4 | 1607200289 | 3.44 | 4.16 | |
| Power supply cord | ||||
| 5 | 1604460295 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2609002019 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609000110 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 13 | 2600905078 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 2600905078 | 6.73 | 8.14 | |
| Fan | ||||
| 15 | 2609000013 | 7.46 | 9.03 | |
| Brush Holder | ||||
| 16 | 2609000032 | 11.37 | 13.76 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Housing | ||||
| 21 | 2609001815 | 4.18 | 5.06 | |
| Socket-Terminal Strip | ||||
| 22 | 2609000082 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 23 | 2916540005 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 24 | 2600905045 | 14.94 | 18.08 | |
| Torx Oval-Head Screw | ||||
| 25 | 2610918116 | 3.44 | 4.16 | |
| Screw | ||||
| 26 | 2603490022 | 1.00 | 1.21 | |
| Screw | ||||
| 27 | 2603490022 | 1.00 | 1.21 | |
| Felt Strip | ||||
| 33 | 2609000015 | 1.00 | 1.21 | |
| Oscillation Insert | ||||
| 34 | 2609000017 | 2.86 | 3.46 | |
| Oscillation Insert | ||||
| 35 | 2609000018 | 2.86 | 3.46 | |
| O-Ring | ||||
| 36 | 2609001761 | 1.00 | 1.21 | |
| Dust container | ||||
| 37 | 2609001542 | 14.94 | 18.08 | |
| Housing Section | ||||
| 801 | 2609000128 | 23.90 | 28.92 | |
| Armature 230-240V | ||||
| 803 | 2609001826 | 39.14 | 47.36 | |
| Nameplate | ||||
| 808 | 160111A2WM | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 7.32 | 8.86 | |
| Sander Plate | ||||
| 828 | 2609001000 | 20.39 | 24.67 | |
| Swivel Plate | ||||
| 831 | 2609000120 | 11.37 | 13.76 | |
