Here you will find all available parts and drawings of the 'Bosch 0603274003 ( PSM125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

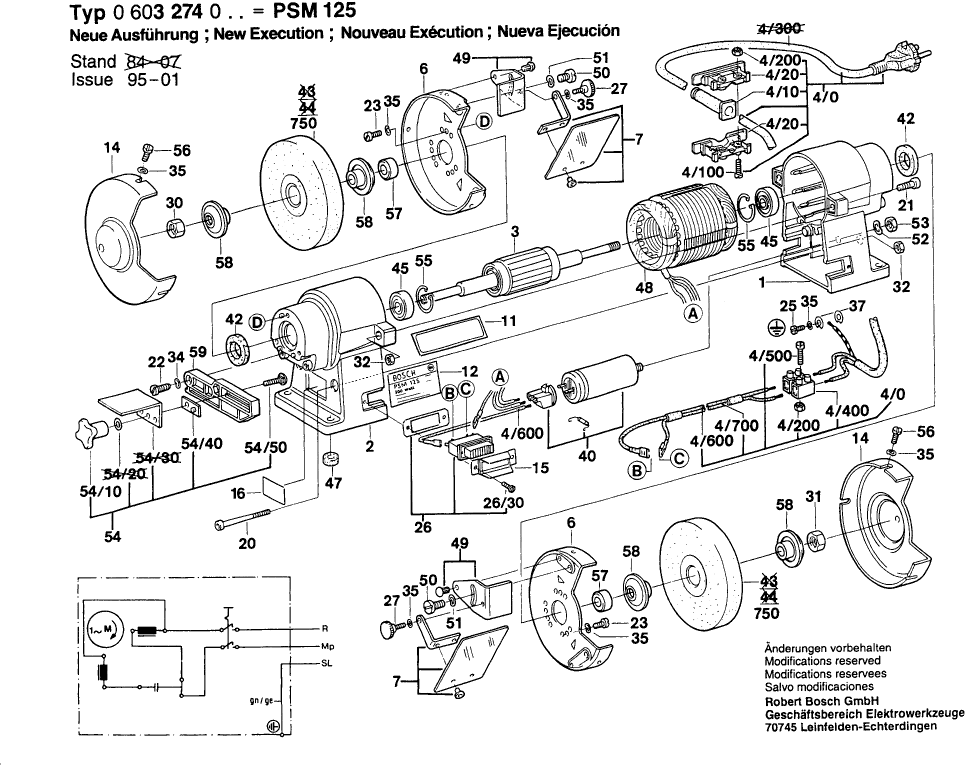

Technical drawing of model Bosch 0603274003 ( PSM125 )

Spare parts list of model Bosch 0603274003 ( PSM125 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 1609201439
No longer available, no replacement
2 1609201440
Rotor Without Winding
3 1609201441 20.42 24.71
No longer available, no replacement
4 1609202680
No longer available, no replacement
4/0 1609201442
Grommet Ø6,4-Ø7,5x75 MM
4/10 1600703016 0.83 1.00
Socket head cap screw DIN 84-AM3x12-8.8
4/100 2910021054 0.83 1.00
Hex Nut DIN 934-M 3-m-8
4/200 2915011003 0.83 1.00
No longer available, no replacement
4/400 1609201562
Socket head cap screw DIN 84-AM3X14-5.8
4/500 2910011058 0.83 1.00
Connecting Cable BLUE
4/600 1609201563 0.83 1.00
Connecting Cable RED
4/700 1609201564 0.83 1.00
No information available, not orderable
5 1609201446
No longer available, no replacement
6 1609201444
No longer available, no replacement
7 1609201445
Reference Plate
11 1601110299 0.83 1.00
Sticker
12 1601110300 0.83 1.00
No information available, not orderable
13 1609201447
Protective Cover
14 1609201448 10.73 12.98
No longer available, no replacement
15 1609201449
Nameplate
16 1601107013 0.83 1.00
No information available, not orderable
17 1609201450
No information available, not orderable
18 1609201451
Hex Socket Head Cap Screw
20 1617000121 0.83 1.00
Hex Socket Head Cap Screw DIN 912-M5X16-8.8
21 2910141158 0.83 1.00
No longer available, no replacement
22 2910011157
Socket head cap screw DIN 84-AM4x12-8.8
23 2910021122 1.70 2.06
Socket head cap screw DIN 84-AM4x8-CuZn
25 2910034118 0.83 1.00
No longer available, no replacement
26 1609201452
Socket head cap screw DIN 84-AM3x8-8.8
26/30 2910021050 0.83 1.00
Knurled Thumbscrew M 4x6 DIN 464-5.8
27 2912501116 1.94 2.35
Hex Nut DIN 934-M12 LEFT-HAND THREAD
30 1609201457 1.18 1.43
Hex Nut DIN 934-M12-m-8
31 2915011011 1.18 1.43
No longer available, no replacement
32 2915011006
No longer available, no replacement
34 2916060006
Spring Washer DIN 137-A 4-ST
35 2916060005 0.83 1.00
No longer available, no replacement
37 1609201453
No longer available, no replacement
40 1609202554
No longer available, no replacement
41 1609202381
No longer available, no replacement
42 1609201458
No longer available, no replacement
43 1609201402
No longer available, no replacement
44 1609201403
groove ball bearing 12x32x10
45 1900905231 26.84 32.48
No longer available, no replacement
47 1609201454
No longer available, no replacement
48 1609201456
Safety Angle
49 1609201455 2.24 2.71
Pan head screw DIN 85-AM6x8-4.8
50 2910095189 0.83 1.00
Spring Washer DIN 137-A 6-ST
51 2916060007 0.83 1.00
Toothed Lock Washer DIN 6797-J8,2-FST
52 2916040008 0.83 1.00
Hex Nut DIN 439-BM8-04
53 2915051107 1.18 1.43
No longer available, no replacement
54 1609201443
Round-Head Bolt DIN 603-M5x20
54/10 2910281162 1.18 1.43
Round-Head Bolt M 5x25 DIN 603
54/10 2910281164 0.83 1.00
Plain Washer DIN 433-5,3-ST
54/40 2916011011 1.18 1.43
Palm Grip M5
54/50 1603349016 0.83 1.00
Retaining clip DIN 472-32x1,2 MM
55 2916660013 1.70 2.06
Socket head cap screw DIN 84-AM4x8-8.8
56 2910021118 0.83 1.00
Spacer Bushing
57 1609201560 0.83 1.00
Clamping Flange
58 1609201561 0.83 1.00
Securing Strip
59 1609201565 0.83 1.00
No longer available, no replacement
750 1609201402
No longer available, no replacement
751 1609201403
No longer available, no replacement
752 1609201404
No longer available, no replacement
753 1607929000
