Here you will find all available parts and drawings of the 'Bosch 3603J76900 ( PSM10,8LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

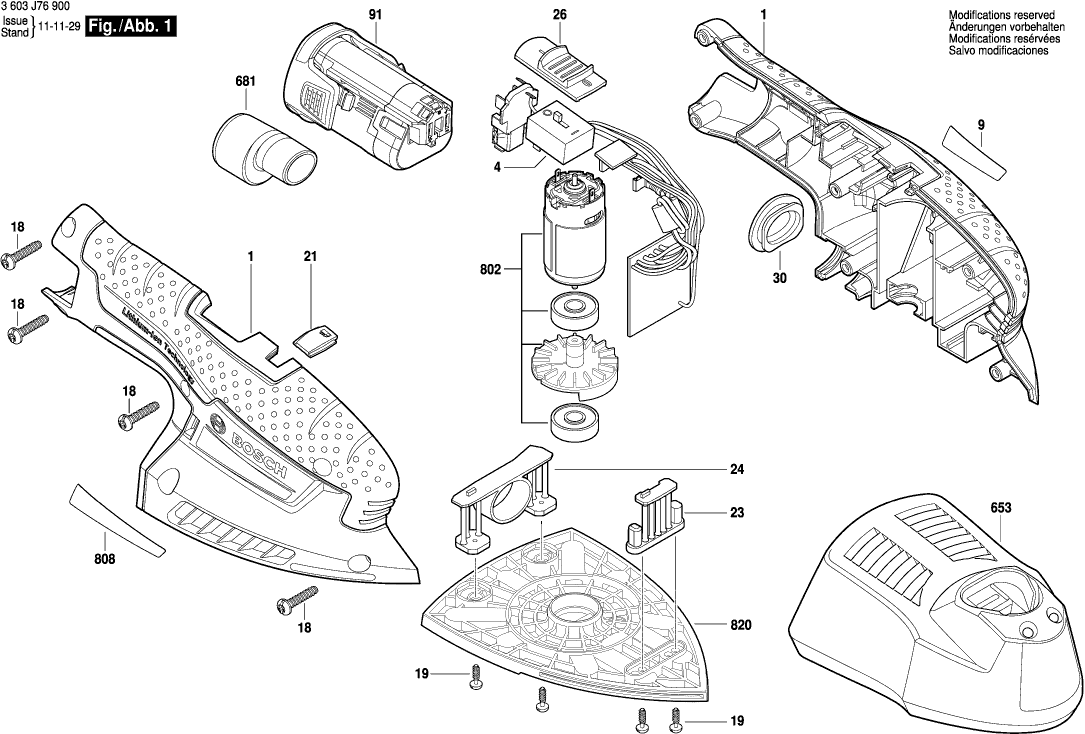

Technical drawing of model Bosch 3603J76900 ( PSM10,8LI )
Spare parts list of model Bosch 3603J76900 ( PSM10,8LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609005280 | 13.93 | 16.86 | |
| Electronic Assembly | ||||
| 4 | 2609005281 | 49.56 | 59.97 | |
| Manufacturer's nameplate PSM 10,8 LI | ||||
| 9 | 2609005278 | 1.94 | 2.35 | |
| Screw 4x16 | ||||
| 18 | 2603490022 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 3x10 | ||||
| 19 | 2603490017 | 1.70 | 2.06 | |
| Lens | ||||
| 21 | 2609005282 | 1.18 | 1.43 | |
| Oscillation Insert | ||||
| 23 | 2609001421 | 4.70 | 5.69 | |
| Vibration Foot | ||||
| 24 | 2609005283 | 5.33 | 6.45 | |
| Slider | ||||
| 26 | 2609005284 | 1.18 | 1.43 | |
| Rubber Plug | ||||
| 30 | 2609005286 | 1.70 | 2.06 | |
| Battery Pack PBA 12V, 2,0Ah O-A | ||||
| 91 | 1607A3507N | 60.65 | 73.39 | |
| Fast Charger GB AL 1115 CV 230/3,6-12V, 1h | ||||
| 653 | 2607225515 | 44.82 | 54.23 | |
| Fast Charger EU GAL 12V-20 230/3,6-12V 2A | ||||
| 653 | 2607226187 | 26.84 | 32.48 | |
| Fast Charger AUS GAL 12V-20 240/3,6-12V 2A | ||||
| 653 | 2607226191 | 26.84 | 32.48 | |
| Fitting | ||||
| 681 | 2609005888 | 2.71 | 3.28 | |
| DC motor 10,8V | ||||
| 802 | 2609005287 | 23.75 | 28.74 | |
| Nameplate | ||||
| 808 | 2609005288 | 1.94 | 2.35 | |
| Sander Plate | ||||
| 820 | 2609001937 | 10.73 | 12.98 | |
