Here you will find all available parts and drawings of the 'Bosch 3603C16703 ( PSE180E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

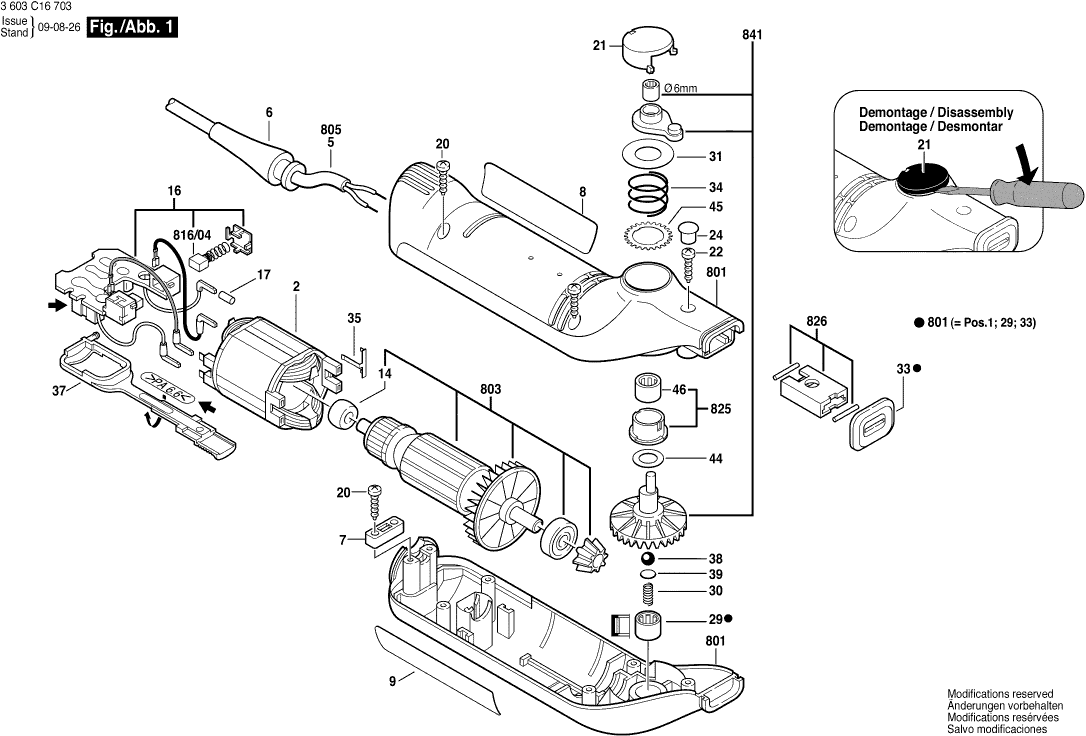

Technical drawing of model Bosch 3603C16703 ( PSE180E )
Spare parts list of model Bosch 3603C16703 ( PSE180E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230-240V | ||||
| 2 | 2604220705 | 26.84 | 32.48 | |
| Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV- | ||||
| 5 | 2604460259 | 10.73 | 12.98 | |
| Grommet Ø6,4-Ø7,2x67 MM | ||||
| 6 | 1600703030 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Marking Plate | ||||
| 8 | 2601111137 | 1.70 | 2.06 | |
| Manufacturer's nameplate PSE 180 E | ||||
| 9 | 2601116978 | 2.71 | 3.28 | |
| Sintered-Metal Bushing | ||||
| 14 | 2600302027 | 4.70 | 5.69 | |
| Rpm Actuator | ||||
| 16 | 2607230125 | 36.85 | 44.59 | |
| Shrinkable Tube | ||||
| 17 | 2600409021 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 20 | 2603490022 | 0.83 | 1.00 | |
| Push-Button | ||||
| 21 | 2600522013 | 1.94 | 2.35 | |
| Torx Oval-Head Screw 4x20 | ||||
| 22 | 2603490023 | 0.83 | 1.00 | |
| Plug | ||||
| 24 | 2603126014 | 1.94 | 2.35 | |
| Needle bearing | ||||
| 29 | 2600917006 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 30 | 2604612005 | 1.94 | 2.35 | |
| Pressure Disk | ||||
| 31 | 2600101085 | 1.94 | 2.35 | |
| Protective Cap | ||||
| 33 | 2600712005 | 2.24 | 2.71 | |
| Compression Spring | ||||
| 34 | 2604616005 | 2.24 | 2.71 | |
| Contact Spring | ||||
| 35 | 2601329037 | 1.18 | 1.43 | |
| Switch Slide RED | ||||
| 37 | 2602319009 | 4.70 | 5.69 | |
| Ball DIN 5401-4 MM-III-ST | ||||
| 38 | 1903230007 | 1.18 | 1.43 | |
| Shim 0,5 MM | ||||
| 39 | 2600000028 | 1.70 | 2.06 | |
| Supporting Disc 0,5 MM THICK | ||||
| 44 | 1610101615 | 1.94 | 2.35 | |
| Adjusting Disc | ||||
| 45 | 2600190067 | 1.94 | 2.35 | |
| Needle-Roller Bearing Ø14 MM | ||||
| 46 | 2600910001 | 3.31 | 4.01 | |
| Housing Section GREEN | ||||
| 801 | 2605190923 | 15.71 | 19.01 | |
| Armature 230-240V | ||||
| 803 | 2604011924 | 29.75 | 36.00 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321923 | |||
| Sintered-Metal Bushing | ||||
| 825 | 2605801900 | 4.70 | 5.69 | |
| Guide Bearing | ||||
| 826 | 2605801901 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 841 | 2606100922 | |||
