Here you will find all available parts and drawings of the 'Bosch 3603A72500 ( PSB700-2RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

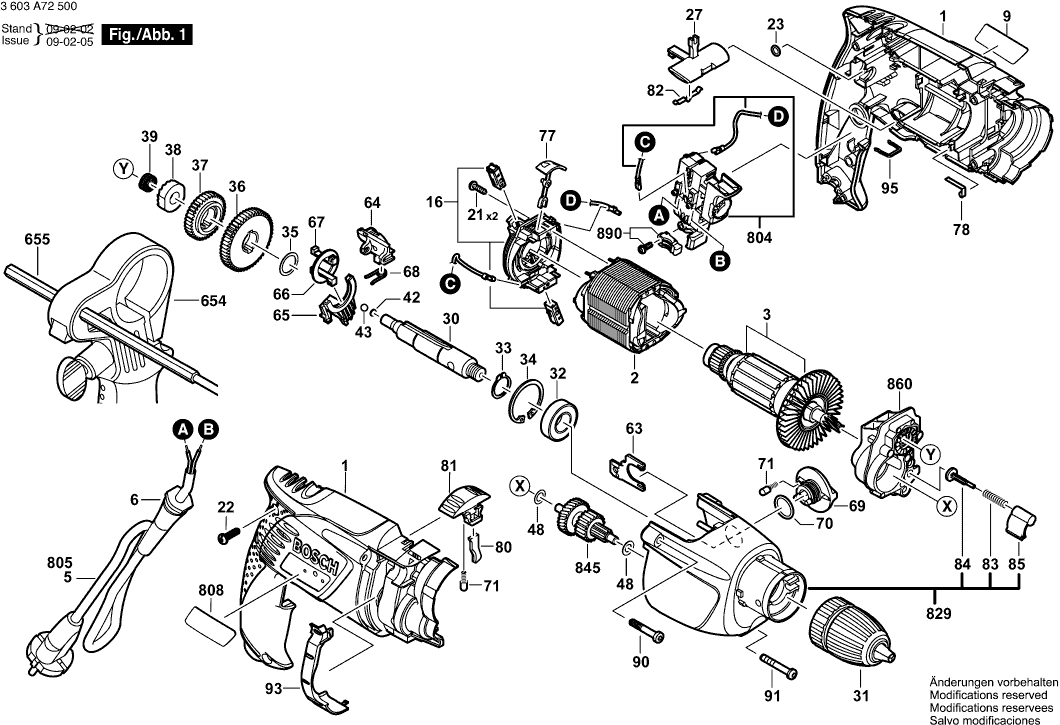

Technical drawing of model Bosch 3603A72500 ( PSB700-2RE )

Spare parts list of model Bosch 3603A72500 ( PSB700-2RE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 2605105092
No longer available, no replacement
2 2604220717
No longer available, no replacement
3 2604011368
Power supply cord CN 2,65m 2 x 0,75mm H05 W-F
5 1607000387 8.45 10.22
Grommet
6 2609002019 1.94 2.35
Manufacturer's nameplate PSB 700-2 RE
9 2601116997 2.24 2.71
Brush Plate
16 2604337059 8.45 10.22
Tapping Screw DIN 7981-ST2,2x9,5-C-H
21 2910611002 0.83 1.00
Screw 4x16
22 2603490022 0.83 1.00
O-Ring 5,0x1,5 MM
23 1900210000 1.18 1.43
No longer available, no replacement
27 2609001247
Drilling Spindle
30 2606135130 18.19 22.01
Keyless Chuck
31 2608572243 44.82 54.23
groove ball bearing 17x35x10
32 1900905163 8.45 10.22
Spring retaining ring DIN 471 17x1 MM
33 2916650008 1.18 1.43
Spring retaining ring DIN 472 35x1,5 MM
34 2916660014 1.18 1.43
Shim 0,5 MM
35 2600100695 1.18 1.43
Cylindrical Gear
36 2606317086 6.54 7.91
Cylindrical Gear
37 2606317098 9.53 11.53
Catch Disk
38 2600190105 1.94 2.35
Compression Spring
39 2604616013 1.94 2.35
Shim washer 1,0 MM
42 2600000021 1.18 1.43
Shim washer 1,35 MM
42 2600000030 1.18 1.43
Shim washer 1,7 MM
42 2600000031 1.18 1.43
Ball DIN 5401-5 G28
43 1903230009 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
43 1903230010 0.83 1.00
Ball 5,25 MM
43 2603230007 0.83 1.00
Shim 0,3 MM
48 2600100607 1.18 1.43
Holding Plate
63 2601328003 0.83 1.00
Link Guide
64 2602033017 0.83 1.00
Fork Lever
65 2601990045 0.83 1.00
Retaining Washer
66 2600101671 1.18 1.43
Flat Key
67 2602300032 2.71 3.28
Compression Spring
68 2604616014 0.83 1.00
Rotary Knob
69 2602026137 1.70 2.06
O-Ring 15,6x1,8 MM
70 3600210003 1.18 1.43
Ratchet Cap
71 2600590006 1.18 1.43
Rocker
77 2602123007 1.94 2.35
Contact Strap
78 2601329043 1.94 2.35
Guiding Plate
80 2601990044 1.18 1.43
Changeover Lever
81 2602098021 0.83 1.00
Leaf Spring
82 2601290030 0.83 1.00
Compression Spring
83 2604610056 0.83 1.00
Bolt
84 2603105115 0.83 1.00
Sealing cap
85 2605510222 0.83 1.00
Headless Screw
90 2603435087 0.83 1.00
Thread-forming tap. Screw
91 2603435088 2.24 2.71
Housing part
93 2601328077 0.83 1.00
No longer available, no replacement
95 2601250010
METAL HANDLE
654 1612025020 0.83 1.00
Depth-Gauge
655 2609005615 3.31 4.01
No longer available, no replacement
804 2609003670
Nameplate
808 2601115031 2.24 2.71
Gear Housing
829 2605806885 20.42 24.71
No longer available, no replacement
845 2606309939
Bearing Bracket
860 2605807940 33.45 40.47
Fastening parts kit
890 2607001305 3.31 4.01
