Here you will find all available parts and drawings of the 'Bosch 0603386687 (PSB650RE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

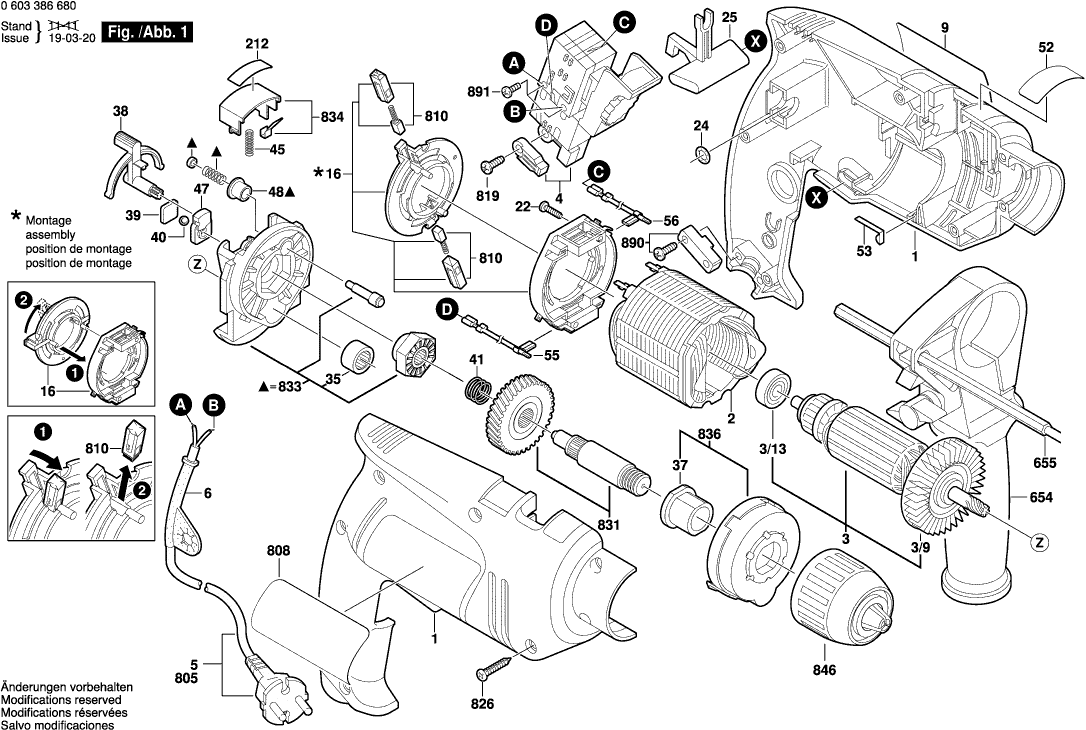

Technical drawing of model Bosch 0603386687 (PSB650RE)
Spare parts list of model Bosch 0603386687 (PSB650RE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 2605104560 | |||
| No longer available, no replacement | ||||
| 2 | 2604220594 | |||
| No longer available, no replacement | ||||
| 3 | 2604011154 | |||
| Ball Bearing | ||||
| 3/13 | 2600905032 | 4.94 | 5.98 | |
| Fan | ||||
| 3/9 | 2606610029 | 2.40 | 2.90 | |
| Switch | ||||
| 4 | 2607200601 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 5 | 1607000387 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| No information available, not orderable | ||||
| 9 | 2601117335 | |||
| Brush Plate | ||||
| 16 | 2604337059 | 10.90 | 13.19 | |
| Tapping Screw | ||||
| 22 | 2910611002 | 1.00 | 1.21 | |
| O-Ring | ||||
| 24 | 1900210000 | 1.49 | 1.80 | |
| Change-Over Switch | ||||
| 25 | 2602098008 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 35 | 2600914019 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 37 | 2600301052 | |||
| No longer available, no replacement | ||||
| 38 | 2601990010 | |||
| Pressure Plate | ||||
| 39 | 2601074004 | 1.00 | 1.21 | |
| Ball | ||||
| 40 | 1903230009 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 45 | 2604610047 | |||
| Frame | ||||
| 47 | 2608040120 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 48 | 2600390031 | |||
| Reference Plate | ||||
| 52 | 2601119419 | 3.44 | 4.16 | |
| Contact Strap | ||||
| 53 | 2601329043 | 2.40 | 2.90 | |
| Pvc-Insulated Cable | ||||
| 55 | 1614431025 | 2.40 | 2.90 | |
| Pvc-Insulated Cable | ||||
| 56 | 2604448228 | 2.08 | 2.52 | |
| Reference Plate | ||||
| 212 | 2601119602 | 3.44 | 4.16 | |
| Auxiliary Handle | ||||
| 654 | 2602025125 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 655 | 2609005615 | |||
| Nameplate | ||||
| 808 | 2609000724 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 810 | 2607014017 | |||
| Tapping Screw | ||||
| 819 | 2910611006 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 826 | 2910611020 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 831 | 2606135929 | |||
| No longer available, no replacement | ||||
| 833 | 2605807932 | |||
| No longer available, no replacement | ||||
| 834 | 2603231040 | |||
| No longer available, no replacement | ||||
| 836 | 2605808922 | |||
| No longer available, no replacement | ||||
| 846 | 2608572173 | |||
| Fastening parts kit | ||||
| 890 | 2607001305 | 4.18 | 5.06 | |
| Cross Recessed-Head Screw | ||||
| 891 | 2603410046 | 2.08 | 2.52 | |
