Here you will find all available parts and drawings of the 'Bosch 0603385703 ( PSB650RA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

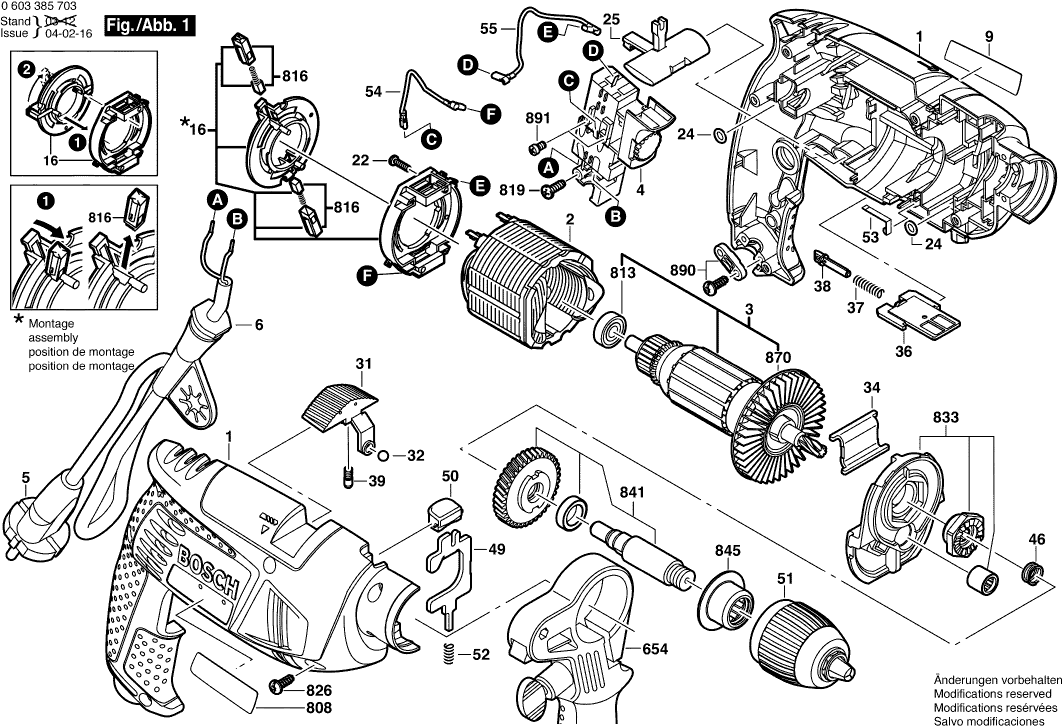

Technical drawing of model Bosch 0603385703 ( PSB650RA )
Spare parts list of model Bosch 0603385703 ( PSB650RA )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2605105054 | 26.84 | 32.48 | |
| No longer available, no replacement | ||||
| 2 | 2604220717 | |||
| Armature 220-240V | ||||
| 3 | 2604011337 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 4 | 2607200598 | |||
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 5 | 1607000388 | 9.53 | 11.53 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate PSB 650 RA | ||||
| 9 | 2601116599 | 4.10 | 4.96 | |
| Brush Plate | ||||
| 16 | 2604337059 | 8.45 | 10.22 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| O-Ring 5,0x1,5 MM | ||||
| 24 | 1900210000 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 25 | 2602098020 | 2.71 | 3.28 | |
| Change-Over Switch | ||||
| 31 | 2602098019 | 1.70 | 2.06 | |
| Ball DIN 5401-5 G28 | ||||
| 32 | 1903230009 | 0.83 | 1.00 | |
| Guiding Plate | ||||
| 34 | 2601334013 | 1.18 | 1.43 | |
| Locking Piece | ||||
| 36 | 2605510215 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 37 | 2604610100 | 0.83 | 1.00 | |
| Bolt | ||||
| 38 | 2603105109 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 39 | 2600590006 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 46 | 2604616006 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 49 | 2601000051 | |||
| Push-Button | ||||
| 50 | 2605510218 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 51 | 2608572173 | |||
| No longer available, no replacement | ||||
| 52 | 2604610102 | |||
| Contact Strap | ||||
| 53 | 2601329043 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=95 MM | ||||
| 54 | 1614431025 | 1.94 | 2.35 | |
| Pvc-Insulated Cable L=120 MM BLUE | ||||
| 55 | 2604448228 | 1.70 | 2.06 | |
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Filter Element | ||||
| 655 | 2607030109 | 36.85 | 44.59 | |
| Impulse Starting Device RED | ||||
| 655/10 | 2605510217 | 0.83 | 1.00 | |
| Dust Bag BLACK | ||||
| 655/830 | 2605411902 | 4.70 | 5.69 | |
| Intake manifold module BLACK | ||||
| 655/880 | 2605190920 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 655/880/16 | 2600206003 | |||
| Marking Plate | ||||
| 808 | 2601116717 | 4.10 | 4.96 | |
| Ball Bearing 7x19x6 | ||||
| 813 | 2600905032 | 4.10 | 4.96 | |
| Carbon-Brush Set | ||||
| 816 | 2607014013 | 7.58 | 9.17 | |
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 819 | 2910611006 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 826 | 2910611020 | 1.18 | 1.43 | |
| Bearing Bracket | ||||
| 833 | 2605807939 | 11.88 | 14.37 | |
| Drilling Spindle | ||||
| 841 | 2606135937 | 44.82 | 54.23 | |
| Flanged Bearing | ||||
| 845 | 2605805011 | 11.88 | 14.37 | |
| Fan | ||||
| 870 | 2606610114 | 3.31 | 4.01 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
