Here you will find all available parts and drawings of the 'Bosch 0603387503 ( PSB550RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

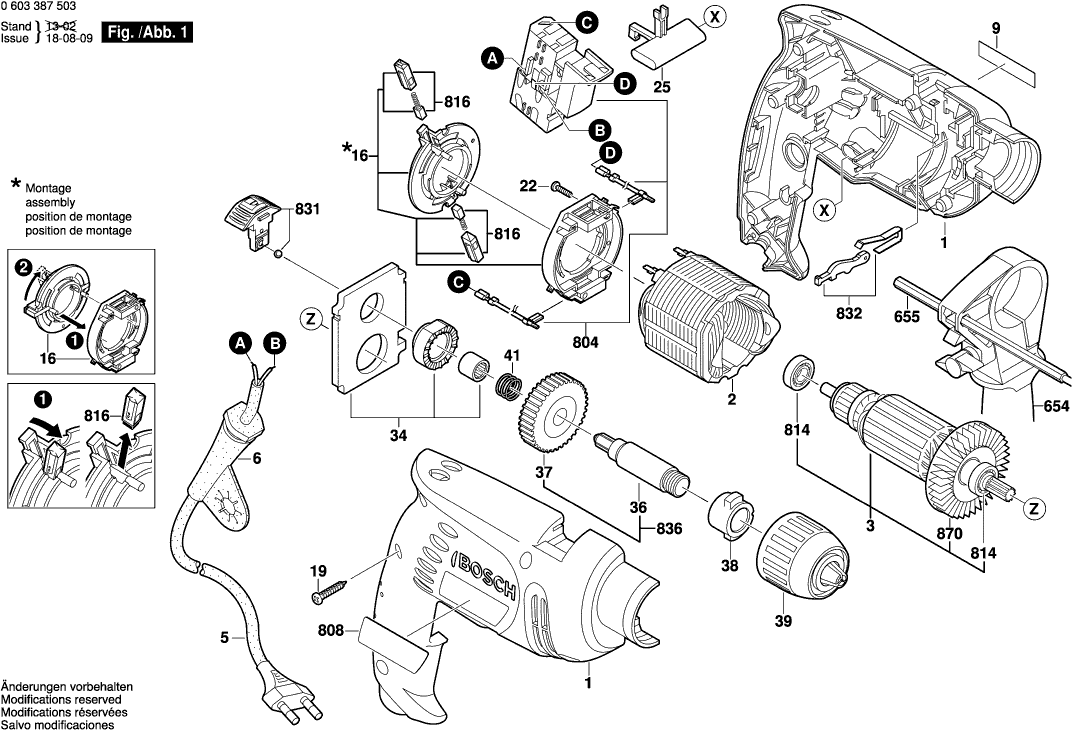

Technical drawing of model Bosch 0603387503 ( PSB550RE )
Spare parts list of model Bosch 0603387503 ( PSB550RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104775 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| Armature 220-240V | ||||
| 3 | 2604011321 | 29.75 | 36.00 | |
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 5 | 1607000388 | 9.53 | 11.53 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate PSB 550 RE | ||||
| 9 | 2601116321 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 16 | 2604337101 | |||
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| Change-Over Switch RED | ||||
| 25 | 2602098008 | 0.83 | 1.00 | |
| Bearing Bracket | ||||
| 34 | 2605807107 | 8.45 | 10.22 | |
| Drilling Spindle 1/2" | ||||
| 36 | 2606135081 | 6.54 | 7.91 | |
| Cylindrical Gear | ||||
| 37 | 2606320081 | 6.54 | 7.91 | |
| Sintered-Metal Bushing | ||||
| 38 | 2600301054 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 39 | 2608572173 | |||
| Compression Spring | ||||
| 41 | 2604616006 | 1.18 | 1.43 | |
| Auxiliary Handle Power Light | ||||
| 654 | 2602025137 | 13.93 | 16.86 | |
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 804 | 2609002056 | |||
| Marking Plate | ||||
| 808 | 2601116352 | 2.71 | 3.28 | |
| groove ball bearing 8x22x7 608-2Z/C3 | ||||
| 814 | 3130900020 | 5.33 | 6.45 | |
| Carbon-Brush Set | ||||
| 816 | 2607014013 | 7.58 | 9.17 | |
| Circuit Unit | ||||
| 831 | 2607235012 | 6.54 | 7.91 | |
| Rocker | ||||
| 832 | 2602123901 | 2.24 | 2.71 | |
| Drilling Spindle | ||||
| 836 | 2606135935 | 11.88 | 14.37 | |
| Fan | ||||
| 870 | 2606610097 | 2.71 | 3.28 | |
