Here you will find all available parts and drawings of the 'Bosch 3603A26100 ( PSB530RA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

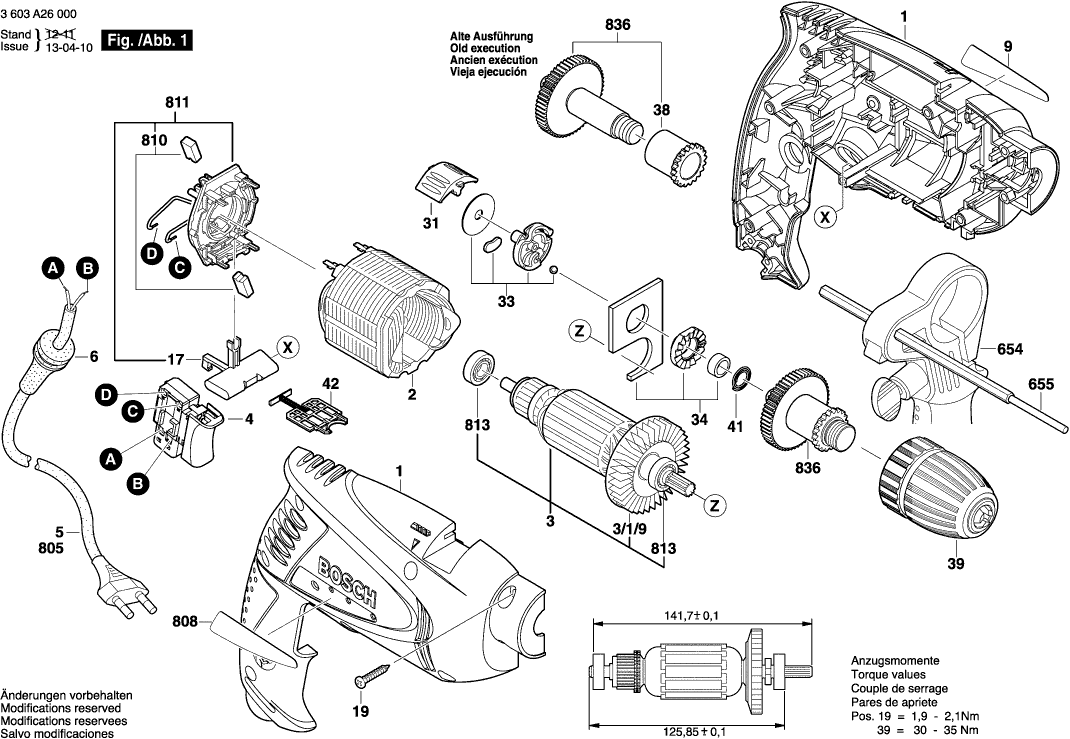

Technical drawing of model Bosch 3603A26100 ( PSB530RA )
Spare parts list of model Bosch 3603A26100 ( PSB530RA )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609003793 | 12.41 | 15.02 | |
| Field 220-240V | ||||
| 2 | 2609003024 | 10.73 | 12.98 | |
| Armature 220-240V | ||||
| 3 | 2609002170 | 18.19 | 22.01 | |
| Fan | ||||
| 3/1/9 | 2609002159 | 1.70 | 2.06 | |
| Switch | ||||
| 4 | 2607200655 | 10.73 | 12.98 | |
| Grommet | ||||
| 6 | 2609002019 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSB 530 RA | ||||
| 9 | 2609002342 | 1.94 | 2.35 | |
| Change-Over Switch | ||||
| 17 | 2609002160 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Change-Over Switch | ||||
| 31 | 2609000684 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 33 | 2601901012 | |||
| Bearing Bracket | ||||
| 34 | 2609002255 | 6.54 | 7.91 | |
| Porous Bearing | ||||
| 38 | 2609002157 | 1.70 | 2.06 | |
| Keyless Chuck | ||||
| 39 | 2609002051 | 18.19 | 22.01 | |
| Compression Spring | ||||
| 41 | 2609002581 | 0.83 | 1.00 | |
| Shut-off Valve | ||||
| 42 | 2609002750 | 0.83 | 1.00 | |
| Lock RED | ||||
| 653 | 2607030115 | 1.70 | 2.06 | |
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| Power supply cord CN 2,65m 2 x 0,75mm H05 W-F | ||||
| 805 | 1607000387 | 8.45 | 10.22 | |
| Nameplate | ||||
| 808 | 2609002349 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 811 | 2609005889 | |||
| groove ball bearing 8x22x7 608-2Z/C3 | ||||
| 813 | 3130900020 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 836 | 2609002442 | |||
| Exhauster BLACK | ||||
| 856 | 2609000636 | 18.19 | 22.01 | |
| Impulse Starting Device RED | ||||
| 856/10 | 2605510217 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 856/16 | 2600206003 | |||
| Dust Bag BLACK | ||||
| 856/830 | 2605411902 | 4.70 | 5.69 | |
| Intake manifold module BLACK | ||||
| 856/880 | 2605190920 | 12.41 | 15.02 | |
