Here you will find all available parts and drawings of the 'Bosch 0603387003 ( PSB500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

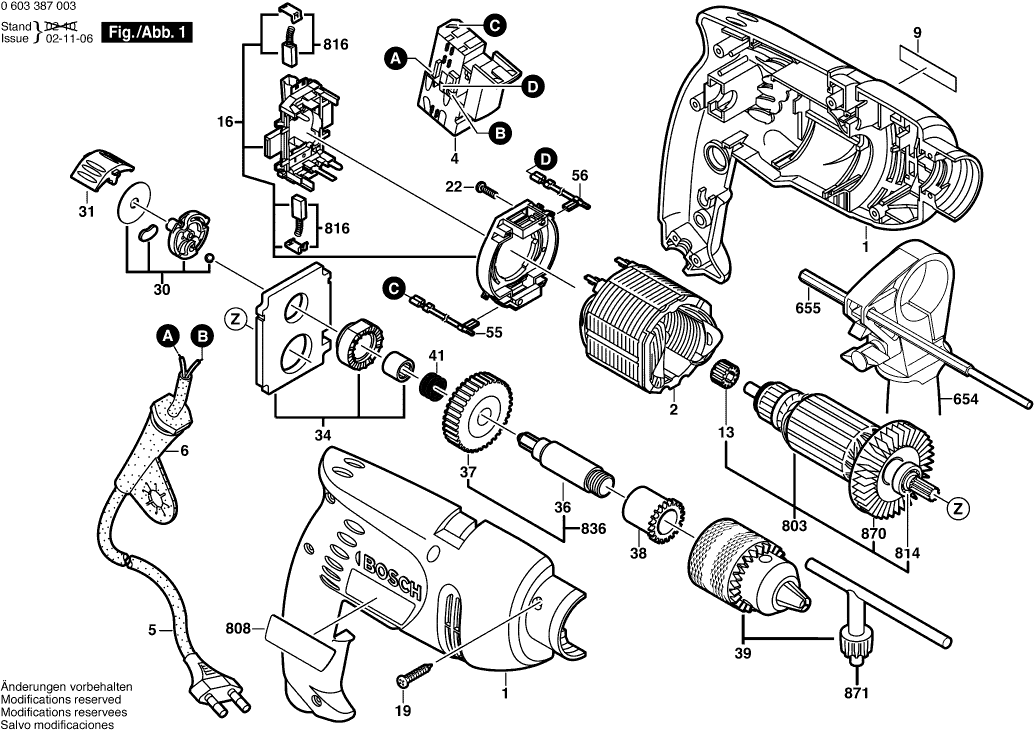

Technical drawing of model Bosch 0603387003 ( PSB500 )
Spare parts list of model Bosch 0603387003 ( PSB500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104779 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| Switch BLACK | ||||
| 4 | 2607200562 | 7.58 | 9.17 | |
| Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV- | ||||
| 5 | 2604460259 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate | ||||
| 9 | 2601117916 | 2.71 | 3.28 | |
| Sintered-Metal Bushing | ||||
| 13 | 2600301068 | 1.18 | 1.43 | |
| Brush Plate | ||||
| 16 | 1600A012AZ | 8.45 | 10.22 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 30 | 2601901012 | |||
| Change-Over Switch | ||||
| 31 | 2601990029 | 1.18 | 1.43 | |
| Bearing Bracket | ||||
| 34 | 2605807107 | 8.45 | 10.22 | |
| Drilling Spindle 1/2" | ||||
| 36 | 2606135081 | 6.54 | 7.91 | |
| Cylindrical Gear | ||||
| 37 | 2606320081 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 38 | 2600301066 | |||
| Key Chuck Ø1,5-13 MM | ||||
| 39 | 1608571080 | 23.75 | 28.74 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.18 | 1.43 | |
| Connecting Cable L=88 MM WHITE | ||||
| 55 | 2604448034 | 1.18 | 1.43 | |
| Connecting Cable L=115 MM WHITE | ||||
| 56 | 2604448109 | 0.83 | 1.00 | |
| Auxiliary Handle | ||||
| 654 | 2602025094 | 5.83 | 7.05 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| Armature 230-240V | ||||
| 803 | 2604011314 | 29.75 | 36.00 | |
| Nameplate | ||||
| 808 | 2601117917 | 2.71 | 3.28 | |
| groove ball bearing 8x22x7 608-2Z/C3 | ||||
| 814 | 3130900020 | 5.33 | 6.45 | |
| Carbon-Brush Set | ||||
| 816 | 2604321925 | 6.54 | 7.91 | |
| Drilling Spindle | ||||
| 836 | 2606135935 | 11.88 | 14.37 | |
| Fan | ||||
| 870 | 2606610097 | 2.71 | 3.28 | |
| Chuck Wrench SG2 | ||||
| 871 | 2607950007 | 5.33 | 6.45 | |
