Here you will find all available parts and drawings of the 'Bosch 3603A27003 ( PSB500RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

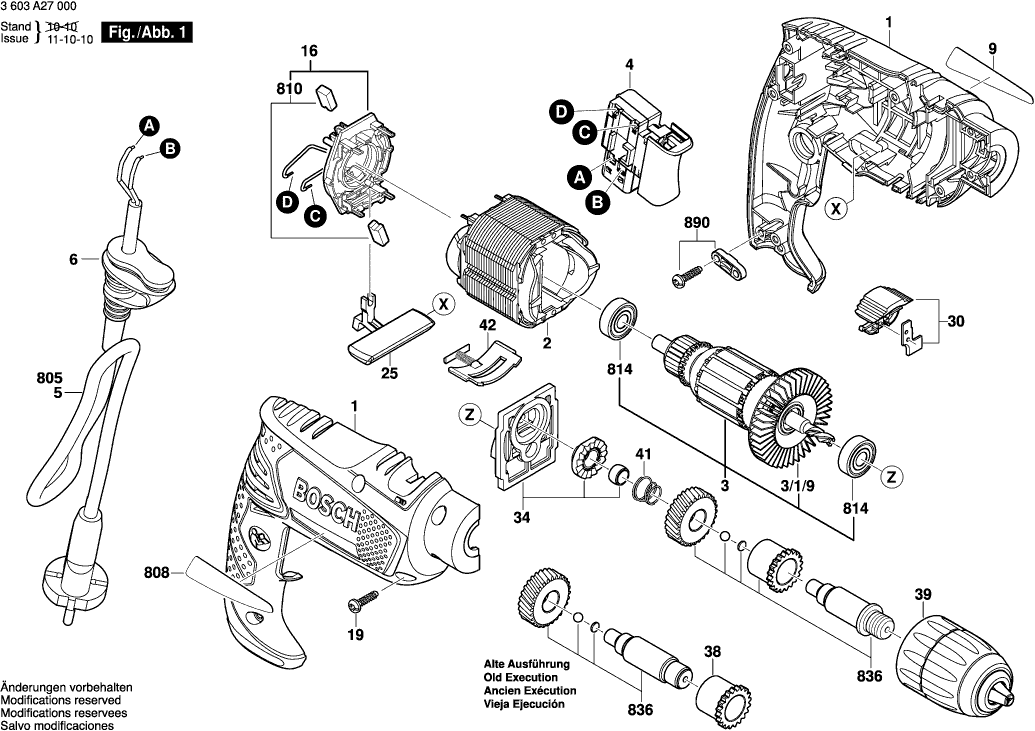

Technical drawing of model Bosch 3603A27003 ( PSB500RE )
Spare parts list of model Bosch 3603A27003 ( PSB500RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2609003079 | 12.41 | 15.02 | |
| Field 220-240V | ||||
| 2 | 2609002875 | 10.73 | 12.98 | |
| Armature 220-240V | ||||
| 3 | 2609003374 | 20.42 | 24.71 | |
| Fan | ||||
| 3/1/9 | 2609002159 | 1.70 | 2.06 | |
| Switch | ||||
| 4 | 2607200655 | 10.73 | 12.98 | |
| Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV- | ||||
| 5 | 2604460259 | 10.73 | 12.98 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2609003080 | 1.18 | 1.43 | |
| Manufacturer's nameplate PSB 500 RE | ||||
| 9 | 2609003217 | 1.94 | 2.35 | |
| Manufacturer's nameplate PSB 500 RA | ||||
| 9 | 2609003428 | 1.94 | 2.35 | |
| Brush Holder | ||||
| 16 | 2609003082 | 8.45 | 10.22 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Change-Over Switch | ||||
| 25 | 2609003083 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 30 | 2609004764 | 0.83 | 1.00 | |
| Bearing Bracket | ||||
| 34 | 2609005549 | 9.53 | 11.53 | |
| Porous Bearing | ||||
| 38 | 2609003094 | 1.70 | 2.06 | |
| Chuck | ||||
| 39 | 1600A00DR5 | 15.71 | 19.01 | |
| Compression Spring | ||||
| 41 | 2609003095 | 0.83 | 1.00 | |
| Shut-off Valve | ||||
| 42 | 2609004840 | 0.83 | 1.00 | |
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| Lock | ||||
| 656/14 | 2609003805 | 1.70 | 2.06 | |
| Dust container | ||||
| 656/810 | 2609004108 | 5.83 | 7.05 | |
| No longer available, no replacement | ||||
| 656/812 | 2600206003 | |||
| Filter | ||||
| 656/9 | 2609002929 | 5.83 | 7.05 | |
| Nameplate | ||||
| 808 | 160111A2GX | 1.94 | 2.35 | |
| Carbon-Brush Set 220-240V | ||||
| 810 | 2609003994 | 6.54 | 7.91 | |
| groove ball bearing 8x22x7 608-2Z/C3 | ||||
| 814 | 3130900020 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 836 | 2609005551 | |||
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
