Here you will find all available parts and drawings of the 'Bosch 0603387760 ( PSB500RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

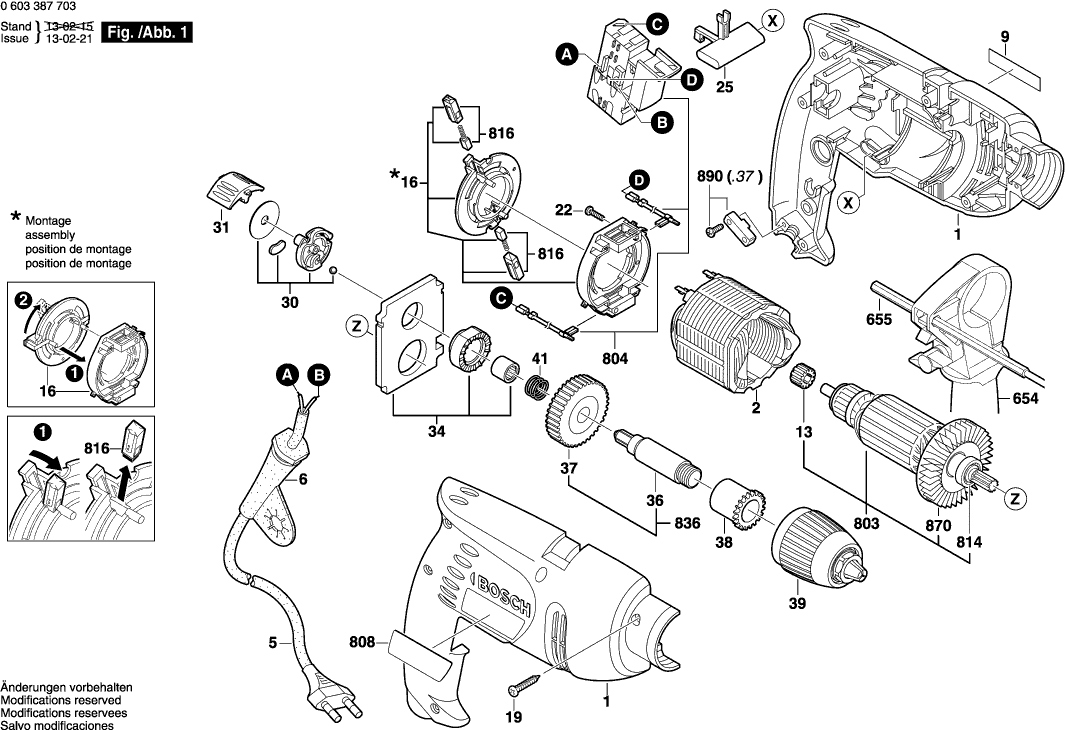

Technical drawing of model Bosch 0603387760 ( PSB500RE )
Spare parts list of model Bosch 0603387760 ( PSB500RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104766 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV- | ||||
| 5 | 2604460259 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate PSB 500 RE | ||||
| 9 | 2601117918 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 13 | 2600301068 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 16 | 2604337101 | |||
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| Change-Over Switch RED | ||||
| 25 | 2602098008 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 30 | 2601901012 | |||
| Change-Over Switch | ||||
| 31 | 2601990029 | 1.18 | 1.43 | |
| Bearing Bracket | ||||
| 34 | 2605807107 | 8.45 | 10.22 | |
| Drilling Spindle 1/2" | ||||
| 36 | 2606135081 | 6.54 | 7.91 | |
| Cylindrical Gear | ||||
| 37 | 2606320081 | 6.54 | 7.91 | |
| No longer available, no replacement | ||||
| 38 | 2600301066 | |||
| Keyless Chuck | ||||
| 39 | 2608572165 | 55.25 | 66.85 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.18 | 1.43 | |
| Auxiliary Handle Power Light | ||||
| 654 | 2602025137 | 13.93 | 16.86 | |
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| Armature 230-240V | ||||
| 803 | 2604011315 | 26.84 | 32.48 | |
| No longer available, no replacement | ||||
| 804 | 2609002056 | |||
| Nameplate | ||||
| 808 | 2601117921 | 2.71 | 3.28 | |
| groove ball bearing 8x22x7 608-2Z/C3 | ||||
| 814 | 3130900020 | 5.33 | 6.45 | |
| Carbon-Brush Set | ||||
| 816 | 2607014013 | 7.58 | 9.17 | |
| Drilling Spindle | ||||
| 836 | 2606135935 | 11.88 | 14.37 | |
| Fan | ||||
| 870 | 2606610097 | 2.71 | 3.28 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
