Here you will find all available parts and drawings of the 'Bosch 0603997961 (PSB500R)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

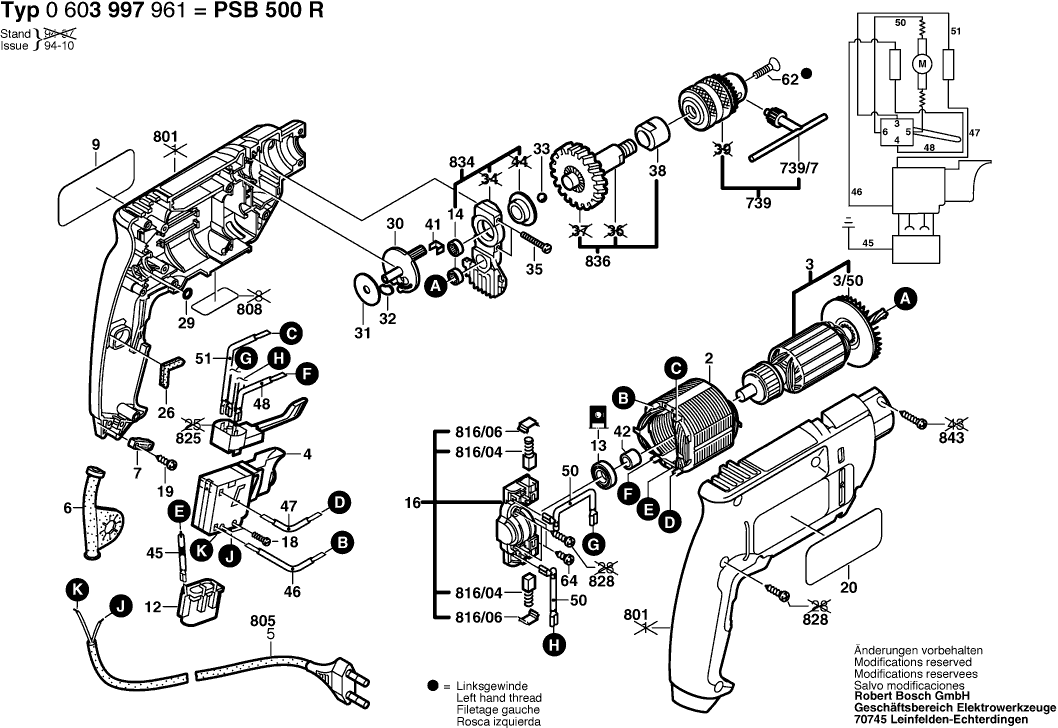

Technical drawing of model Bosch 0603997961 (PSB500R)
Spare parts list of model Bosch 0603997961 (PSB500R)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220515 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 3 | 2604010707 | |||
| Fan | ||||
| 3/50 | 1619P11262 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 4 | 2607200209 | |||
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118765 | 2.00 | 2.42 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| Needle-Roller Bearing | ||||
| 14 | 2600917003 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 16 | 2609992618 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910611019 | 2.86 | 3.46 | |
| Reference Plate | ||||
| 20 | 2601118672 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 26 | 2601022000 | |||
| No longer available, no replacement | ||||
| 29 | 2600210036 | |||
| Indexing Disk | ||||
| 30 | 2601990000 | 1.00 | 1.21 | |
| Supporting Disc | ||||
| 31 | 2600100034 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 32 | 2600025005 | 1.00 | 1.21 | |
| Ball | ||||
| 33 | 1903230011 | 2.40 | 2.90 | |
| Oval-Head Screw | ||||
| 35 | 2910951132 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 38 | 2600301013 | |||
| Disc Spring | ||||
| 41 | 2601290014 | 1.00 | 1.21 | |
| Spacer Ring | ||||
| 42 | 2600209004 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 45 | 2604448170 | |||
| No longer available, no replacement | ||||
| 46 | 2604448060 | |||
| No longer available, no replacement | ||||
| 47 | 2604448045 | |||
| Connecting Cable | ||||
| 48 | 2604448034 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 50 | 2604448115 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 51 | 2604448132 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 62 | 2603421229 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 64 | 2603490018 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 680 | 2602025057 | 11.65 | 14.10 | |
| Hex Screw | ||||
| 680/20 | 2911001211 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 680/30 | 2915191006 | |||
| No information available, not orderable | ||||
| 685 | 2605438503 | |||
| No longer available, no replacement | ||||
| 739 | 2608572034 | |||
| No longer available, no replacement | ||||
| 739/7 | 2603421209 | |||
| Housing Section | ||||
| 801 | 2605104837 | 10.90 | 13.19 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321913 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322017 | 1.49 | 1.80 | |
| Change-Over Switch | ||||
| 825 | 2607200231 | 14.94 | 18.08 | |
| Tapping Screw | ||||
| 828 | 2912401020 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 834 | 2605807917 | |||
| No longer available, no replacement | ||||
| 836 | 2606135923 | |||
| Torx Oval-Head Screw | ||||
| 843 | 2603490017 | 2.08 | 2.52 | |
