Here you will find all available parts and drawings of the 'Bosch 0603312603 (PSB450R)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

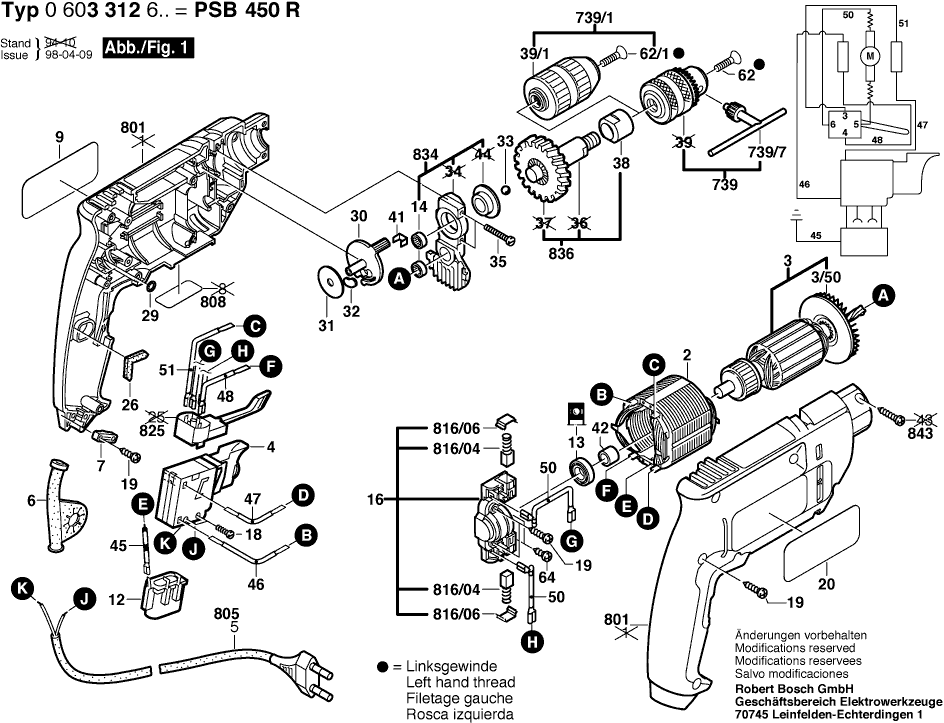

Technical drawing of model Bosch 0603312603 (PSB450R)
Spare parts list of model Bosch 0603312603 (PSB450R)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2604220423 | |||
| No longer available, no replacement | ||||
| 3 | 2604010707 | |||
| Fan | ||||
| 3/50 | 1619P11262 | 2.86 | 3.46 | |
| Switch | ||||
| 4 | 2607200202 | 39.14 | 47.36 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118671 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| Needle-Roller Bearing | ||||
| 14 | 2600917003 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 16 | 2609992618 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 20 | 2601118672 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 26 | 2601022000 | |||
| O-Ring | ||||
| 29 | 1900210000 | 1.49 | 1.80 | |
| Indexing Disk | ||||
| 30 | 2601990000 | 1.00 | 1.21 | |
| Supporting Disc | ||||
| 31 | 2600100034 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 32 | 2600025005 | 1.00 | 1.21 | |
| Ball | ||||
| 33 | 1903230011 | 2.40 | 2.90 | |
| Oval-Head Screw | ||||
| 35 | 2910951132 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 38 | 2600301013 | |||
| Disc Spring | ||||
| 41 | 2601290014 | 1.00 | 1.21 | |
| Spacer Ring | ||||
| 42 | 2600209004 | 2.40 | 2.90 | |
| Earth Conductor | ||||
| 45 | 2604448103 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 46 | 2604448060 | |||
| No longer available, no replacement | ||||
| 47 | 2604448045 | |||
| Connecting Cable | ||||
| 48 | 2604448034 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 50 | 2604448115 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 51 | 2604448132 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 62 | 2603421226 | 1.49 | 1.80 | |
| Countersunk-Head Screw | ||||
| 62/1 | 2603421229 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 64 | 2910611007 | 1.00 | 1.21 | |
| Hex Screw | ||||
| 680/20 | 2911011211 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 680/30 | 2915191006 | |||
| Key Chuck | ||||
| 739 | 1608571062 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 739/1 | 2608572034 | |||
| Chuck Wrench | ||||
| 739/7 | 2607950007 | 6.73 | 8.14 | |
| Housing Section | ||||
| 801 | 2605104837 | 10.90 | 13.19 | |
| Power supply cord | ||||
| 805 | 1607000388 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 2601119005 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321913 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 816/06 | 2601322017 | 1.49 | 1.80 | |
| Change-Over Switch | ||||
| 825 | 2607200231 | 14.94 | 18.08 | |
| Tapping Screw | ||||
| 828 | 2910611020 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 834 | 2605807917 | |||
| No longer available, no replacement | ||||
| 836 | 2606135923 | |||
| Tapping Screw | ||||
| 843 | 2910611006 | 1.49 | 1.80 | |
