Here you will find all available parts and drawings of the 'Bosch 0603246903 ( PSB380RE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

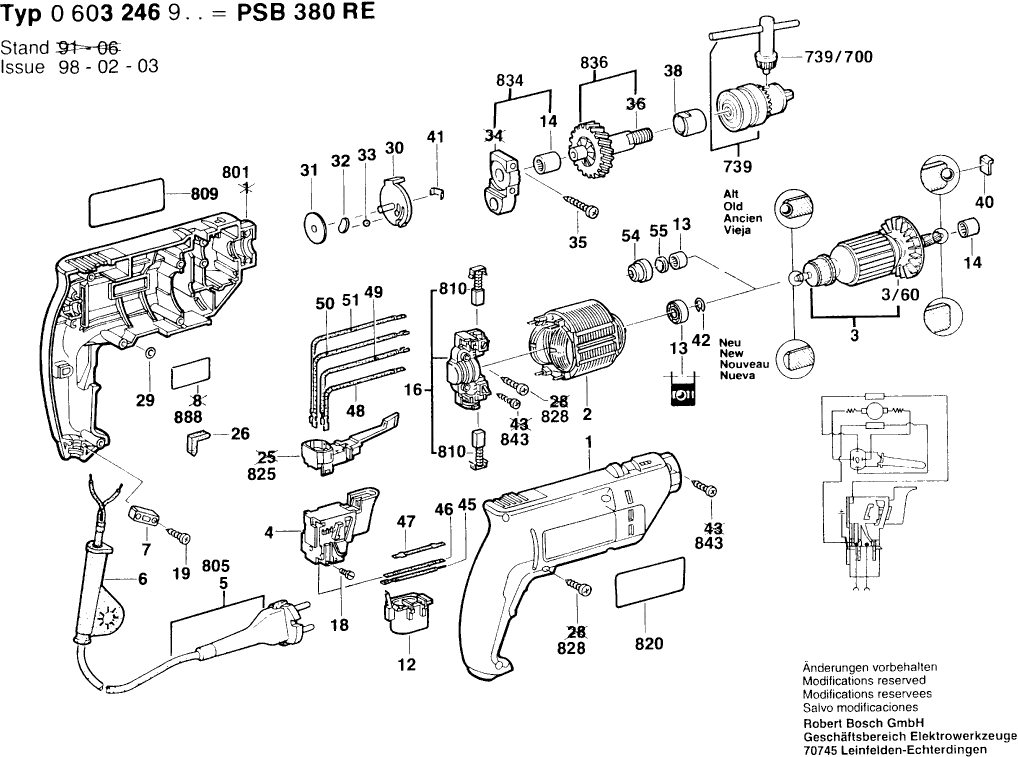

Technical drawing of model Bosch 0603246903 ( PSB380RE )
Spare parts list of model Bosch 0603246903 ( PSB380RE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 2604220555 | 11.88 | 14.37 | |
| Armature 220-240V | ||||
| 3 | 2604011048 | 23.75 | 28.74 | |
| Fan | ||||
| 3/60 | 1619P11262 | 2.24 | 2.71 | |
| Switch | ||||
| 4 | 2607200202 | 33.45 | 40.47 | |
| Grommet Ø6,9 MM | ||||
| 6 | 2600707059 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| groove ball bearing 8x19x6 | ||||
| 13 | 2600905046 | 8.45 | 10.22 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 14 | 2600917003 | 2.24 | 2.71 | |
| Brush Plate | ||||
| 16 | 2609992606 | 12.41 | 15.02 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x16-C-H | ||||
| 19 | 2910611019 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 26 | 2601022000 | |||
| O-Ring 5,0x1,5 MM | ||||
| 29 | 1900210000 | 1.18 | 1.43 | |
| Indexing Disk | ||||
| 30 | 2601990000 | 0.83 | 1.00 | |
| Supporting Disc | ||||
| 31 | 2600100034 | 0.83 | 1.00 | |
| Pressure Plate | ||||
| 32 | 2600025005 | 0.83 | 1.00 | |
| Ball DIN 5401-6 G28 | ||||
| 33 | 1903230011 | 1.94 | 2.35 | |
| Oval-Head Screw DIN 7985-M4x25-8.8 | ||||
| 35 | 2910951132 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 38 | 2600301013 | |||
| Pressure Plate | ||||
| 40 | 2601330005 | 1.18 | 1.43 | |
| Disc Spring | ||||
| 41 | 2601290014 | 0.83 | 1.00 | |
| Earth Conductor | ||||
| 45 | 2604448103 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 46 | 2604448060 | |||
| No longer available, no replacement | ||||
| 47 | 2604448045 | |||
| Connecting Cable L=88 MM WHITE | ||||
| 48 | 2604448034 | 1.18 | 1.43 | |
| Connecting Cable L=73 MM WHITE | ||||
| 50 | 2604448115 | 0.83 | 1.00 | |
| Connecting Cable L=103 MM BLUE | ||||
| 51 | 2604448132 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 739 | 1608571047 | |||
| Chuck Wrench SG2 | ||||
| 739/700 | 2607950007 | 5.33 | 6.45 | |
| Housing Section GREEN | ||||
| 801 | 2605104837 | 8.45 | 10.22 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 8.45 | 10.22 | |
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 825 | 2607200231 | 12.41 | 15.02 | |
| Tapping Screw DIN 7981-3,9x19-C-Z-ST | ||||
| 828 | 2912401020 | 0.83 | 1.00 | |
| Bushing | ||||
| 834 | 2605807917 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 836 | 2606135909 | |||
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 843 | 2910611006 | 1.18 | 1.43 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
