Here you will find all available parts and drawings of the 'Bosch 0603246303 ( PSB350 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

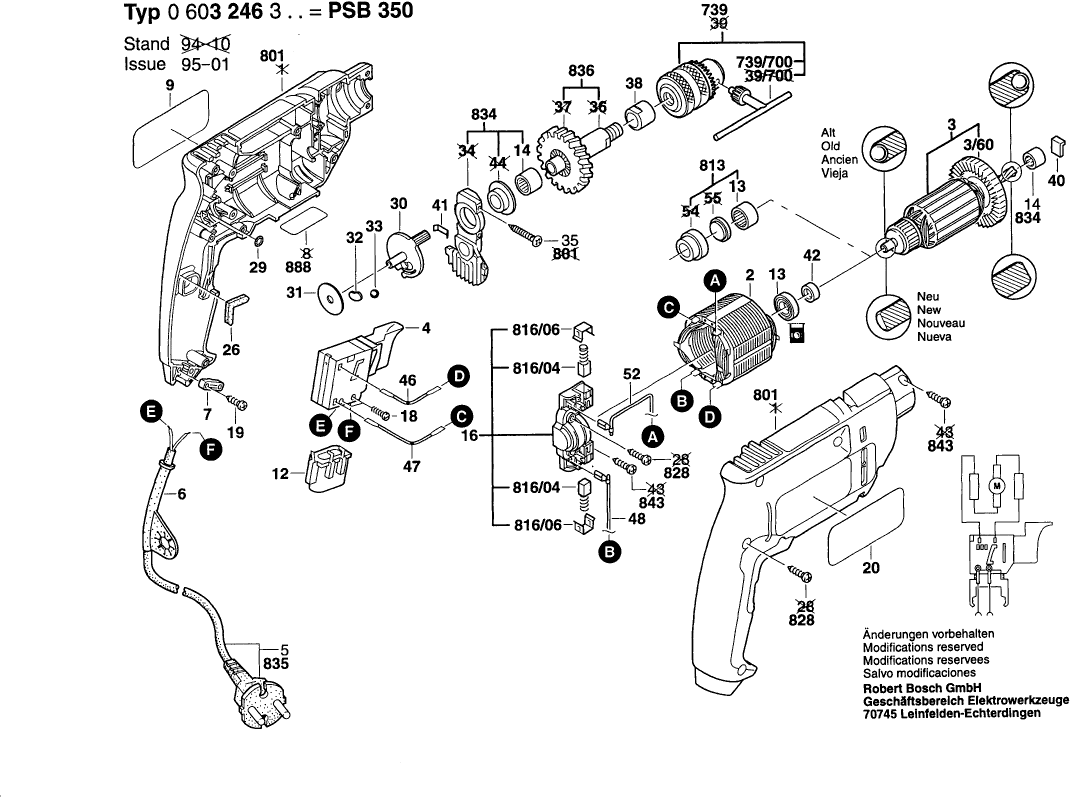

Technical drawing of model Bosch 0603246303 ( PSB350 )
Spare parts list of model Bosch 0603246303 ( PSB350 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2604220423 | |||
| Armature 220-240V | ||||
| 3 | 2604011048 | 23.75 | 28.74 | |
| Fan | ||||
| 3/60 | 1619P11262 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 4 | 2607200357 | |||
| Grommet Ø6,9 MM | ||||
| 6 | 2600707059 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601119150 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| groove ball bearing 8x19x6 | ||||
| 13 | 2600905046 | 8.45 | 10.22 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 14 | 2600917003 | 2.24 | 2.71 | |
| Brush Plate | ||||
| 16 | 2609992606 | 12.41 | 15.02 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x16-C-H | ||||
| 19 | 2910611019 | 2.24 | 2.71 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601119151 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 26 | 2601022000 | |||
| O-Ring 5,0x1,5 MM | ||||
| 29 | 1900210000 | 1.18 | 1.43 | |
| Indexing Disk | ||||
| 30 | 2601990000 | 0.83 | 1.00 | |
| Supporting Disc | ||||
| 31 | 2600100034 | 0.83 | 1.00 | |
| Pressure Plate | ||||
| 32 | 2600025005 | 0.83 | 1.00 | |
| Ball DIN 5401-6 G28 | ||||
| 33 | 1903230011 | 1.94 | 2.35 | |
| Oval-Head Screw DIN 7985-M4x25-8.8 | ||||
| 35 | 2910951132 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 38 | 2600301013 | |||
| Pressure Plate | ||||
| 40 | 2601330005 | 1.18 | 1.43 | |
| Disc Spring | ||||
| 41 | 2601290014 | 0.83 | 1.00 | |
| Spacer Ring | ||||
| 42 | 2600209004 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 46 | 2604448060 | |||
| No longer available, no replacement | ||||
| 47 | 2604448045 | |||
| Connecting Cable | ||||
| 48 | 2604448203 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 52 | 2604448123 | |||
| Warning Plate | ||||
| 180 | 1611110880 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 210 | 2609130011 | |||
| No longer available, no replacement | ||||
| 739 | 1608571047 | |||
| Chuck Wrench SG2 | ||||
| 739/700 | 2607950007 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 780 | 2602025032 | |||
| Housing Section GREEN | ||||
| 801 | 2605104837 | 8.45 | 10.22 | |
| Needle bearing | ||||
| 813 | 2600917901 | 5.83 | 7.05 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321915 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322017 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-3,9x19-C-Z-ST | ||||
| 828 | 2912401020 | 0.83 | 1.00 | |
| Bushing | ||||
| 834 | 2605807917 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 836 | 2606135909 | |||
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 843 | 2910611006 | 1.18 | 1.43 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
