Here you will find all available parts and drawings of the 'Bosch 3603JB0300 ( PSB18LI-2ERGO )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

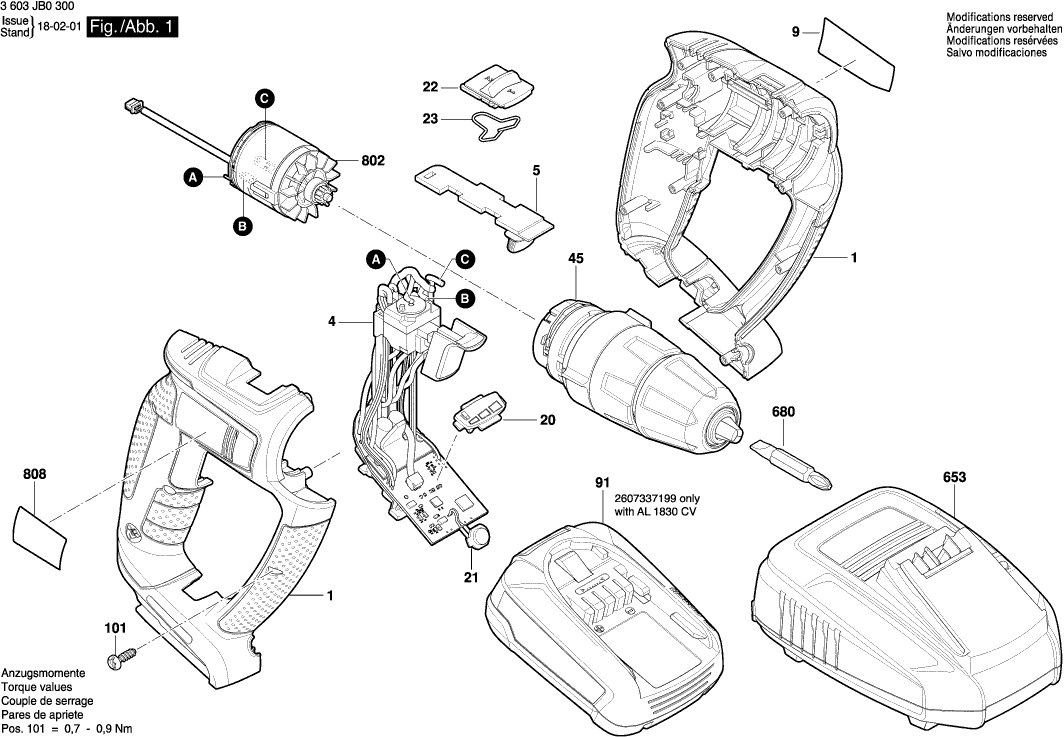

Technical drawing of model Bosch 3603JB0300 ( PSB18LI-2ERGO )

Spare parts list of model Bosch 3603JB0300 ( PSB18LI-2ERGO )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing
1 160580658X 13.93 16.86
Electronic Module
4 160723359Y 81.47 98.58
Lever
5 1600A004WT 2.24 2.71
Manufacturer's nameplate PSB 18 LI-2 Ergonomic
9 160111C0DV 1.94 2.35
Manufacturer's nameplate PSB Expert+ Li-2 Ergonom
9 160111C0WF 1.94 2.35
Light Conductor
20 1600A004WV 0.83 1.00
Lens
21 1600A004WW 2.24 2.71
Switch Slide
22 1600A004WR 2.24 2.71
Spring
23 2609004496 1.18 1.43
Gear Box
45 1600A004DR 67.25 81.37
Battery Pack PBA 18V 2,5Ah W-B 45Wh
91 1607A350RU 73.72 89.20
Torx Oval-Head Screw 3x10
101 2603490017 1.70 2.06
Charger GB AL 1830 CV 230/14,4-18V 1h
653 2607225967 67.25 81.37
Charger AUS AL 1830 CV 230/14,4-18V 1h
653 2607225969 67.25 81.37
Fast Charger J AL 1830 CV 100/14,4-18V 1h
653 2607225975 67.25 81.37
Fast Charger EU AL 2215 CV 230/14,4-18V, 1h
653 2607225471 55.25 66.85
Fast Charger EU AL 1830 CV 230/14,4-18V 1h
653 2607225965 44.82 54.23
Screwdriver Bit
680 2609160063 2.71 3.28
Brushless DC motor
802 1600A008LG 55.25 66.85
Nameplate
808 160111A2DT 1.94 2.35
