Here you will find all available parts and drawings of the 'Bosch 0603385803 ( PSB1000RCA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

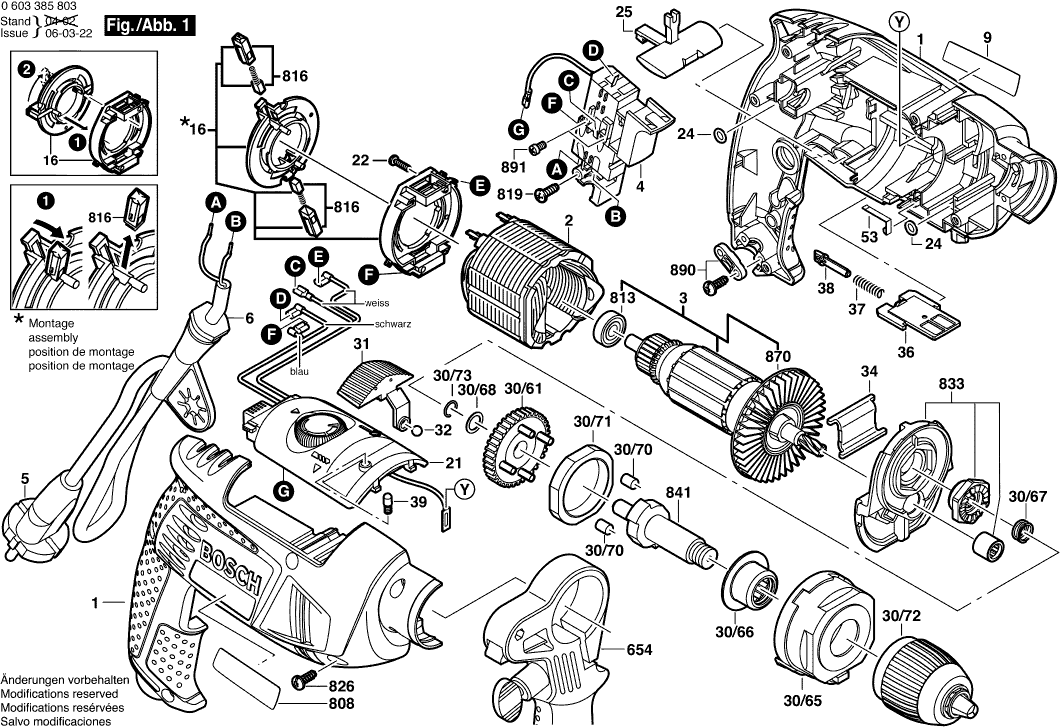

Technical drawing of model Bosch 0603385803 ( PSB1000RCA )
Spare parts list of model Bosch 0603385803 ( PSB1000RCA )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605105053 | 9.53 | 11.53 | |
| Field 230V | ||||
| 2 | 2604220710 | 18.19 | 22.01 | |
| Armature 230-240V | ||||
| 3 | 2604011338 | 49.56 | 59.97 | |
| No longer available, no replacement | ||||
| 4 | 2607200501 | |||
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 5 | 1607000388 | 9.53 | 11.53 | |
| No longer available, no replacement | ||||
| 6 | 2600707066 | |||
| Manufacturer's nameplate PSB 1000 RCA | ||||
| 9 | 2601116600 | 1.70 | 2.06 | |
| Brush Plate | ||||
| 16 | 2604337061 | 11.88 | 14.37 | |
| Speed governor 230V | ||||
| 21 | 2607230094 | 29.75 | 36.00 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 22 | 2910611002 | 0.83 | 1.00 | |
| O-Ring 5,0x1,5 MM | ||||
| 24 | 1900210000 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 25 | 2602098020 | 2.71 | 3.28 | |
| Carrier 1,0 M | ||||
| 30/61 | 2606320083 | 11.88 | 14.37 | |
| Gear Cover | ||||
| 30/65 | 2605808084 | 2.71 | 3.28 | |
| Flanged Bearing | ||||
| 30/66 | 2605805013 | 5.83 | 7.05 | |
| Compression Spring | ||||
| 30/67 | 2604616006 | 1.18 | 1.43 | |
| Shim 0,3 MM | ||||
| 30/68 | 2600101047 | 1.18 | 1.43 | |
| Roller Body | ||||
| 30/70 | 2602329038 | 1.18 | 1.43 | |
| Retaining snap ring | ||||
| 30/71 | 2600290044 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 30/72 | 2608572173 | |||
| Retaining ring DIN 7993-A8 | ||||
| 30/73 | 2916540005 | 0.83 | 1.00 | |
| Change-Over Switch | ||||
| 31 | 2602098019 | 1.70 | 2.06 | |
| Ball | ||||
| 32 | 1903230023 | 0.83 | 1.00 | |
| Guiding Plate | ||||
| 34 | 2601334013 | 1.18 | 1.43 | |
| Locking Piece | ||||
| 36 | 2605510215 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 37 | 2604610100 | 0.83 | 1.00 | |
| Bolt | ||||
| 38 | 2603105109 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 39 | 2600590006 | 1.18 | 1.43 | |
| Contact Strap | ||||
| 53 | 2601329043 | 1.94 | 2.35 | |
| Auxiliary Handle BLACK | ||||
| 654 | 2602025125 | 7.58 | 9.17 | |
| Filter Element | ||||
| 655 | 2607030109 | 36.85 | 44.59 | |
| Impulse Starting Device RED | ||||
| 655/10 | 2605510217 | 0.83 | 1.00 | |
| Dust Bag BLACK | ||||
| 655/830 | 2605411902 | 4.70 | 5.69 | |
| Intake manifold module BLACK | ||||
| 655/880 | 2605190920 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 655/880/16 | 2600206003 | |||
| Marking Plate | ||||
| 808 | 2601116720 | 1.70 | 2.06 | |
| Ball Bearing 7x19x6 | ||||
| 813 | 2600905032 | 4.10 | 4.96 | |
| Carbon-Brush Set | ||||
| 816 | 2609160125 | 5.33 | 6.45 | |
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 819 | 2910611006 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 826 | 2910611020 | 1.18 | 1.43 | |
| Bearing Bracket | ||||
| 833 | 2605807939 | 11.88 | 14.37 | |
| Drilling Spindle 1/2" | ||||
| 841 | 2606135931 | 13.93 | 16.86 | |
| Fan | ||||
| 870 | 2606610115 | 3.31 | 4.01 | |
| Fastening parts kit | ||||
| 890 | 2607001305 | 3.31 | 4.01 | |
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
