Here you will find all available parts and drawings of the 'Bosch 3603A73501 ( PSB1000-2RCA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

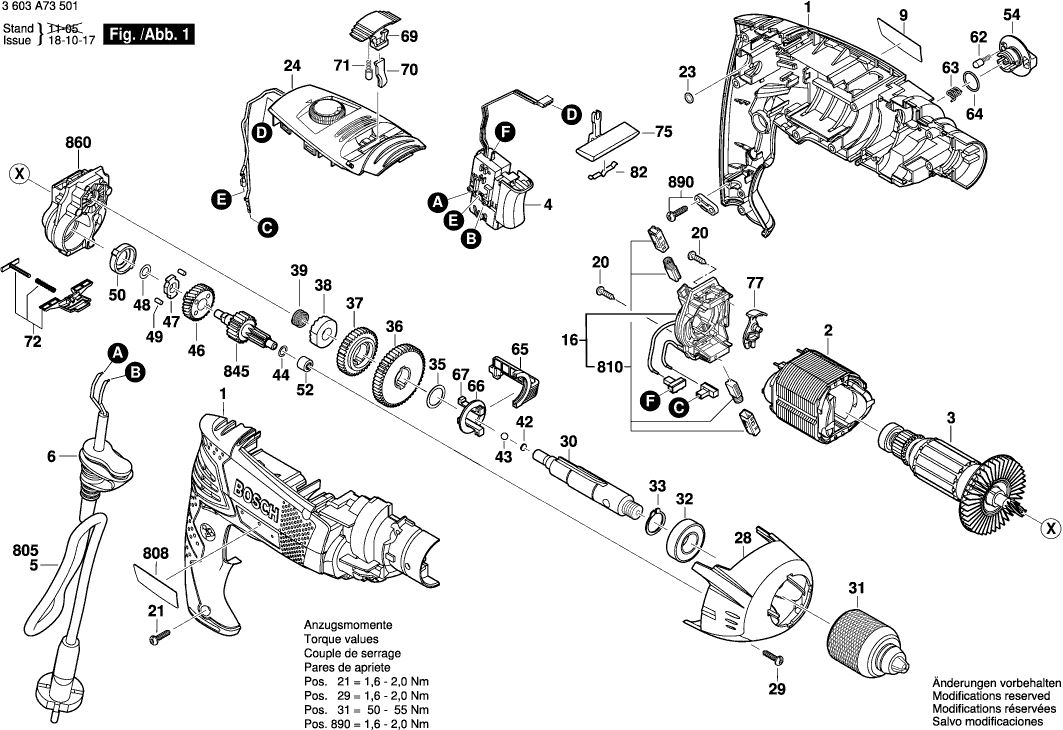

Technical drawing of model Bosch 3603A73501 ( PSB1000-2RCA )

Spare parts list of model Bosch 3603A73501 ( PSB1000-2RCA )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section GREEN
1 2609005616 13.93 16.86
Field 230V
2 2604220710 18.19 22.01
Armature 230V
3 2609002980 44.82 54.23
Switch
4 1607200517 18.19 22.01
Power supply cord EU 4,15m 2 x 1,00mm H05 VV-F
5 2604460306 10.73 12.98
Grommet Ø6,4-Ø7,2x76 MM
6 2609003080 1.18 1.43
Manufacturer's nameplate PSB 1000-2 RCE
9 2609003472 1.94 2.35
Manufacturer's nameplate PSB 1000-2 RCA
9 2609003473 1.94 2.35
Brush Holder
16 2609007425 11.88 14.37
Tapping Screw DIN 7981-ST2,2x9,5-C-H
20 2910611002 0.83 1.00
Screw 4x16
21 2603490022 0.83 1.00
O-Ring 5,0x1,5 MM
23 1900210000 1.18 1.43
Rpm Actuator
24 1607233361 40.61 49.14
Cover
28 2609002957 8.45 10.22
Screw 4x16
29 2603490022 0.83 1.00
Drilling Spindle
30 2606135130 18.19 22.01
No longer available, no replacement
31 2609003252
groove ball bearing 17x35x10
32 1900905163 8.45 10.22
Spring retaining ring DIN 471 17x1 MM
33 2916650008 1.18 1.43
Shim 0,5 MM
35 2600100695 1.18 1.43
Cylindrical Gear
36 2606317084 10.73 12.98
Cylindrical Gear
37 2606317085 7.58 9.17
Catch Disk
38 1600A00RX5 1.70 2.06
Compression Spring
39 2604616013 1.94 2.35
Shim washer 1,0 MM
42 2600000021 1.18 1.43
Shim washer 1,35 MM
42 2600000030 1.18 1.43
Shim washer 1,7 MM
42 2600000031 1.18 1.43
Ball DIN 5401-5 G28
43 1903230009 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
43 1903230010 0.83 1.00
Ball 5,25 MM
43 2603230007 0.83 1.00
Shim 0,3 MM
44 2600100607 1.18 1.43
Carrier
46 160312304U 10.73 12.98
Eccentric
47 2602210043 2.24 2.71
Shim 0,2 MM THICK
48 1600100632 0.83 1.00
Roller Body
49 2609007376 0.83 1.00
Retaining snap ring
50 2600202008 3.31 4.01
Needle-Roller Bearing Ø6 MM
52 2600914010 2.24 2.71
Rotary Knob
54 2609002959 3.31 4.01
Ratchet Cap
62 2600590006 1.18 1.43
Torsion Spring
63 2609004109 1.18 1.43
O-Ring 14,0x1,3 MM
64 3600210014 1.18 1.43
Fork Lever
65 2609002961 1.70 2.06
Retaining Washer
66 2600101671 1.18 1.43
Flat Key
67 2602300032 2.71 3.28
Changeover Lever
69 2609002962 1.70 2.06
Guiding Plate
70 2601990044 1.18 1.43
Ratchet Cap
71 2600590006 1.18 1.43
Shut-off Valve
72 2609002963 3.31 4.01
Change-Over Switch
75 2609002954 1.70 2.06
Indicator button
77 2609002955 1.94 2.35
Leaf Spring
82 2601290030 0.83 1.00
Auxiliary Handle
654 2609002967 9.53 11.53
Depth-Gauge
655 2609005615 3.31 4.01
Lock
656/14 2609003805 1.70 2.06
Dust container
656/810 2609003983 8.45 10.22
No longer available, no replacement
656/812 2600206003
Filter
656/9 2609002929 5.83 7.05
Power supply cord CN 2,65m 2 x 0,75mm H05 W-F
805 1607000387 8.45 10.22
Nameplate
808 160111A2JG 1.94 2.35
No longer available, no replacement
810 1607000CJ1
Transmission
845 2606309940 15.71 19.01
No longer available, no replacement
860 2609002984
Fastening parts kit
890 2607001305 3.31 4.01
