Here you will find all available parts and drawings of the 'Bosch 3603CA6000 (PSA900E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

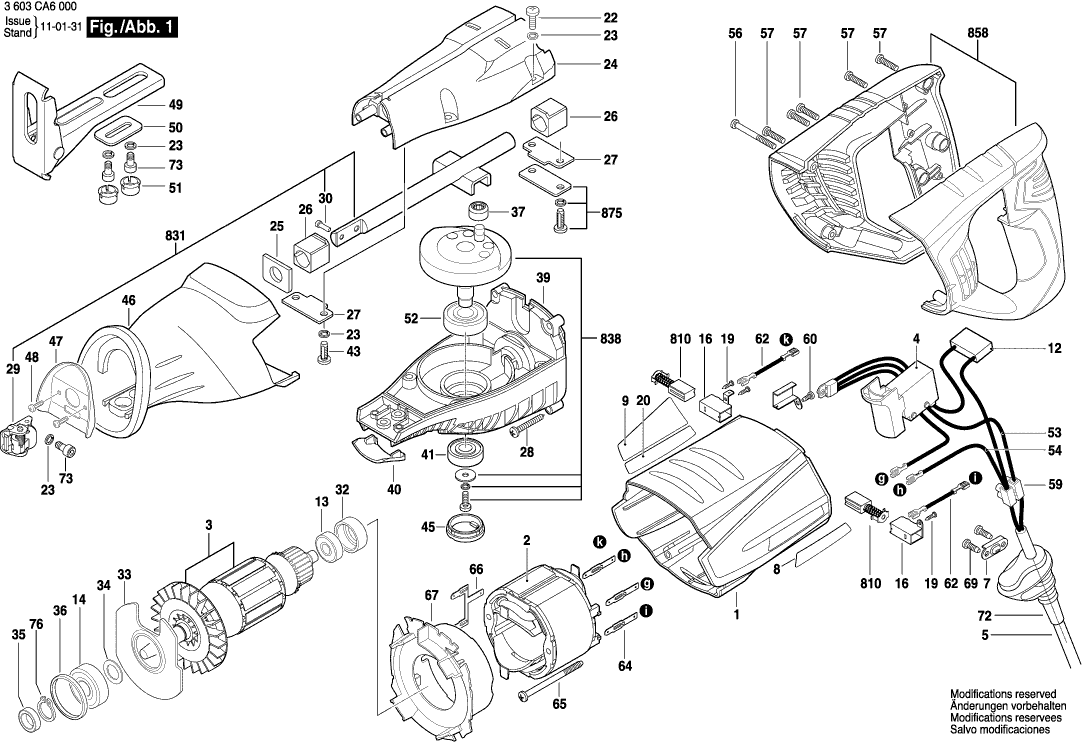

Technical drawing of model Bosch 3603CA6000 (PSA900E)
Spare parts list of model Bosch 3603CA6000 (PSA900E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1619PA1317 | 11.37 | 13.76 | |
| Field | ||||
| 2 | 1619PA1321 | 27.81 | 33.65 | |
| Armature | ||||
| 3 | 1619PA1324 | 34.82 | 42.13 | |
| On-Off Switch | ||||
| 4 | 1619PA1684 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 5 | 1619PA1333 | 13.13 | 15.89 | |
| Cable Clip | ||||
| 7 | 2610956868 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 8 | 1619PA1336 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1619PA1337 | 1.00 | 1.21 | |
| Suppression Capacitor | ||||
| 12 | 1619PA1318 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 13 | 2610956882 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 14 | 2610956893 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 2610956874 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 19 | 1619PA1320 | 1.00 | 1.21 | |
| Nameplate | ||||
| 20 | 1619PA1338 | 2.40 | 2.90 | |
| Thread-Forming Screw | ||||
| 22 | 2610956894 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 23 | 1619P04820 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 24 | 1619PA1332 | 9.67 | 11.70 | |
| Felt Seal | ||||
| 25 | 1619P04821 | 1.49 | 1.80 | |
| Bushing | ||||
| 26 | 2610956896 | 6.73 | 8.14 | |
| Sealing Plate | ||||
| 27 | 2610956895 | 2.08 | 2.52 | |
| Self-Cutting Screw | ||||
| 28 | 2610956899 | 1.49 | 1.80 | |
| Blade Holder | ||||
| 29 | 1619PA4168 | 14.94 | 18.08 | |
| Pin | ||||
| 30 | 1619P04839 | 1.00 | 1.21 | |
| Bearing Holder | ||||
| 32 | 2610956881 | 1.00 | 1.21 | |
| Sealing Plate | ||||
| 33 | 2610956887 | 6.73 | 8.14 | |
| Washer | ||||
| 34 | 2610956884 | 1.00 | 1.21 | |
| Bushing | ||||
| 35 | 2610956886 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 36 | 2610956885 | 1.49 | 1.80 | |
| Needle-Roller Bearing | ||||
| 37 | 1619P04823 | 9.67 | 11.70 | |
| Gear Cover | ||||
| 39 | 1619PA1328 | 31.42 | 38.02 | |
| Support Plate | ||||
| 40 | 1619P04824 | 2.86 | 3.46 | |
| groove ball bearing | ||||
| 41 | 2610956889 | 7.46 | 9.03 | |
| Thread-Forming Screw | ||||
| 43 | 1619P03322 | 1.00 | 1.21 | |
| Cover | ||||
| 45 | 2610956888 | 1.00 | 1.21 | |
| Insulating Sleeve | ||||
| 46 | 1619PA1329 | 16.79 | 20.32 | |
| Sealing plate | ||||
| 47 | 1619PA1330 | 2.86 | 3.46 | |
| Thread-Forming Screw | ||||
| 48 | 1619P04827 | 1.00 | 1.21 | |
| Supporting foot | ||||
| 49 | 2610956898 | 10.68 | 12.92 | |
| Clamp | ||||
| 50 | 1619P04828 | 2.40 | 2.90 | |
| Cover | ||||
| 51 | 2610956900 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 52 | 1619PA1587 | 5.81 | 7.03 | |
| Connecting Cable | ||||
| 53 | 1619PA1334 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 54 | 1619PA1335 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 56 | 2610956864 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 57 | 2610956865 | 2.08 | 2.52 | |
| Terminal Block | ||||
| 59 | 2610956870 | 2.40 | 2.90 | |
| Screw | ||||
| 60 | 2610956869 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 62 | 1619P04840 | 2.86 | 3.46 | |
| Connecting terminal | ||||
| 64 | 2610956878 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 65 | 1619P04833 | 2.08 | 2.52 | |
| Blade terminal | ||||
| 66 | 1619PA1322 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 67 | 1619PA1323 | 2.86 | 3.46 | |
| Tapping Screw | ||||
| 69 | 2610956867 | 1.00 | 1.21 | |
| Cord guard | ||||
| 72 | 1619PA1319 | 2.08 | 2.52 | |
| Hex Socket Head Cap Screw | ||||
| 73 | 1619PA1331 | 2.86 | 3.46 | |
| Hex Socket Head Cap Screw | ||||
| 73 | 1619P05408 | 2.40 | 2.90 | |
| Clip | ||||
| 76 | 1619PA1326 | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 810 | 2610013260 | 12.82 | 15.51 | |
| Carbon-Brush Set | ||||
| 810 | 2610956917 | 4.94 | 5.98 | |
| Spindle Assembly | ||||
| 831 | 1619PA0471 | 20.39 | 24.67 | |
| Bevel Gear | ||||
| 838 | 1619PA1982 | 34.82 | 42.13 | |
| Set Of Handles | ||||
| 858 | 1619PA1340 | 16.79 | 20.32 | |
| Plate | ||||
| 875 | 1619PA1983 | 4.94 | 5.98 | |
