Here you will find all available parts and drawings of the 'Bosch 0603239503 (PRT23)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

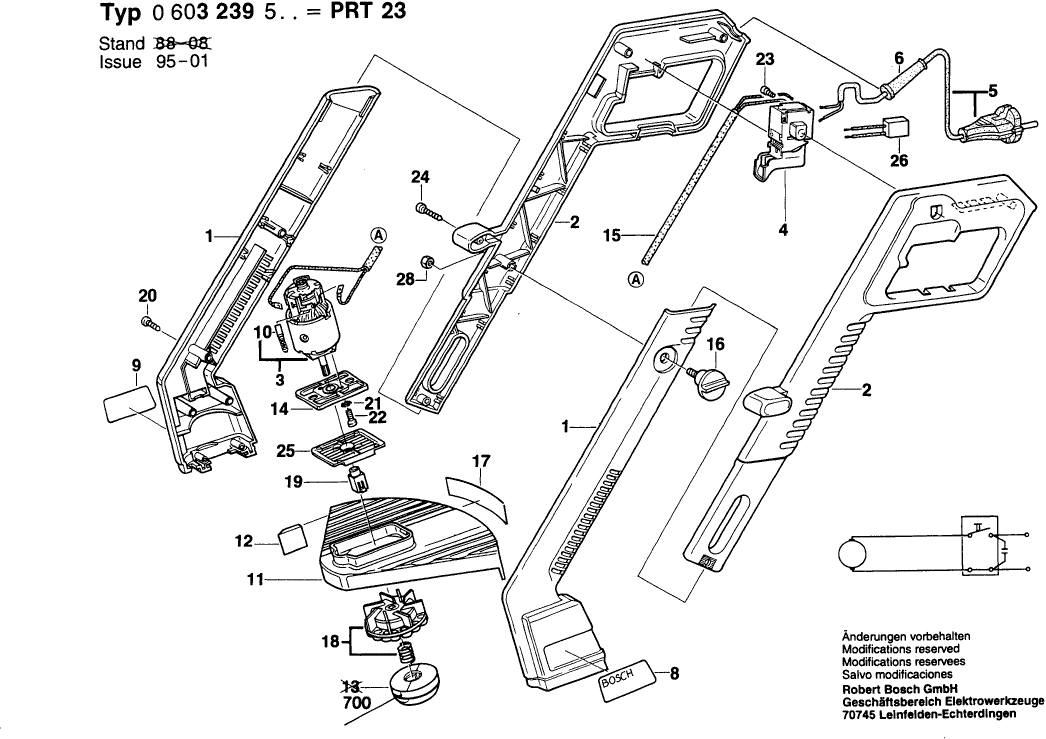

Technical drawing of model Bosch 0603239503 (PRT23)
Spare parts list of model Bosch 0603239503 (PRT23)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1609202313 | |||
| Housing Half | ||||
| 2 | 1609202314 | 23.90 | 28.92 | |
| Alternating-Current Motor | ||||
| 3 | 1609202322 | 80.26 | 97.11 | |
| No longer available, no replacement | ||||
| 4 | 2607200261 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| No longer available, no replacement | ||||
| 6 | 1609201893 | |||
| Nameplate | ||||
| 8 | 1601110619 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1601110623 | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 10 | 1609202316 | 7.46 | 9.03 | |
| No longer available, no replacement | ||||
| 11 | 1609201894 | |||
| Cutter Plate 24x7x0.8 MM | ||||
| 12 | 1609202358 | 2.08 | 2.52 | |
| Motor Plate | ||||
| 14 | 1609202317 | 3.44 | 4.16 | |
| Connecting Cable | ||||
| 15 | 1609202318 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 16 | 1609201897 | |||
| Reference Plate | ||||
| 17 | 1601110536 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 18 | 1609201898 | |||
| Support clamp | ||||
| 19 | 1609202324 | 2.08 | 2.52 | |
| Tapping Screw 3,5x20 MM | ||||
| 20 | 1609202016 | 1.49 | 1.80 | |
| Toothed lock washer | ||||
| 21 | 2916030006 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 22 | 2910641118 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 23 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw 3,5x35 MM | ||||
| 24 | 1609202017 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 25 | 1609202319 | |||
| Suppression Filter | ||||
| 26 | 1607328034 | 4.18 | 5.06 | |
| Hex Nut | ||||
| 28 | 2915011005 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 700 | F016102388 | |||
