Here you will find all available parts and drawings of the 'Bosch 0603239103 ( PRT200 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

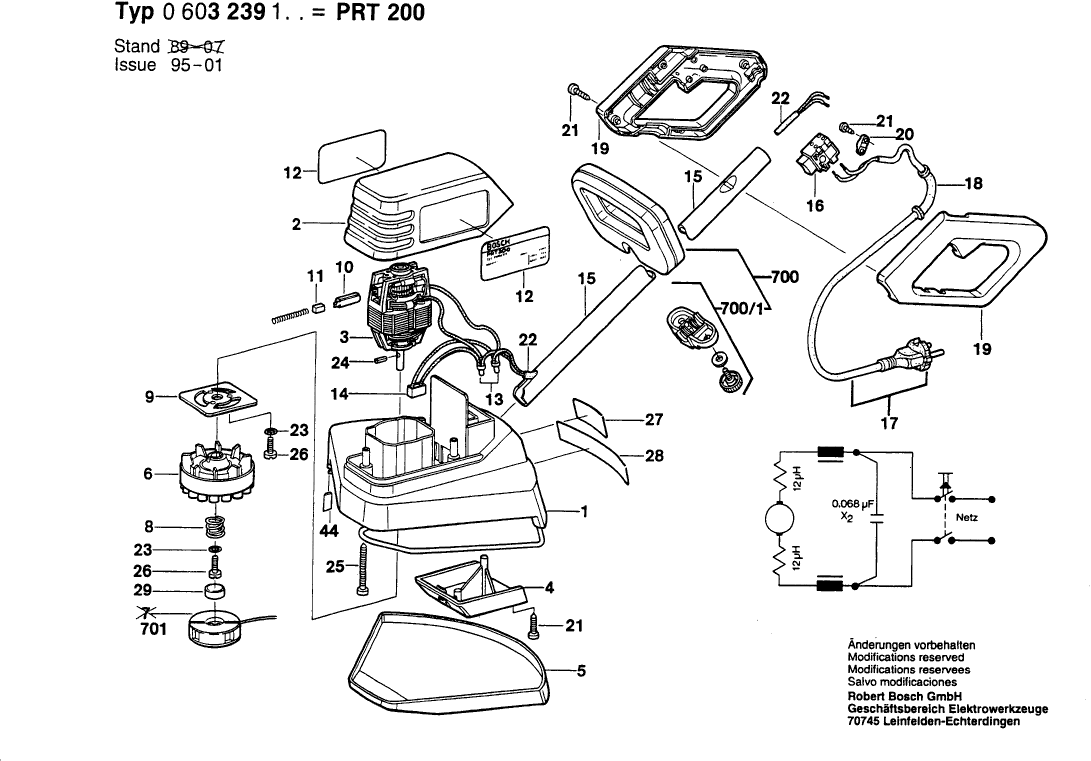

Technical drawing of model Bosch 0603239103 ( PRT200 )
Spare parts list of model Bosch 0603239103 ( PRT200 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1609201289 | |||
| Housing Cover | ||||
| 2 | 1609201296 | 12.41 | 15.02 | |
| Alternating-Current Motor 220V | ||||
| 3 | 1609201300 | 91.56 | 110.79 | |
| Housing Cover | ||||
| 4 | 1609201297 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 6 | 1609201305 | |||
| No longer available, no replacement | ||||
| 8 | 1609201307 | |||
| No longer available, no replacement | ||||
| 9 | 1609201308 | |||
| Brush Holder | ||||
| 10 | 1609201310 | 2.24 | 2.71 | |
| Carbon-Brush Set | ||||
| 11 | 1609201311 | 5.83 | 7.05 | |
| Manufacturer's nameplate | ||||
| 12 | 1601110242 | 0.83 | 1.00 | |
| connecting terminal | ||||
| 13 | 1609201312 | 1.70 | 2.06 | |
| Suppression Filter | ||||
| 14 | 1609201313 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 15 | 1609201314 | |||
| On-Off Switch | ||||
| 16 | 1609201315 | 5.83 | 7.05 | |
| No longer available, no replacement | ||||
| 17 | 2604460255 | |||
| Grommet Ø6,4-Ø7,5x75 MM | ||||
| 18 | 1600703016 | 0.83 | 1.00 | |
| Handle | ||||
| 19 | 1609201764 | 13.93 | 16.86 | |
| Cable Clip | ||||
| 20 | 2601035001 | 1.18 | 1.43 | |
| Parts Set 4x20 MM/4x13 MM/4x25 MM | ||||
| 21 | 1609201331 | 2.71 | 3.28 | |
| Cable | ||||
| 22 | 1609201332 | 5.83 | 7.05 | |
| Serrated Lock-Washer A 4,3 DIN 6798-ST | ||||
| 23 | 2916070106 | 1.18 | 1.43 | |
| Slotted Spring Pin 3x20 DIN 1481 | ||||
| 24 | 2917760081 | 0.83 | 1.00 | |
| Tapping Screw | ||||
| 25 | 1609201316 | 1.18 | 1.43 | |
| Socket head cap screw DIN 84-AM4x12-8.8 | ||||
| 26 | 2910021122 | 1.70 | 2.06 | |
| Nameplate | ||||
| 27 | 1601110244 | 0.83 | 1.00 | |
| Reference Plate CAUTION | ||||
| 28 | 1601110140 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 29 | 1609201395 | |||
| Blade Plate 38x10x1 MM | ||||
| 44 | 1609201464 | 1.70 | 2.06 | |
| No information available, not orderable | ||||
| 650 | 2604483000 | |||
| Extra Handle GREEN | ||||
| 700 | 1609201277 | 13.93 | 16.86 | |
| Tensioner Parts Set | ||||
| 700 | 1609201326 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 701 | 1609201653 | |||
| No longer available, no replacement | ||||
| 702 | 1609201653 | |||
