Here you will find all available parts and drawings of the 'Bosch 3603J19700 (PRIO)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

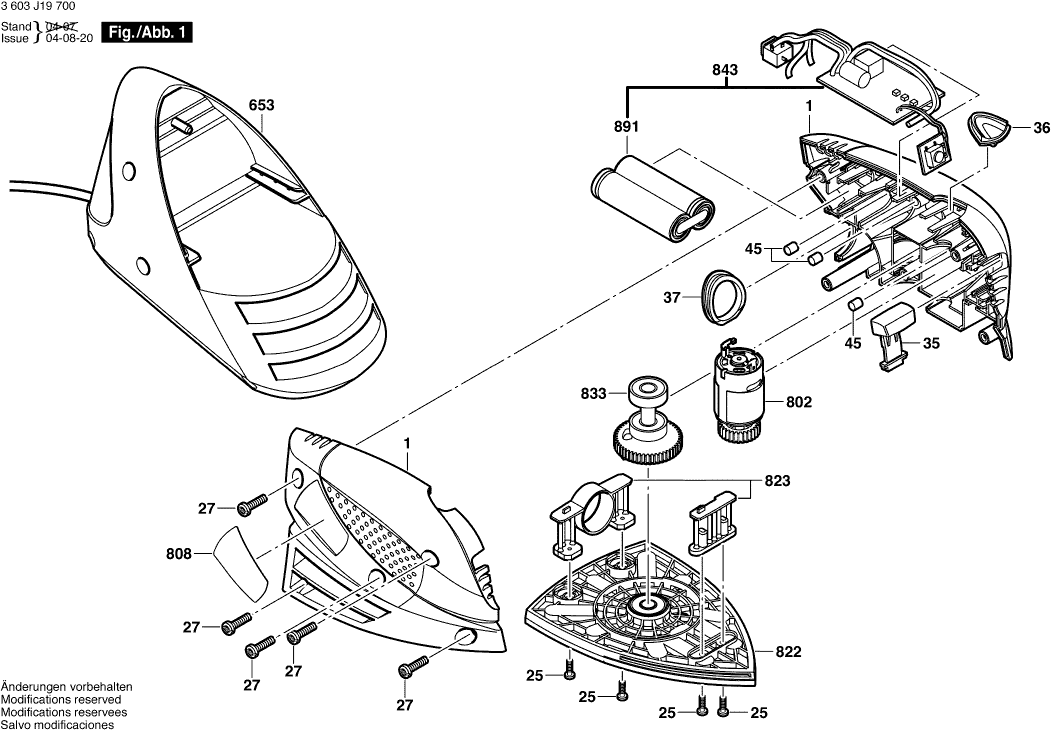

Technical drawing of model Bosch 3603J19700 (PRIO)
Spare parts list of model Bosch 3603J19700 (PRIO)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609000267 | 17.60 | 21.30 | |
| Torx Oval-Head Screw | ||||
| 25 | 2603490017 | 2.08 | 2.52 | |
| Screw | ||||
| 27 | 2603490022 | 1.00 | 1.21 | |
| Push-Button | ||||
| 35 | 2609000280 | 1.94 | 2.35 | |
| State-Of-Charge Indicator | ||||
| 36 | 2609000281 | 0.83 | 1.00 | |
| Rubber Plug | ||||
| 37 | 2609000337 | 1.90 | 2.30 | |
| Rubber Buffer | ||||
| 45 | 2609000549 | 1.00 | 1.21 | |
| Charger GB 230/7,2V | ||||
| 653 | 2607225087 | 26.84 | 32.48 | |
| No longer available, no replacement | ||||
| 802 | 2609000605 | |||
| Nameplate | ||||
| 808 | 2609000336 | 3.04 | 3.68 | |
| Sander Plate | ||||
| 822 | 2609001937 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 823 | 2609000686 | |||
| Toothed Gear | ||||
| 833 | 2609000607 | 26.62 | 32.21 | |
| No longer available, no replacement | ||||
| 843 | 2609000685 | |||
| No longer available, no replacement | ||||
| 891 | 2609000268 | |||
