Here you will find all available parts and drawings of the 'Bosch 0603261603 ( POF600ACE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

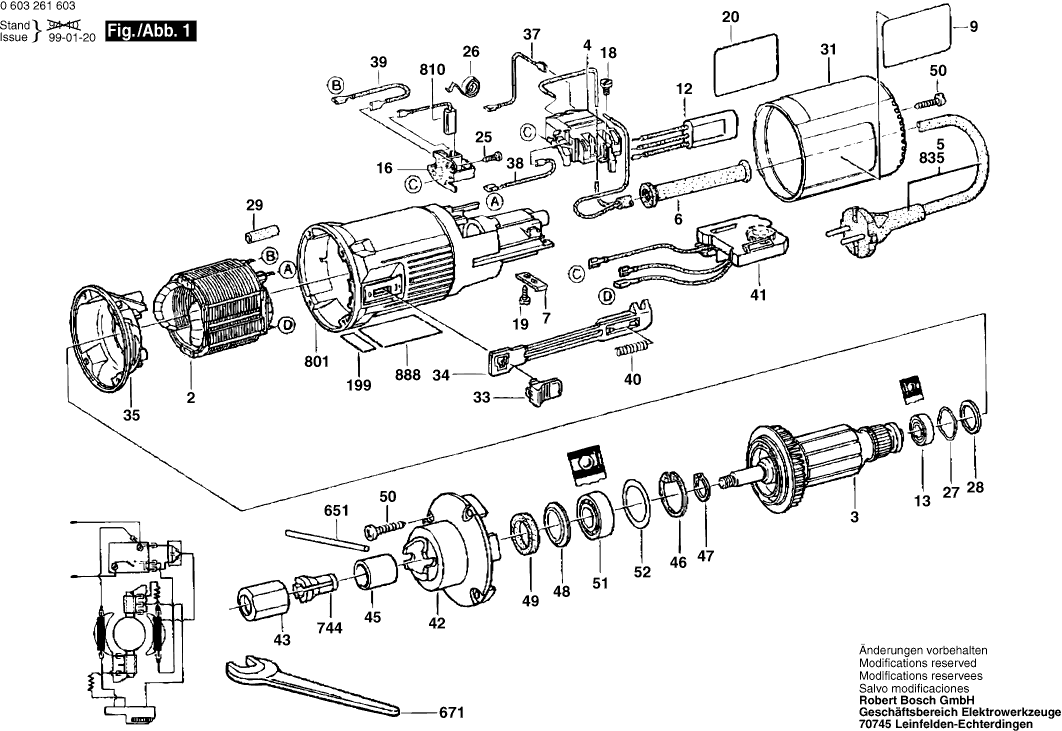

Technical drawing of model Bosch 0603261603 ( POF600ACE )
Spare parts list of model Bosch 0603261603 ( POF600ACE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 220-230V | ||||
| 2 | 2604220491 | 18.19 | 22.01 | |
| Armature 220-230V | ||||
| 3 | 2604010769 | 60.65 | 73.39 | |
| On-Off Switch | ||||
| 4 | 1607200086 | 8.45 | 10.22 | |
| Grommet Ø6,5-Ø6,9x95 MM | ||||
| 6 | 2600703012 | 2.24 | 2.71 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118932 | 2.71 | 3.28 | |
| Suppression Filter | ||||
| 12 | 2607329124 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 13 | 2600905018 | |||
| Brush Holder | ||||
| 16 | 1600A003G4 | 2.71 | 3.28 | |
| Brush Holder | ||||
| 16 | 2601323022 | 2.24 | 2.71 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x12 | ||||
| 19 | 2603490021 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 20 | 2601118932 | 2.71 | 3.28 | |
| Torx Oval-Head Screw 3x10 | ||||
| 25 | 2603490017 | 1.70 | 2.06 | |
| Spiral Spring | ||||
| 26 | 2604652009 | 1.18 | 1.43 | |
| Shim | ||||
| 27 | 2600150033 | 1.70 | 2.06 | |
| Shim washer 0,3 MM | ||||
| 28 | 2600101027 | 1.18 | 1.43 | |
| Shim washer 0,2 MM | ||||
| 28 | 2600101665 | 1.18 | 1.43 | |
| Shim washer 0,5 MM | ||||
| 28 | 2600101667 | 1.18 | 1.43 | |
| Shrinkable Tube | ||||
| 29 | 1610712034 | 0.83 | 1.00 | |
| Housing Cover GREEN | ||||
| 31 | 1600508009 | 5.33 | 6.45 | |
| Ratchet Cap | ||||
| 33 | F016F05700 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 34 | 1602319002 | 1.94 | 2.35 | |
| Cover Disc | ||||
| 35 | 2601328045 | 1.70 | 2.06 | |
| Connecting Cable L=52MM WHITE | ||||
| 37 | 2604448016 | 1.18 | 1.43 | |
| Cable | ||||
| 38 | 2604448149 | 1.18 | 1.43 | |
| Suppression Filter | ||||
| 39 | 2604465096 | 4.10 | 4.96 | |
| Compression Spring | ||||
| 40 | 1604611026 | 0.83 | 1.00 | |
| Speed governor 230V | ||||
| 41 | 2607230013 | 49.56 | 59.97 | |
| No longer available, no replacement | ||||
| 42 | 2605806376 | |||
| Union Nut SW 17, Ø 18,5 MM | ||||
| 43 | 2603312006 | 5.33 | 6.45 | |
| Seal Bushing | ||||
| 45 | 2600300073 | 5.33 | 6.45 | |
| Retaining clip DIN 472-32x1,2 MM | ||||
| 46 | 2916660013 | 1.70 | 2.06 | |
| Retaining clip DIN 471-15x1-FSt | ||||
| 47 | 2916650006 | 1.18 | 1.43 | |
| Cupped Washer | ||||
| 48 | 2600500033 | 1.94 | 2.35 | |
| Felt Washer | ||||
| 49 | 2600108033 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 | ||||
| 50 | 2603490023 | 0.83 | 1.00 | |
| groove ball bearing 15x32x9 | ||||
| 51 | 2600905017 | 7.58 | 9.17 | |
| Shim 0,1 MM THICK | ||||
| 52 | 1600102626 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| No longer available, no replacement | ||||
| 200 | 2607030004 | |||
| No longer available, no replacement | ||||
| 201 | 2608000014 | |||
| No longer available, no replacement | ||||
| 202 | 2604615011 | |||
| No longer available, no replacement | ||||
| 203 | 2601010052 | |||
| No longer available, no replacement | ||||
| 204 | 1603480003 | |||
| No longer available, no replacement | ||||
| 205 | 2608005014 | |||
| No longer available, no replacement | ||||
| 206 | 1603501018 | |||
| No longer available, no replacement | ||||
| 207 | 2603345015 | |||
| No longer available, no replacement | ||||
| 208 | 2604611008 | |||
| Detent Pin | ||||
| 209 | 2602305044 | 0.83 | 1.00 | |
| Hex Screw DIN 931-M8x60-8.8 | ||||
| 210 | 2911001258 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 211 | 1613349015 | |||
| No longer available, no replacement | ||||
| 212 | 2603200020 | |||
| Handle BLACK | ||||
| 213 | 2602026001 | 4.10 | 4.96 | |
| Manufacturer's nameplate | ||||
| 214 | 2601118933 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 215 | 2916011884 | |||
| Socket head cap screw DIN 84-AM6x16-5.8 | ||||
| 216 | 2910011191 | 0.83 | 1.00 | |
| Sticker | ||||
| 218 | 2601110137 | 0.83 | 1.00 | |
| Perforated Panel | ||||
| 219 | 2601031002 | 1.18 | 1.43 | |
| Straight Pin 4x60 MM | ||||
| 651 | 2603101035 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 654 | 2602053000 | |||
| No longer available, no replacement | ||||
| 655 | 2607000032 | |||
| Countersunk-Head Screw M 6x16 DIN 963-4.8 | ||||
| 656 | 2910761197 | 0.83 | 1.00 | |
| Socket head cap screw DIN 84-AM6x16-5.8 | ||||
| 657 | 2910011191 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 658 | 2603102007 | |||
| No longer available, no replacement | ||||
| 659 | 2607000067 | |||
| No longer available, no replacement | ||||
| 660 | 1603480003 | |||
| No longer available, no replacement | ||||
| 661 | 2607000033 | |||
| No longer available, no replacement | ||||
| 662 | 2607000031 | |||
| Hex Nut DIN 934-M6-8-A | ||||
| 663 | 2915011007 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 665 | 2601332007 | |||
| Hex Nut DIN 934-M6-8-A | ||||
| 666 | 2915011007 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 671 | 2607950511 | |||
| No longer available, no replacement | ||||
| 672 | 2608190008 | |||
| No longer available, no replacement | ||||
| 673 | 2605730034 | |||
| No information available, not orderable | ||||
| 744 | 2608570049 | |||
| No longer available, no replacement | ||||
| 801 | 2605108907 | |||
| Carbon-Brush Set | ||||
| 810 | 2604320910 | 7.58 | 9.17 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 835 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
| No information available, not orderable | ||||
| 899 | 2607220901 | |||
