Here you will find all available parts and drawings of the 'Bosch 3603B6A001 (POF1200AE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

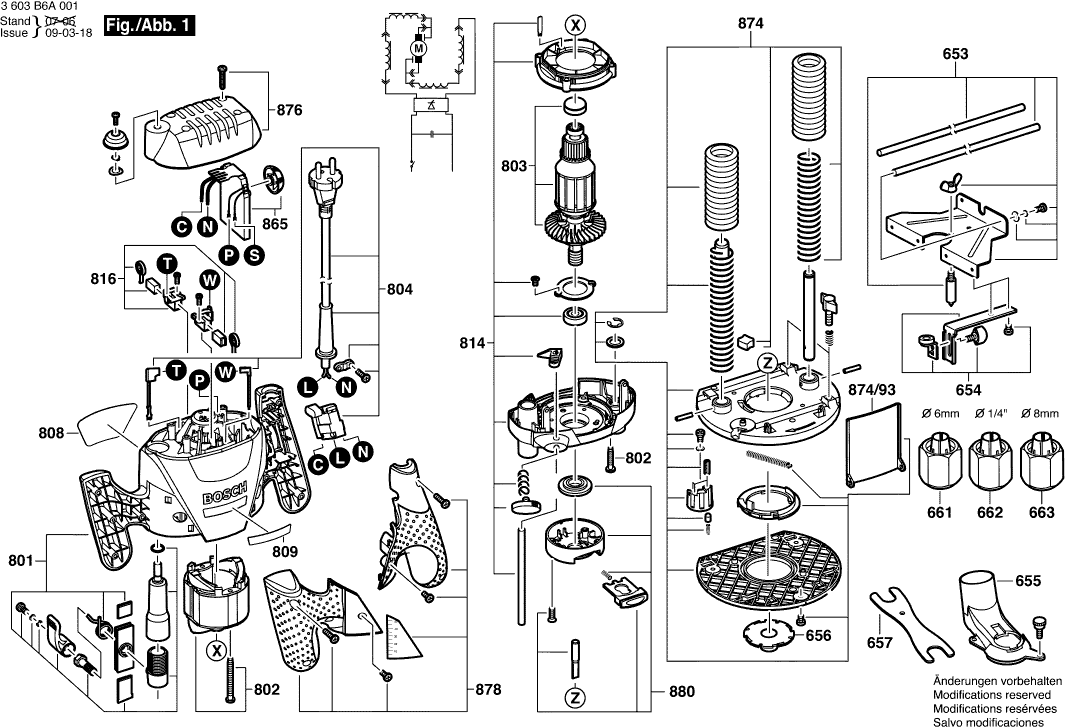

Technical drawing of model Bosch 3603B6A001 (POF1200AE)
Spare parts list of model Bosch 3603B6A001 (POF1200AE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Parallel-Guide | ||||
| 653 | 1609203V37 | 12.82 | 15.51 | |
| Stud-type track roller | ||||
| 654 | 1609203V38 | 8.35 | 10.10 | |
| Suction Piece | ||||
| 655 | 1609203V32 | 13.13 | 15.89 | |
| Sleeve | ||||
| 656 | 1609203V39 | 10.90 | 13.19 | |
| Assembly Wrench | ||||
| 657 | 1600A0228G | 2.86 | 3.46 | |
| Union Nut | ||||
| 661 | 1609203V41 | 12.82 | 15.51 | |
| Union Nut | ||||
| 662 | 1609203V42 | 11.37 | 13.76 | |
| Union Nut | ||||
| 663 | 1609203V43 | 11.37 | 13.76 | |
| Motor Housing | ||||
| 801 | 1609203V46 | 23.90 | 28.92 | |
| Field | ||||
| 802 | 1609203V47 | 27.81 | 33.65 | |
| Armature | ||||
| 803 | 1609203V48 | 47.53 | 57.51 | |
| On-Off Switch | ||||
| 804 | 1619PB3101 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 1601118N10 | 2.86 | 3.46 | |
| Manufacturer's nameplate | ||||
| 809 | 1601118N19 | 2.40 | 2.90 | |
| Guide Component | ||||
| 814 | 1609203V50 | 39.14 | 47.36 | |
| Brush Holder | ||||
| 816 | 1609203V51 | 11.37 | 13.76 | |
| Speed governor | ||||
| 865 | 1609203V52 | 39.14 | 47.36 | |
| Base Plate | ||||
| 874 | 1609203V53 | 43.12 | 52.18 | |
| Chip Deflector | ||||
| 874/93 | 1609203P06 | 6.73 | 8.14 | |
| Housing Cover | ||||
| 876 | 1609203V54 | 7.46 | 9.03 | |
| Handle Cover | ||||
| 878 | 1609203V55 | 16.79 | 20.32 | |
| Pusher Housing | ||||
| 880 | 1609203V56 | 27.81 | 33.65 | |
