Here you will find all available parts and drawings of the 'Bosch 0603997965 (PMS400PE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

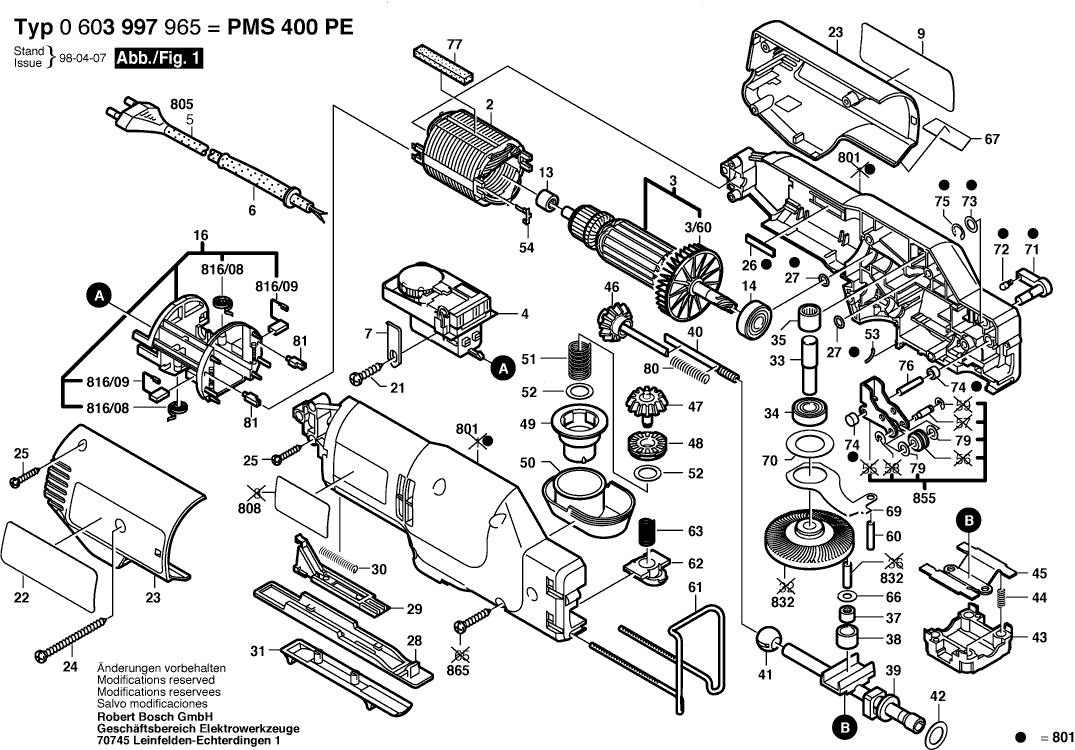

Technical drawing of model Bosch 0603997965 (PMS400PE)
Spare parts list of model Bosch 0603997965 (PMS400PE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220541 | 30.08 | 36.40 | |
| Armature | ||||
| 3 | 2604010872 | 72.96 | 88.28 | |
| Fan | ||||
| 3/60 | 2606610084 | 1.24 | 1.50 | |
| Switch | ||||
| 4 | 2607200289 | 55.56 | 67.23 | |
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Sticker | ||||
| 9 | 2601118225 | 2.00 | 2.42 | |
| Needle bearing | ||||
| 13 | 2600917009 | 3.48 | 4.21 | |
| groove ball bearing | ||||
| 14 | 2600905021 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 16 | 2604337055 | |||
| Tapping Screw | ||||
| 21 | 2910611019 | 2.86 | 3.46 | |
| Sticker | ||||
| 22 | 2601118220 | 2.00 | 2.42 | |
| Housing Section | ||||
| 23 | 2605104376 | 6.22 | 7.53 | |
| Torx Oval-Head Screw | ||||
| 24 | 2603490027 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 25 | 2603490018 | 1.00 | 1.21 | |
| Rubber Strip | ||||
| 26 | 2601006003 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 27 | 2600210036 | |||
| No longer available, no replacement | ||||
| 28 | 2608001012 | |||
| Switch Slide | ||||
| 29 | 2608001006 | 1.90 | 2.30 | |
| Compression Spring | ||||
| 30 | 2604611033 | 2.08 | 2.52 | |
| Switch Handle | ||||
| 31 | 2608001010 | 2.52 | 3.05 | |
| Bearing bolt | ||||
| 33 | 2603105044 | 4.84 | 5.86 | |
| groove ball bearing | ||||
| 34 | 2600905057 | 5.61 | 6.79 | |
| Needle bearing | ||||
| 35 | 2600917006 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 37 | 2600910005 | |||
| Bearing Sleeve | ||||
| 38 | 2600400028 | 3.48 | 4.21 | |
| No longer available, no replacement | ||||
| 39 | 2600780058 | |||
| No longer available, no replacement | ||||
| 40 | 2603490005 | |||
| Sintered-Metal Bushing | ||||
| 41 | 2600302009 | 2.40 | 2.90 | |
| Shim | ||||
| 42 | 2600101612 | 1.49 | 1.80 | |
| Support Plate | ||||
| 43 | 2602316007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 44 | 2604613000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 45 | 2601322014 | |||
| No longer available, no replacement | ||||
| 46 | 2606333024 | |||
| Bevel Gear | ||||
| 47 | 2606333025 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 48 | 2606491007 | |||
| Coupling | ||||
| 49 | 2606491008 | 1.73 | 2.09 | |
| Rotary Handle | ||||
| 50 | 2608040061 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 51 | 2604617005 | |||
| No longer available, no replacement | ||||
| 52 | 2600101016 | |||
| Round Rubber | ||||
| 53 | 2603100066 | 1.24 | 1.50 | |
| Contact Spring | ||||
| 54 | 2601329037 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 60 | 2917550099 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 61 | 2601329045 | |||
| No longer available, no replacement | ||||
| 62 | 2600591007 | |||
| No longer available, no replacement | ||||
| 63 | 2604610033 | |||
| Shim | ||||
| 66 | 2600100613 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 67 | 3601110216 | 3.04 | 3.68 | |
| Fork Lever | ||||
| 69 | 2601923008 | 2.00 | 2.42 | |
| Shim | ||||
| 70 | 2600101017 | 1.24 | 1.50 | |
| Change-Over Switch | ||||
| 71 | 2602026051 | 2.52 | 3.05 | |
| Ratchet Cap | ||||
| 72 | 2600590006 | 1.49 | 1.80 | |
| Shim | ||||
| 73 | 2600100568 | 1.49 | 1.80 | |
| Shim | ||||
| 73 | 2600100607 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 74 | 2600506008 | |||
| Locking washer | ||||
| 75 | 2916080908 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 76 | 2603100057 | 1.24 | 1.50 | |
| Foam Panel | ||||
| 77 | 2601010056 | 0.83 | 1.00 | |
| Shim | ||||
| 79 | 2600100032 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 80 | 2604610039 | |||
| Holding-Down-Appliance | ||||
| 81 | 2602099009 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 700 | 2608609028 | |||
| No longer available, no replacement | ||||
| 701 | 2608609030 | |||
| No longer available, no replacement | ||||
| 704 | 2608622040 | |||
| No longer available, no replacement | ||||
| 705 | 2608622041 | |||
| No longer available, no replacement | ||||
| 706 | 2608622042 | |||
| No longer available, no replacement | ||||
| 709 | 2607001182 | |||
| Lock Screw | ||||
| 709/30 | 2603490001 | 2.18 | 2.64 | |
| Support clamp | ||||
| 709/40 | 2601314004 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 750 | 2605438312 | |||
| Base Plate | ||||
| 755 | 2608045009 | 0.83 | 1.00 | |
| Base Plate | ||||
| 756 | 2608045010 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 757 | 2608609302 | |||
| No longer available, no replacement | ||||
| 758 | 2608604458 | |||
| Housing Section | ||||
| 801 | 2605104857 | 25.28 | 30.59 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Spiral Spring | ||||
| 816/08 | 1604652013 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 816/09 | 2607014007 | |||
| Eccentric Cog Wheel | ||||
| 832 | 2606333901 | 17.22 | 20.84 | |
| No longer available, no replacement | ||||
| 855 | 2601321903 | |||
| Tapping Screw | ||||
| 865 | 2912401020 | 1.90 | 2.30 | |
