Here you will find all available parts and drawings of the 'Bosch 0603294703 ( PMS400PE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

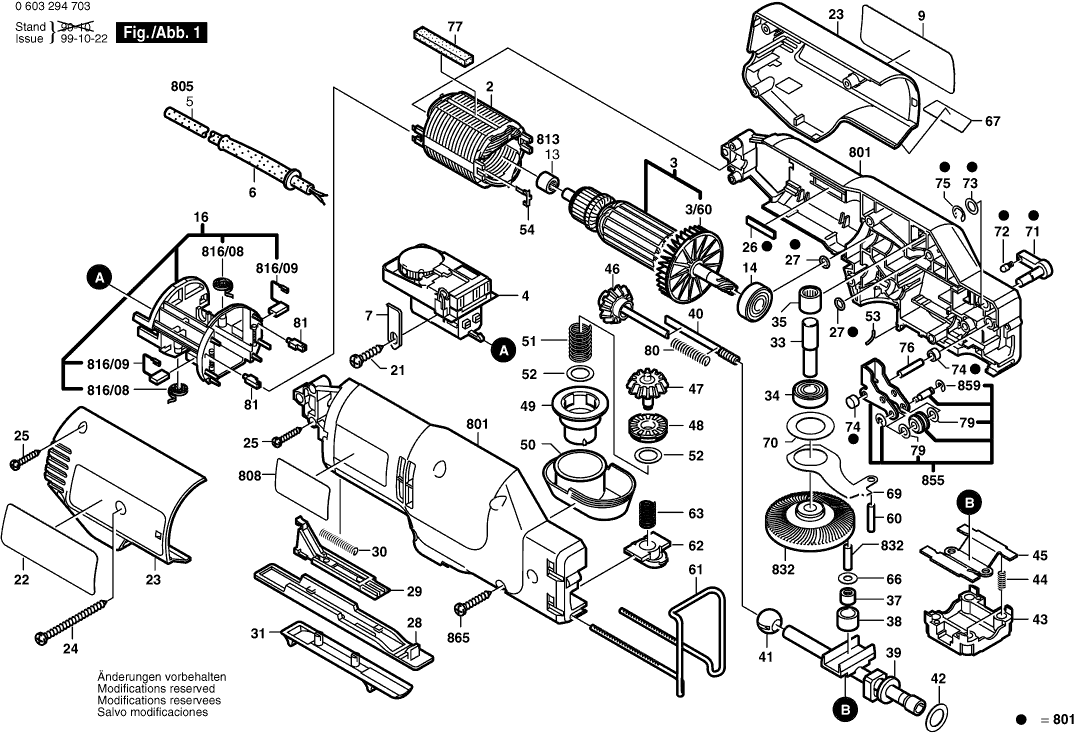

Technical drawing of model Bosch 0603294703 ( PMS400PE )

Spare parts list of model Bosch 0603294703 ( PMS400PE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230V
2 2604220541 26.84 32.48
Armature 230V
3 2604010872 67.25 81.37
Fan
3/60 2606610084 1.18 1.43
Switch
4 2607200289 49.56 59.97
No longer available, no replacement
6 2600703007
Fastening Clamp
7 1601302017 0.83 1.00
Sticker SUNNY SIDE
9 2601118225 1.94 2.35
Needle bearing
13 2600917009 3.31 4.01
groove ball bearing 9x24x7
14 2600905021 6.54 7.91
Brush Holder
16 2604337055 26.84 32.48
Torx Oval-Head Screw 4x12
21 2603490021 0.83 1.00
Sticker SHADOW SIDE
22 2601118220 1.94 2.35
Housing Section GREEN
23 2605104376 5.83 7.05
Torx Oval-Head Screw 4x40
24 2603490027 0.83 1.00
Torx Oval-Head Screw 3x18
25 2603490018 0.83 1.00
Rubber Strip
26 2601006003 1.18 1.43
O-Ring 5,0x1,5 MM
27 1900210000 1.18 1.43
No longer available, no replacement
28 2608001012
Switch Slide BLACK
29 2608001006 1.70 2.06
Compression Spring
30 2604611033 1.70 2.06
Switch Handle BLACK
31 2608001010 2.24 2.71
Bearing bolt
33 2603105044 4.70 5.69
Groove ball bearing DIN 625 608-2 Z
34 2600905057 5.33 6.45
Needle bearing
35 2600917006 2.71 3.28
No longer available, no replacement
37 2600910005
Bearing Sleeve
38 2600400028 3.31 4.01
No longer available, no replacement
39 2600780058
No longer available, no replacement
40 2603490005
Sintered-Metal Bushing
41 2600302009 1.94 2.35
Shim 0,5 MM
42 2600101612 1.18 1.43
Support Plate
43 2602316007 0.83 1.00
Compression Spring
44 2604613000 1.18 1.43
No longer available, no replacement
45 2601322014
No longer available, no replacement
46 2606333024
Bevel Gear Z=16
47 2606333025 1.70 2.06
Clutch Sleeve
48 2606491007 1.18 1.43
Coupling
49 2606491008 1.70 2.06
Rotary Handle
50 2608040061 2.24 2.71
No longer available, no replacement
51 2604617005
No longer available, no replacement
52 2600101016
Round Rubber Ø 2 MM
53 2603100066 1.18 1.43
Contact Spring
54 2601329037 1.18 1.43
Straight Pin DIN 6325-4m6x20
60 2917550099 1.18 1.43
No longer available, no replacement
61 2601329045
No longer available, no replacement
62 2600591007
No longer available, no replacement
63 2604610033
Shim 0,50 MM
66 2600100613 1.18 1.43
Reference Plate
67 3601110216 2.71 3.28
Fork Lever
69 2601923008 1.94 2.35
Shim
70 2600101017 1.18 1.43
Change-Over Switch 230V
71 2602026051 2.24 2.71
Ratchet Cap
72 2600590006 1.18 1.43
Shim 0,5 MM
73 2600100568 1.18 1.43
Shim 0,3 MM
73 2600100607 1.18 1.43
No longer available, no replacement
74 2600506008
No longer available, no replacement
75 2916080008
Straight Pin
76 2603100057 1.18 1.43
Foam Panel
77 2601010056 0.83 1.00
Shim 0,2 MM
79 2600100032 1.18 1.43
No longer available, no replacement
80 2604610039
Holding-Down-Appliance
81 2602099009 1.18 1.43
No longer available, no replacement
700 2608609028
No longer available, no replacement
701 2608609030
Brush
704 2608622040 0.83 1.00
Brush
705 2608622041 0.83 1.00
Brush
706 2608622042 0.83 1.00
No longer available, no replacement
709 2607001182
Lock Screw M5x12-8,8
709/30 2603490001 1.94 2.35
Support clamp
709/40 2601314004 1.18 1.43
No longer available, no replacement
750 2605438312
Base Plate
755 2608045009 0.83 1.00
Base Plate
756 2608045010 0.83 1.00
No longer available, no replacement
757 2608609302
No longer available, no replacement
758 2608604458
Housing Section GREEN
801 2605104857 23.75 28.74
Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
805 1607000388 9.53 11.53
Nameplate
808 160111A3H3 1.94 2.35
Needle bearing
813 2600917002 2.71 3.28
Spiral Spring
816/08 1604652013 1.18 1.43
No longer available, no replacement
816/09 2607014007
Eccentric Gear Wheel Z=42
832 2606333901 15.71 19.01
No longer available, no replacement
855 2601321903
Roller Set
859 1619P01375 8.45 10.22
Tapping Screw DIN 7981-3,9x19-C-Z-ST
865 2912401020 0.83 1.00
