Here you will find all available parts and drawings of the 'Bosch 0603293003 (PMS400)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

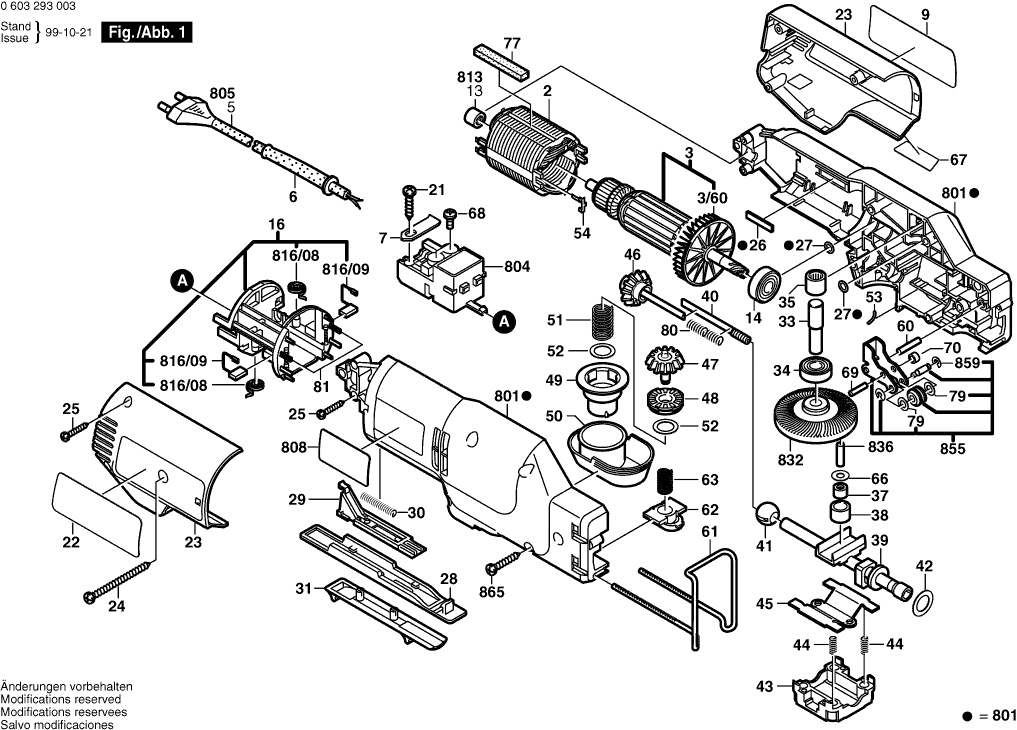

Technical drawing of model Bosch 0603293003 (PMS400)
Spare parts list of model Bosch 0603293003 (PMS400)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220541 | 30.08 | 36.40 | |
| Armature | ||||
| 3 | 2604010872 | 72.96 | 88.28 | |
| Fan | ||||
| 3/60 | 2606610084 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Sticker | ||||
| 9 | 2601118221 | 2.00 | 2.42 | |
| groove ball bearing | ||||
| 14 | 2600905021 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 2604337054 | 39.20 | 47.43 | |
| Torx Oval-Head Screw | ||||
| 21 | 2603490021 | 1.00 | 1.21 | |
| Sticker | ||||
| 22 | 2601118220 | 2.00 | 2.42 | |
| Housing Section | ||||
| 23 | 2605104375 | 6.22 | 7.53 | |
| Torx Oval-Head Screw | ||||
| 24 | 2603490027 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 25 | 2603490018 | 1.00 | 1.21 | |
| Rubber Strip | ||||
| 26 | 2601006003 | 1.24 | 1.50 | |
| O-Ring | ||||
| 27 | 1900210000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 28 | 2608001012 | |||
| Switch Slide | ||||
| 29 | 2608001006 | 1.90 | 2.30 | |
| Compression Spring | ||||
| 30 | 2604611033 | 2.08 | 2.52 | |
| Switch Handle | ||||
| 31 | 2608001010 | 2.52 | 3.05 | |
| Bearing bolt | ||||
| 33 | 2603105044 | 4.84 | 5.86 | |
| groove ball bearing | ||||
| 34 | 2600905057 | 5.61 | 6.79 | |
| Needle bearing | ||||
| 35 | 2600917006 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 37 | 2600910005 | |||
| Bearing Sleeve | ||||
| 38 | 2600400028 | 3.48 | 4.21 | |
| No longer available, no replacement | ||||
| 39 | 2600780058 | |||
| No longer available, no replacement | ||||
| 40 | 2603490005 | |||
| Sintered-Metal Bushing | ||||
| 41 | 2600302009 | 2.40 | 2.90 | |
| Shim | ||||
| 42 | 2600101612 | 1.49 | 1.80 | |
| Support Plate | ||||
| 43 | 2602316007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 44 | 2604613000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 45 | 2601322014 | |||
| No longer available, no replacement | ||||
| 46 | 2606333024 | |||
| Bevel Gear | ||||
| 47 | 2606333025 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 48 | 2606491007 | |||
| Coupling | ||||
| 49 | 2606491008 | 1.73 | 2.09 | |
| Rotary Handle | ||||
| 50 | 2608040061 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 51 | 2604617005 | |||
| No longer available, no replacement | ||||
| 52 | 2600101016 | |||
| Round Rubber | ||||
| 53 | 2603100066 | 1.24 | 1.50 | |
| Contact Spring | ||||
| 54 | 2601329037 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 60 | 2917530104 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 61 | 2601329045 | |||
| No longer available, no replacement | ||||
| 62 | 2600591007 | |||
| No longer available, no replacement | ||||
| 63 | 2604610033 | |||
| Shim | ||||
| 66 | 2600100613 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 67 | 3601110216 | 3.04 | 3.68 | |
| No longer available, no replacement | ||||
| 68 | 1603429002 | |||
| Straight Pin | ||||
| 69 | 2603100057 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 70 | 2600506008 | |||
| Foam Panel | ||||
| 77 | 2601010056 | 0.83 | 1.00 | |
| Shim | ||||
| 79 | 2600100032 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 80 | 2604610039 | |||
| Holding-Down-Appliance | ||||
| 81 | 2602099009 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 700 | 2608609028 | |||
| No longer available, no replacement | ||||
| 701 | 2608609030 | |||
| No longer available, no replacement | ||||
| 704 | 2608622040 | |||
| No longer available, no replacement | ||||
| 705 | 2608622041 | |||
| No longer available, no replacement | ||||
| 706 | 2608622042 | |||
| No longer available, no replacement | ||||
| 709 | 2607001182 | |||
| Lock Screw | ||||
| 709/30 | 2603490001 | 2.18 | 2.64 | |
| Support clamp | ||||
| 709/40 | 2601314004 | 1.32 | 1.60 | |
| Base Plate | ||||
| 755 | 2608045009 | 0.83 | 1.00 | |
| Base Plate | ||||
| 756 | 2608045010 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 757 | 2608609302 | |||
| No longer available, no replacement | ||||
| 758 | 2608604458 | |||
| Housing Section | ||||
| 801 | 2605104856 | 15.26 | 18.46 | |
| No longer available, no replacement | ||||
| 804 | 1607200113 | |||
| Power supply cord | ||||
| 805 | 1607000388 | 11.37 | 13.76 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Needle bearing | ||||
| 813 | 2600917002 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 816/08 | 1604652013 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 816/09 | 2607014007 | |||
| Eccentric Cog Wheel | ||||
| 832 | 2606333901 | 17.22 | 20.84 | |
| Bearing bolt | ||||
| 836 | 2603105045 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 855 | 2601321903 | |||
| Roller Set | ||||
| 859 | 1619P01375 | 10.90 | 13.19 | |
| Tapping Screw | ||||
| 865 | 2910611020 | 1.49 | 1.80 | |
