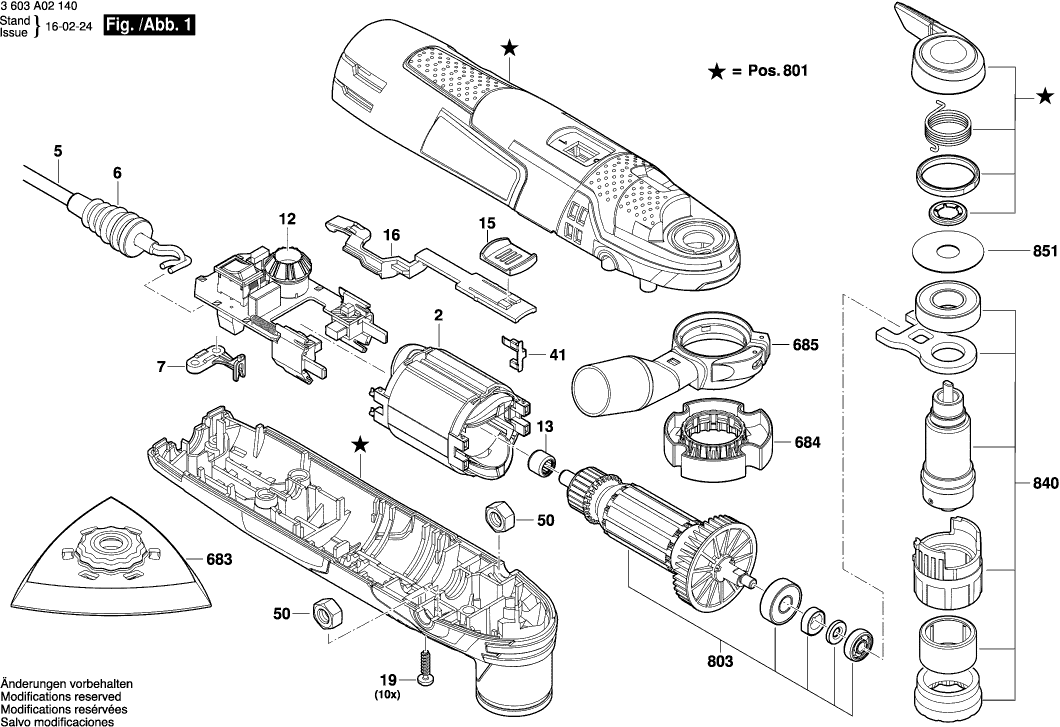

Technical drawing of model Bosch 3603A02140 ( PMF250CES )
Spare parts list of model Bosch 3603A02140 ( PMF250CES )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2609007814 | 23.75 | 28.74 | |
| Power supply cord AUS 240V 2,6m 2 x 0,75mm H05 VV | ||||
| 5 | 2604460297 | 8.45 | 10.22 | |
| Grommet Durchmesser 6,2-6,9 | ||||
| 6 | 2609005502 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2609006171 | 1.18 | 1.43 | |
| Electronic Module | ||||
| 12 | 2609007131 | 44.82 | 54.23 | |
| Needle bearing | ||||
| 13 | 2600917002 | 2.71 | 3.28 | |
| Slide Button | ||||
| 15 | 2609005541 | 2.24 | 2.71 | |
| Slider | ||||
| 16 | 2609007716 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Contact Spring | ||||
| 41 | 2601329037 | 1.18 | 1.43 | |
| Hex Nut DIN 934-M8-8-A | ||||
| 50 | 2915011009 | 1.94 | 2.35 | |
| Sander Plate | ||||
| 683 | 1600A008LT | 9.53 | 11.53 | |
| Depth gauge | ||||
| 684 | 1600A0087V | 1.18 | 1.43 | |
| Dust Extraction | ||||
| 685 | 1600A0087K | 10.73 | 12.98 | |
| Housing Assembly | ||||
| 801 | 1607000C5M | 20.42 | 24.71 | |
| No longer available, no replacement | ||||
| 803 | 1604010B5G | |||
| Toolholder | ||||
| 840 | 161859710L | 49.56 | 59.97 | |
| Felt Disc | ||||
| 851 | 1607000C6D | 0.83 | 1.00 | |
