Here you will find all available parts and drawings of the 'Bosch 3603A00600 ( PMF250CES )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

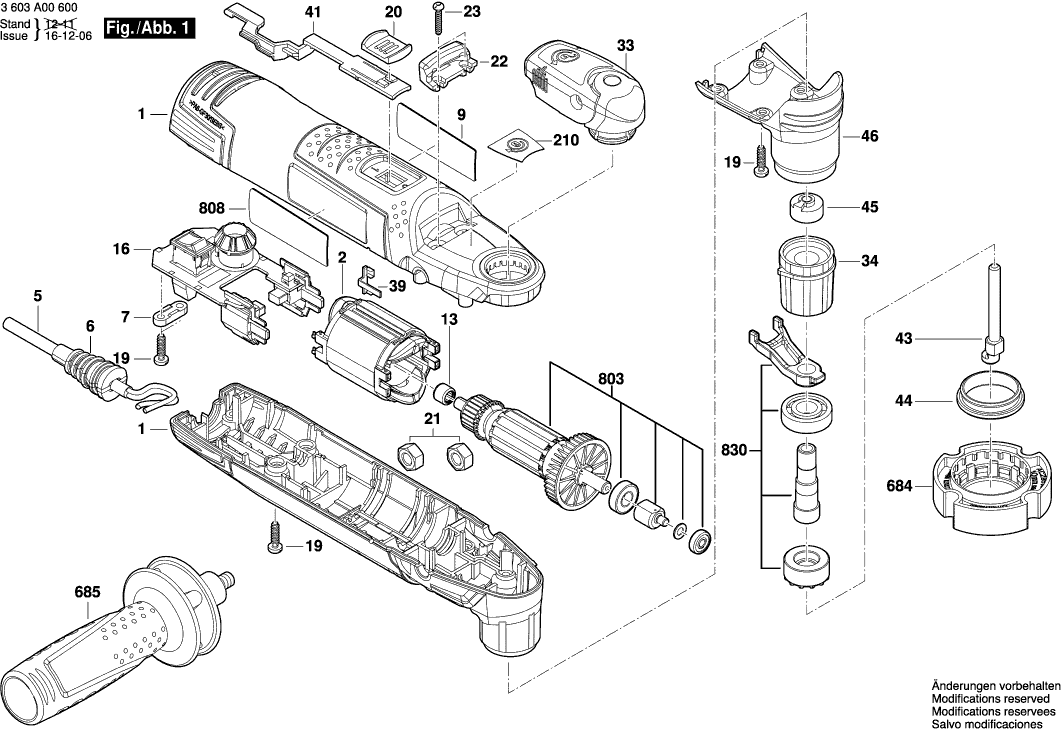

Technical drawing of model Bosch 3603A00600 ( PMF250CES )
Spare parts list of model Bosch 3603A00600 ( PMF250CES )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609005891 | 15.71 | 19.01 | |
| Field 220-240V | ||||
| 2 | 2609005871 | 29.75 | 36.00 | |
| Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV- | ||||
| 5 | 2604460259 | 10.73 | 12.98 | |
| Grommet Durchmesser 6,2-6,9 | ||||
| 6 | 2609005502 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2609006171 | 1.18 | 1.43 | |
| Manufacturer's nameplate X25C MF | ||||
| 9 | 161111C04F | 1.94 | 2.35 | |
| Manufacturer's nameplate PMF 250 CES | ||||
| 9 | 2609006238 | 1.18 | 1.43 | |
| Needle bearing | ||||
| 13 | 2600917002 | 2.71 | 3.28 | |
| Electronics Module | ||||
| 16 | 2609005719 | 44.82 | 54.23 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Slide Button | ||||
| 20 | 2609005541 | 2.24 | 2.71 | |
| Hex Nut DIN 934-M8-8-A | ||||
| 21 | 2915011009 | 1.94 | 2.35 | |
| Notched Plate | ||||
| 22 | 2609005893 | 1.70 | 2.06 | |
| Torx Oval-Head Screw 3x10 | ||||
| 23 | 2603490017 | 1.70 | 2.06 | |
| Lever Carrier | ||||
| 33 | 2609006493 | 20.42 | 24.71 | |
| Bearing Holder | ||||
| 34 | 2609006492 | 4.70 | 5.69 | |
| Contact Spring | ||||
| 39 | 2601329037 | 1.18 | 1.43 | |
| Slider | ||||
| 41 | 2609007716 | 1.18 | 1.43 | |
| Straining Screw | ||||
| 43 | 2609006241 | 12.41 | 15.02 | |
| Seal | ||||
| 44 | 2609005901 | 1.18 | 1.43 | |
| Clamping Nut | ||||
| 45 | 2609006077 | 9.53 | 11.53 | |
| Housing | ||||
| 46 | 2609005899 | 11.88 | 14.37 | |
| Sticker | ||||
| 210 | 2609006519 | 1.94 | 2.35 | |
| Depth-Gauge | ||||
| 684 | 2609005815 | 2.71 | 3.28 | |
| Auxiliary Handle | ||||
| 685 | 2609006243 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 803 | 2609006178 | |||
| Nameplate | ||||
| 808 | 160111A2XX | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 830 | 2609006177 | |||
