Here you will find all available parts and drawings of the 'Bosch 3603A02070 ( PMF220CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

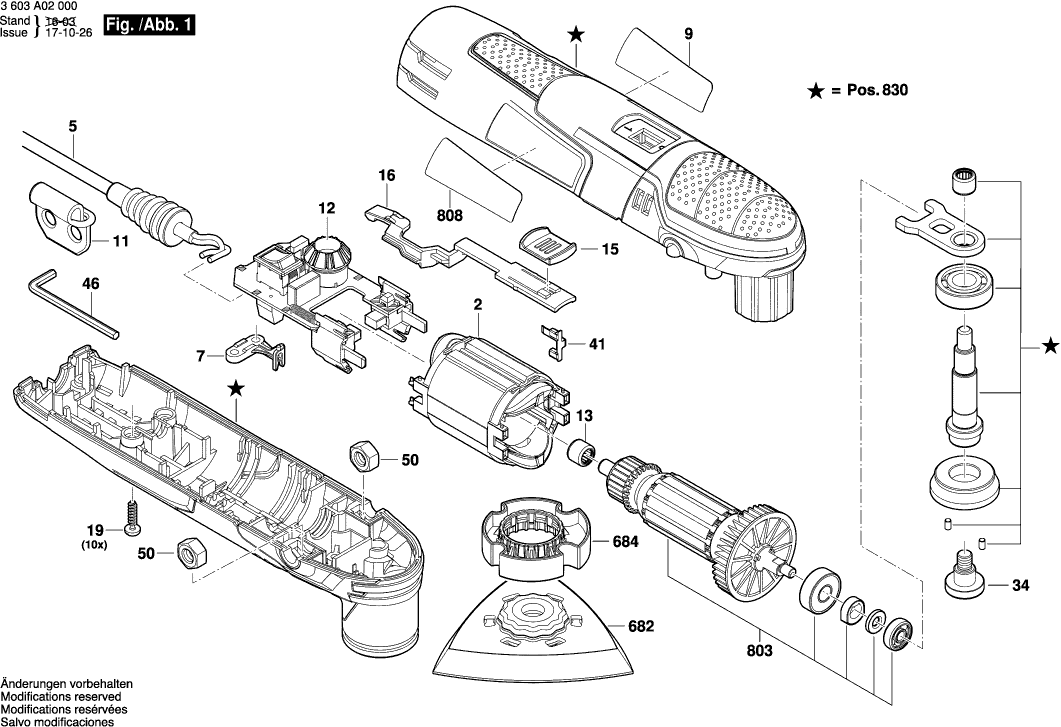

Technical drawing of model Bosch 3603A02070 ( PMF220CE )
Spare parts list of model Bosch 3603A02070 ( PMF220CE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2609007814 | 23.75 | 28.74 | |
| Power supply cord GB 230V 2,65m 2 x 1,0mm H05 VV- | ||||
| 5 | 2604460243 | 10.73 | 12.98 | |
| Cable Clip | ||||
| 7 | 2609006171 | 1.18 | 1.43 | |
| Manufacturer's nameplate PMF 220 CE | ||||
| 9 | 160111C0KM | 1.94 | 2.35 | |
| Manufacturer's nameplate PMF 2000 CE | ||||
| 9 | 160111C1J7 | 1.94 | 2.35 | |
| Key Holder | ||||
| 11 | 2609006359 | 2.24 | 2.71 | |
| Electronics Module | ||||
| 12 | 2609005719 | 44.82 | 54.23 | |
| Needle bearing | ||||
| 13 | 2600917002 | 2.71 | 3.28 | |
| Slide Button | ||||
| 15 | 2609005541 | 2.24 | 2.71 | |
| Slider | ||||
| 16 | 2609007716 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Hex Screw | ||||
| 34 | 160343507R | 1.70 | 2.06 | |
| Contact Spring | ||||
| 41 | 2601329037 | 1.18 | 1.43 | |
| Hexagon Socket Screw Key 5 MM | ||||
| 46 | 2610364015 | 2.71 | 3.28 | |
| Hex Nut DIN 934-M8-8-A | ||||
| 50 | 2915011009 | 1.94 | 2.35 | |
| Sander Plate | ||||
| 682 | 1600A008LS | 11.88 | 14.37 | |
| Depth gauge | ||||
| 684 | 1600A0087V | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 803 | 1604010B5G | |||
| Nameplate | ||||
| 808 | 160111A47K | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 830 | 1600A00K1V | |||
