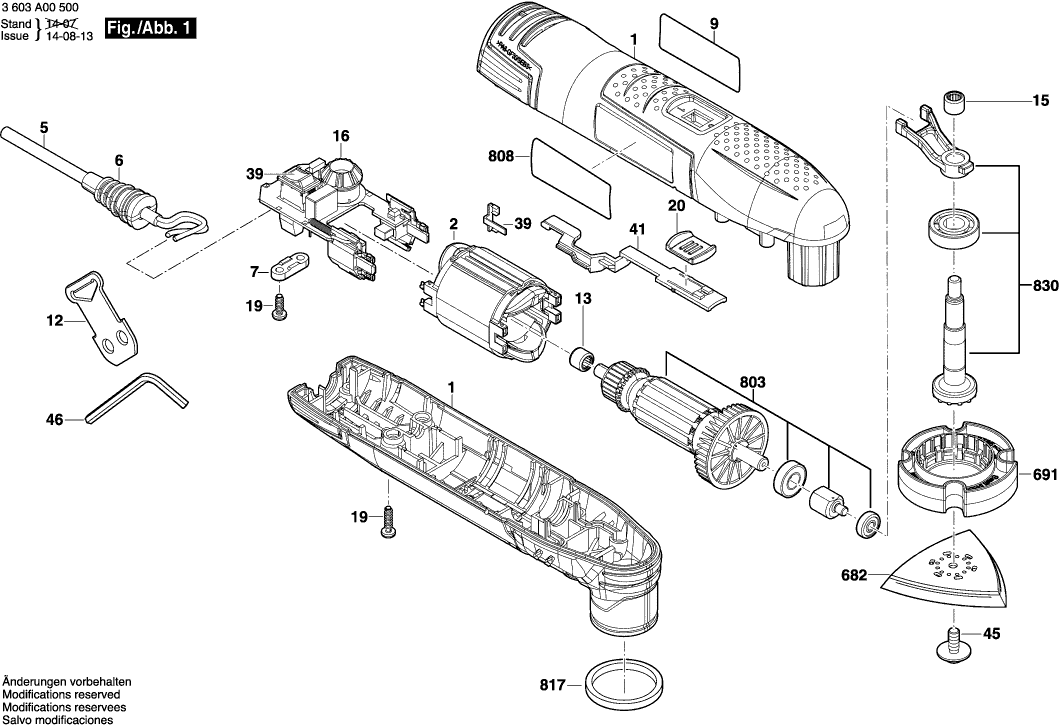

Technical drawing of model Bosch 3603A00500 ( PMF190E )

Spare parts list of model Bosch 3603A00500 ( PMF190E )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing
1 2609005378 15.71 19.01
Field 220-240V
2 2609006601 13.93 16.86
Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-
5 2604460259 10.73 12.98
Grommet Durchmesser 6,2-6,9
6 2609005502 1.94 2.35
Cable Clip
7 2609006171 1.18 1.43
Manufacturer's nameplate PMF 190 E
9 2609005887 1.94 2.35
Manufacturer's nameplate PMF 1800 E
9 160111C05W 1.94 2.35
Manufacturer's nameplate X19 MF
9 161111C04E 1.94 2.35
Key Holder
12 2609006359 2.24 2.71
Needle bearing
13 2600917002 2.71 3.28
Sintered-Metal Bushing
15 2609007459 1.18 1.43
Electronics Module
16 2609005781 29.75 36.00
Screw 4x16
19 2603490022 0.83 1.00
Slide Button
20 2609005541 2.24 2.71
Contact Spring
39 2601329037 1.18 1.43
Slider
41 2609007716 1.18 1.43
Hex Socket Head Cap Screw
45 2609000295 0.83 1.00
Hexagon Socket Screw Key 5 MM
46 2610364015 2.71 3.28
Swing-Plate
682 2609002737 13.93 16.86
Depth-Gauge
691 2609005815 2.71 3.28
No longer available, no replacement
803 2609006176
Nameplate
808 160111A2XR 1.94 2.35
Felt Washer
817 2609006364 1.70 2.06
Drive Shaft
830 2609005810 29.75 36.00
