Here you will find all available parts and drawings of the 'Bosch 0603234603 (PKS66)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

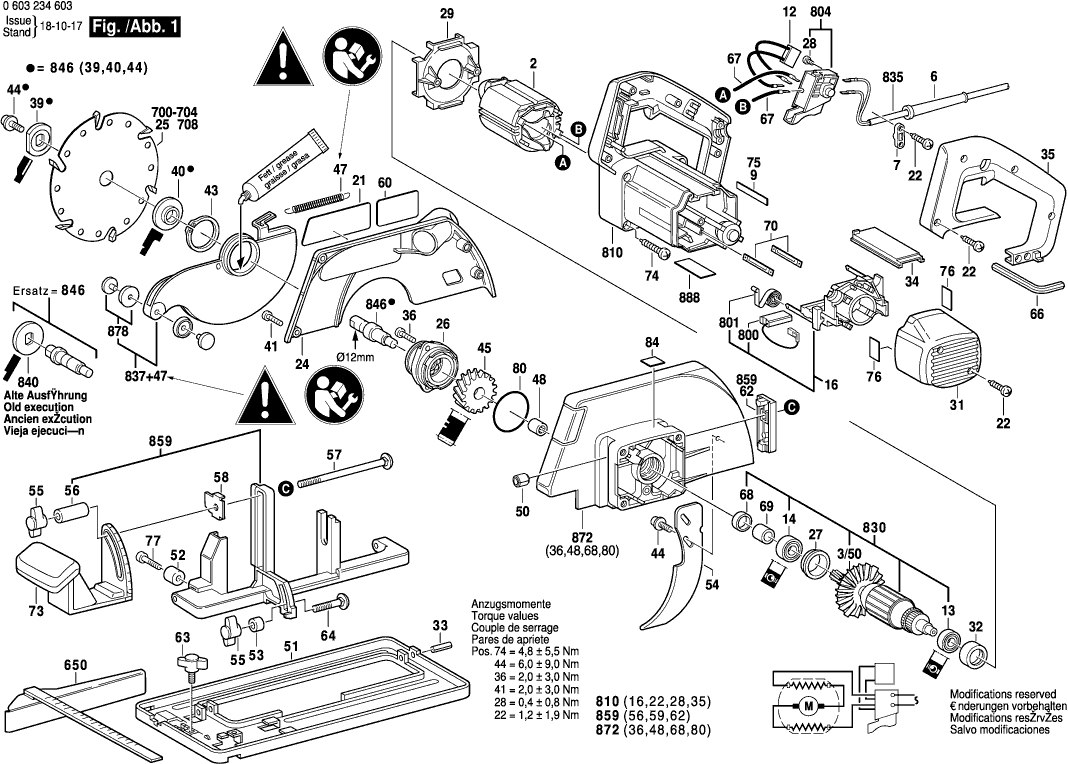

Technical drawing of model Bosch 0603234603 (PKS66)
Spare parts list of model Bosch 0603234603 (PKS66)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1604220354 | 34.82 | 42.13 | |
| Fan | ||||
| 3/50 | 1606610122 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 6 | 1600703024 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 1601110483 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 14 | 1610905009 | |||
| No longer available, no replacement | ||||
| 16 | 1604336042 | |||
| Manufacturer's nameplate | ||||
| 21 | 1601110490 | 2.86 | 3.46 | |
| Tapping Screw | ||||
| 22 | 2912401019 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 24 | 1605510157 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 25 | 1608640086 | |||
| Bearing Flange | ||||
| 26 | 1605808065 | 10.90 | 13.19 | |
| Intermediate Ring | ||||
| 27 | 1600221003 | 2.40 | 2.90 | |
| Socket head cap screw | ||||
| 28 | 2603410001 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 29 | 1600591007 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 31 | 1605500135 | |||
| Intermediate Ring | ||||
| 32 | 1600502011 | 2.40 | 2.90 | |
| Slotted Spring Pin | ||||
| 33 | 2917780150 | 1.00 | 1.21 | |
| Cover Strip | ||||
| 34 | 1601099013 | 2.08 | 2.52 | |
| Handle Cover | ||||
| 35 | 1605500153 | 8.35 | 10.10 | |
| Thread-forming tap. Screw | ||||
| 36 | 2603435042 | 1.49 | 1.80 | |
| Conical Spring Washer | ||||
| 39 | 1605703107 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 40 | 1605703091 | |||
| Torx Oval-Head Screw | ||||
| 41 | 2610386516 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 43 | 2916650020 | |||
| Hex Socket Head Cap Screw | ||||
| 44 | 1603414007 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 45 | 1606320081 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 47 | 1604649001 | |||
| No longer available, no replacement | ||||
| 48 | 1600910019 | |||
| Guide Bushing | ||||
| 50 | 1600309011 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 1608000105 | |||
| Rubber Buffer | ||||
| 52 | 1600305001 | 1.00 | 1.21 | |
| Spacer Bushing | ||||
| 53 | 1600309012 | 1.00 | 1.21 | |
| Riving Knife | ||||
| 54 | 1600025013 | 2.40 | 2.90 | |
| Wing Nut | ||||
| 55 | 1603339005 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 56 | 1600309013 | |||
| No longer available, no replacement | ||||
| 57 | 1603434005 | |||
| No longer available, no replacement | ||||
| 58 | 1601329015 | |||
| Thrust Member | ||||
| 62 | 1608040112 | 4.94 | 5.98 | |
| Wing Screw | ||||
| 63 | 1603480017 | 2.86 | 3.46 | |
| Round-Head Bolt | ||||
| 64 | 1603434006 | 1.49 | 1.80 | |
| Offset Screwdriver | ||||
| 66 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 66 | 2610364015 | 3.44 | 4.16 | |
| Suppressor Box | ||||
| 67 | 1604503014 | 9.67 | 11.70 | |
| Rotary shaft lip seal | ||||
| 68 | 1600290016 | 2.40 | 2.90 | |
| Intermediate Ring | ||||
| 69 | 1600300092 | 1.49 | 1.80 | |
| Blade terminal | ||||
| 70 | 1604477005 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 73 | 1608190009 | |||
| Thread-forming tap. Screw | ||||
| 74 | 1603435022 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 77 | 2910271120 | 1.49 | 1.80 | |
| O-Ring | ||||
| 80 | 1600210035 | 1.49 | 1.80 | |
| Parallel-Guide | ||||
| 650 | 2608005036 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 800 | 1607014129 | |||
| No longer available, no replacement | ||||
| 801 | 2604652008 | |||
| On-Off Switch | ||||
| 804 | 1607000231 | 16.79 | 20.32 | |
| Handle Cover | ||||
| 810 | 1607000925 | 71.14 | 86.08 | |
| No longer available, no replacement | ||||
| 830 | 1604010324 | |||
| Power supply cord | ||||
| 835 | 1607000228 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 837 | 1605510172 | |||
| Clamping-Flange | ||||
| 840 | 1605703093 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 846 | 1607000225 | |||
| No longer available, no replacement | ||||
| 859 | 1607000197 | |||
| Parts Set | ||||
| 872 | 1607000222 | 52.45 | 63.46 | |
| No longer available, no replacement | ||||
| 878 | 1607000205 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
| Grease Tube | ||||
| 899 | 1605430003 | 34.82 | 42.13 | |
