Here you will find all available parts and drawings of the 'Bosch 0603330703 ( PKS54CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

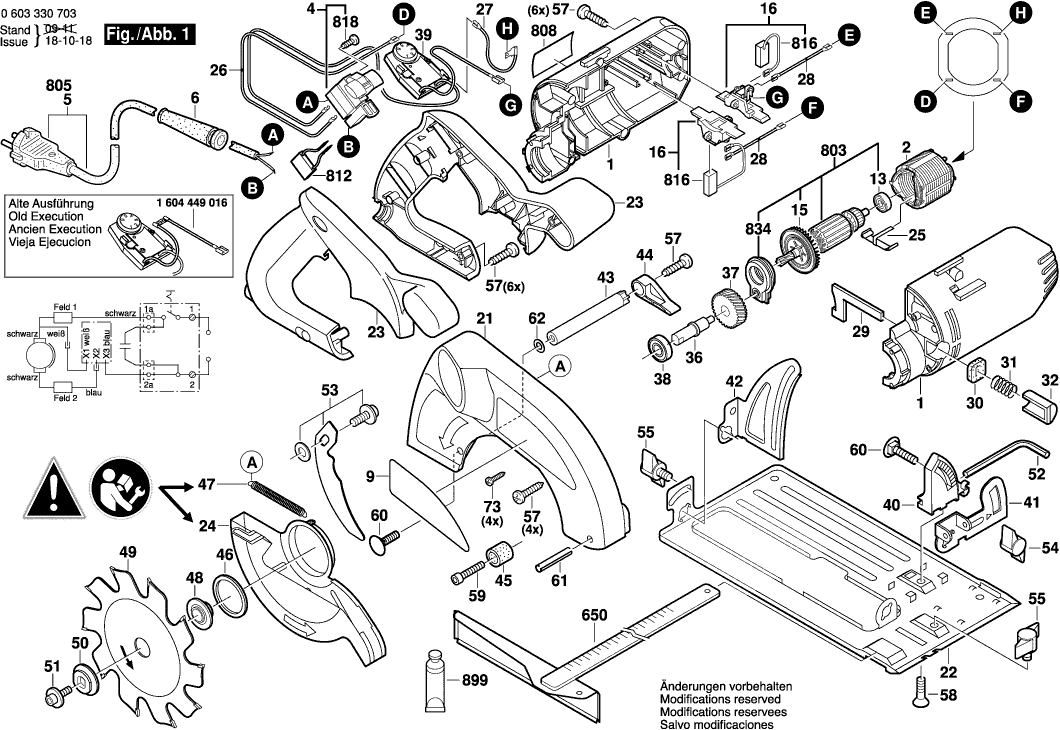

Technical drawing of model Bosch 0603330703 ( PKS54CE )

Spare parts list of model Bosch 0603330703 ( PKS54CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing GREEN
1 1605108206 15.71 19.01
Field 230V
2 1604220345 23.75 28.74
Switch
4 1607200198 12.41 15.02
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Manufacturer's nameplate PKS 54 CE
9 1601118B06 2.71 3.28
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
Fan
15 1606610144 2.24 2.71
Brush Plate
16 1604336043 6.54 7.91
Protective Cover
21 1605510298 44.82 54.23
No longer available, no replacement
22 1608000117
Handle
23 1605500216 15.71 19.01
Pivoting Blade Guard
24 1605510265 12.41 15.02
Contact Spring
25 1601290010 1.18 1.43
connecting piping
26 1604449018 1.70 2.06
Connecting Cable
27 1604449016 1.70 2.06
Connecting Cable
28 1604449013 1.18 1.43
Safety Catch
29 1601900005 1.70 2.06
Felt Seal
30 1601015033 1.18 1.43
Compression Spring
31 1604610018 1.18 1.43
No longer available, no replacement
32 1603231019
Drive Shaft
36 1603124133 7.58 9.17
Cylindrical Gear
37 1606320600 4.70 5.69
groove ball bearing 12x28x8
38 1600905031 5.33 6.45
Speed governor 230-240V
39 1607233143 44.82 54.23
Miter Square
40 1608190024 0.83 1.00
Bow
41 1601329031 1.70 2.06
Guide Bracket
42 1601329032 1.94 2.35
Spacer Tube
43 1600360004 1.94 2.35
Tensioning Lever
44 1602002006 1.18 1.43
Rubber Buffer
45 1600305002 1.18 1.43
Clamp ring
46 1600102024 1.70 2.06
Extension Spring
47 1604650010 0.83 1.00
No longer available, no replacement
48 1605703125
No longer available, no replacement
49 1608640084
Conical Spring Washer
50 1605703108 2.24 2.71
Hex Socket Head Cap Screw M6x14 MM
51 1603414007 1.18 1.43
Offset Screwdriver
52 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
52 2610364015 2.71 3.28
Riving Knife
53 1600025022 4.70 5.69
Hex Nut
54 2610387875 1.94 2.35
Wing Screw M6
55 1603480018 1.70 2.06
Screw 4x16
57 2603490022 0.83 1.00
Torx Oval-Head Screw 3x10
58 2603490017 1.70 2.06
Thread-forming tap. Screw M6x25 MM
59 1603414010 1.18 1.43
Round-Head Bolt DIN 603-M6x20
60 2910281201 0.83 1.00
Slotted Spring Pin 6x36 DIN 7346
61 2917780157 0.83 1.00
Plain Washer
62 2916011894 0.83 1.00
Torx Oval-Head Screw 3x10
73 2603490017 1.70 2.06
Parallel-Guide
650 2608005036 6.54 7.91
Armature With Fan 230V
803 1604010771 67.25 81.37
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Nameplate
808 160111A3H3 1.94 2.35
No longer available, no replacement
812 1607328028
Carbon-Brush Set
816 1607014176 10.73 12.98
Socket head cap screw M3x6,5-4.8
818 2603410001 1.18 1.43
Bearing Bracket
834 1605808070 9.53 11.53
Grease Tube 225 ML
899 1605430003 29.75 36.00
