Here you will find all available parts and drawings of the 'Bosch 0603223603 (PKS54CE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

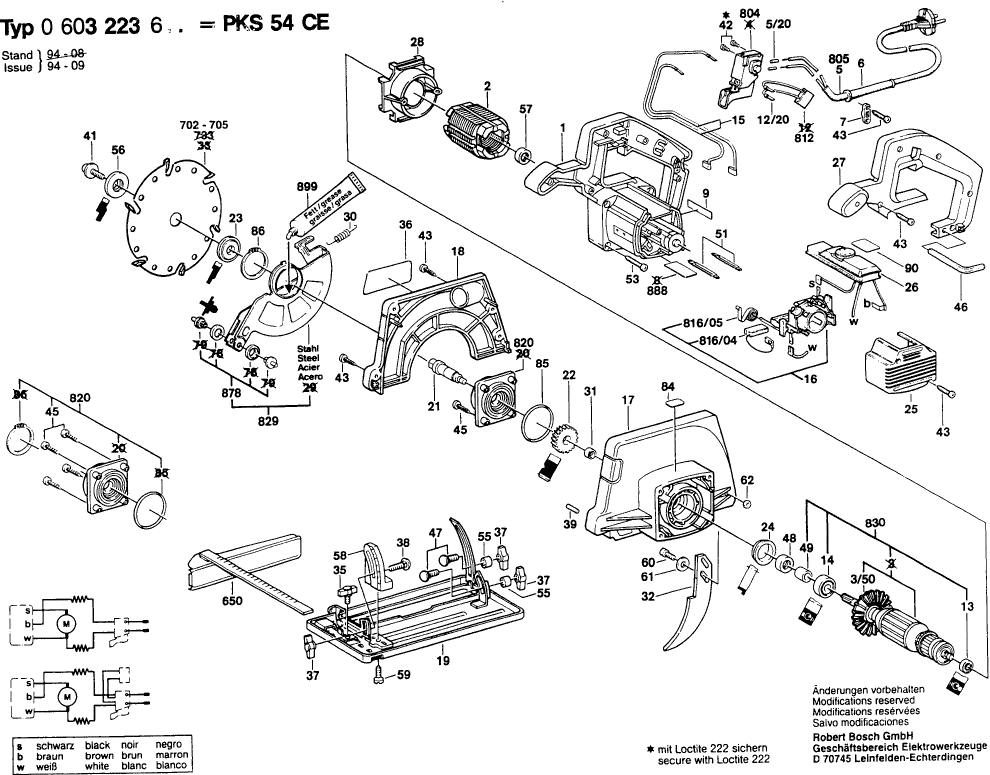

Technical drawing of model Bosch 0603223603 (PKS54CE)
Spare parts list of model Bosch 0603223603 (PKS54CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1605108135 | |||
| No information available, not orderable | ||||
| 2 | 1604220353 | |||
| No longer available, no replacement | ||||
| 3/50 | 3606610002 | |||
| End Splice | ||||
| 5/20 | 1900452012 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 6 | 1600703024 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 9 | 2601110601 | |||
| No information available, not orderable | ||||
| 12/20 | 2601355007 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 14 | 1610905009 | |||
| No longer available, no replacement | ||||
| 15 | 1604449012 | |||
| No longer available, no replacement | ||||
| 16 | 1604336024 | |||
| No information available, not orderable | ||||
| 17 | 1605806440 | |||
| No information available, not orderable | ||||
| 18 | 1605510206 | |||
| No longer available, no replacement | ||||
| 19 | 1608000106 | |||
| No longer available, no replacement | ||||
| 21 | 1603124114 | |||
| No longer available, no replacement | ||||
| 22 | 1606320079 | |||
| No longer available, no replacement | ||||
| 23 | 1605703097 | |||
| Intermediate Ring | ||||
| 24 | 1600221003 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 25 | 1605500156 | |||
| No information available, not orderable | ||||
| 26 | 1607233034 | |||
| No longer available, no replacement | ||||
| 27 | 1605500137 | |||
| No information available, not orderable | ||||
| 28 | 3600591002 | |||
| Extension Spring | ||||
| 30 | 1604650010 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 31 | 1600910020 | |||
| No longer available, no replacement | ||||
| 32 | 1600025017 | |||
| No information available, not orderable | ||||
| 34 | 1607328045 | |||
| Wing Screw | ||||
| 35 | 1603480018 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 36 | 1601110717 | |||
| Hex Nut | ||||
| 37 | 2610387875 | 2.40 | 2.90 | |
| Round-Head Bolt | ||||
| 38 | 2910281201 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 39 | 2917610130 | |||
| Hex Socket Head Cap Screw | ||||
| 41 | 1603414007 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 42 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 43 | 2912401019 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 45 | 1603435032 | |||
| Offset Screwdriver | ||||
| 46 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 46 | 2610364015 | 3.44 | 4.16 | |
| Round-Head Bolt | ||||
| 47 | 2910281203 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 48 | 1600290016 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 49 | 1600300092 | |||
| Blade terminal | ||||
| 51 | 1604477005 | 2.18 | 2.64 | |
| No information available, not orderable | ||||
| 53 | 2912401038 | |||
| Spacer Bushing | ||||
| 55 | 1600309010 | 2.40 | 2.90 | |
| Conical Spring Washer | ||||
| 56 | 1605703108 | 2.86 | 3.46 | |
| Intermediate Ring | ||||
| 57 | 1600502011 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 58 | 1608190010 | |||
| No longer available, no replacement | ||||
| 59 | 2910211017 | |||
| No information available, not orderable | ||||
| 60 | 2910141193 | |||
| Plain Washer | ||||
| 61 | 2916011013 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 62 | 2915011007 | 1.00 | 1.21 | |
| O-Ring | ||||
| 85 | 1600210038 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 86 | 2916650020 | |||
| No information available, not orderable | ||||
| 90 | 1601110656 | |||
| Parallel-Guide | ||||
| 650 | 2608005036 | 8.35 | 10.10 | |
| On-Off Switch | ||||
| 804 | 1607000231 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 812 | 1607328028 | |||
| No longer available, no replacement | ||||
| 816/04 | 1607014133 | |||
| No longer available, no replacement | ||||
| 816/05 | 2604652008 | |||
| No information available, not orderable | ||||
| 820 | 1607000243 | |||
| No longer available, no replacement | ||||
| 829 | 1605510170 | |||
| No longer available, no replacement | ||||
| 830 | 1604010348 | |||
| No longer available, no replacement | ||||
| 878 | 1607000205 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
| Grease Tube | ||||
| 899 | 1605430003 | 34.82 | 42.13 | |
