Here you will find all available parts and drawings of the 'Bosch 0603225003 (PKS40)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

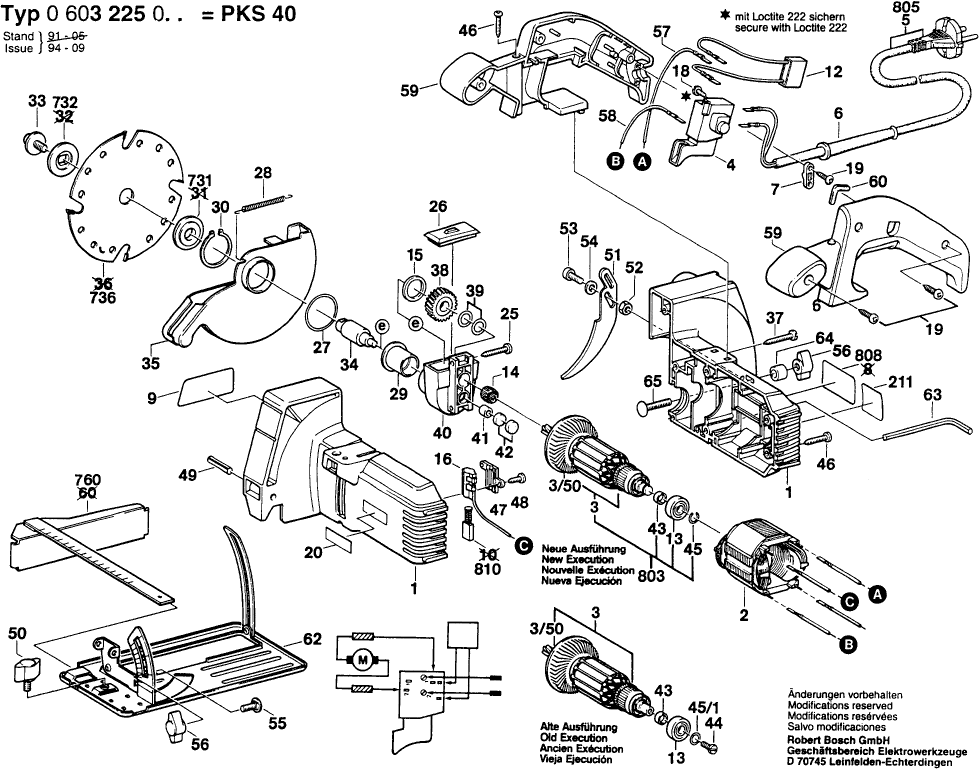

Technical drawing of model Bosch 0603225003 (PKS40)
Spare parts list of model Bosch 0603225003 (PKS40)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605190008 | 31.65 | 38.30 | |
| Field | ||||
| 2 | 2604220461 | 21.73 | 26.29 | |
| Fan | ||||
| 3/50 | 2606610050 | 4.18 | 5.06 | |
| Switch | ||||
| 4 | 2607200367 | 6.73 | 8.14 | |
| Grommet | ||||
| 6 | 2600703011 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 2601110667 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| Needle bearing | ||||
| 14 | 2600917001 | 2.38 | 2.88 | |
| Supporting Disc | ||||
| 15 | 2600102019 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 16 | 2604465054 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2912401019 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 20 | 2601110601 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 25 | 2603490025 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 26 | 2605500082 | 1.24 | 1.50 | |
| Shim | ||||
| 27 | 2600102017 | 1.24 | 1.50 | |
| Shim | ||||
| 27 | 2600102018 | 1.24 | 1.50 | |
| Extension Spring | ||||
| 28 | 1604650010 | 1.00 | 1.21 | |
| Sintered-Metal Bushing | ||||
| 29 | 2600328002 | 2.00 | 2.42 | |
| Spring retaining ring | ||||
| 30 | 2916650015 | 0.83 | 1.00 | |
| Hex Socket Head Cap Screw | ||||
| 33 | 1603414007 | 1.49 | 1.80 | |
| Drive Shaft | ||||
| 34 | 2603124031 | 10.34 | 12.51 | |
| No longer available, no replacement | ||||
| 35 | 2605510009 | |||
| Tapping Screw | ||||
| 37 | 2912401022 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 38 | 2606320037 | 11.65 | 14.10 | |
| Shim | ||||
| 39 | 2600100626 | 1.49 | 1.80 | |
| Shim | ||||
| 39 | 2600100627 | 1.49 | 1.80 | |
| Shim | ||||
| 39 | 2600100628 | 1.49 | 1.80 | |
| Gear Housing | ||||
| 40 | 2605806389 | 13.58 | 16.43 | |
| Sintered-Metal Bushing | ||||
| 41 | 1900301008 | 2.18 | 2.64 | |
| Lubricating Felt | ||||
| 42 | 1600005001 | 1.49 | 1.80 | |
| Spacer Ring | ||||
| 43 | 2600200026 | 1.24 | 1.50 | |
| Pan head screw | ||||
| 44 | 2910091118 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 45 | 2916011009 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 45 | 2916540004 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 46 | 2912401020 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 47 | 2601015054 | |||
| Tapping Screw | ||||
| 48 | 2912401006 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 49 | 2917780156 | 0.83 | 1.00 | |
| Wing Screw | ||||
| 50 | 1603480018 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 51 | 2600025004 | |||
| Hex Nut | ||||
| 52 | 2915011007 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 53 | 2910141196 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 54 | 2916011013 | 1.00 | 1.21 | |
| Round-Head Bolt | ||||
| 55 | 2910281196 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 56 | 2610387875 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 57 | 1604438018 | 1.49 | 1.80 | |
| Cable | ||||
| 58 | 1614431010 | 3.44 | 4.16 | |
| Handle | ||||
| 59 | 2605133004 | 11.94 | 14.45 | |
| Base Plate | ||||
| 62 | 2608000024 | 13.58 | 16.43 | |
| Offset Screwdriver | ||||
| 63 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 63 | 2610364015 | 3.44 | 4.16 | |
| Spacer Bushing | ||||
| 64 | 1600309010 | 2.40 | 2.90 | |
| Round-Head Bolt | ||||
| 65 | 2910281203 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 211 | 1601110265 | |||
| Dust Bag | ||||
| 701 | 1605411028 | 0.83 | 1.00 | |
| Fitting | ||||
| 702 | 1600499005 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 731 | 1605703083 | |||
| No longer available, no replacement | ||||
| 732 | 1605703082 | |||
| Parallel-Guide | ||||
| 760 | 2608005036 | 8.35 | 10.10 | |
| Armature With Fan | ||||
| 803 | 1604010646 | 43.21 | 52.28 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| Gear Housing | ||||
| 840 | 2607033000 | 47.68 | 57.69 | |
